07 · Engine

Removing the crankshaft pulley

Make
Alfa Romeo
Model
145/146 Engines, 146 Bodywork and Engine Overhaul Manual
Year
1994–2001
Section
Overhauling › Removing the crankshaft pulley
Engine overhaul: 1.7 16V Boxer (AR33401)Removing the crankshaft pulley

Removing the crankshaft pulley

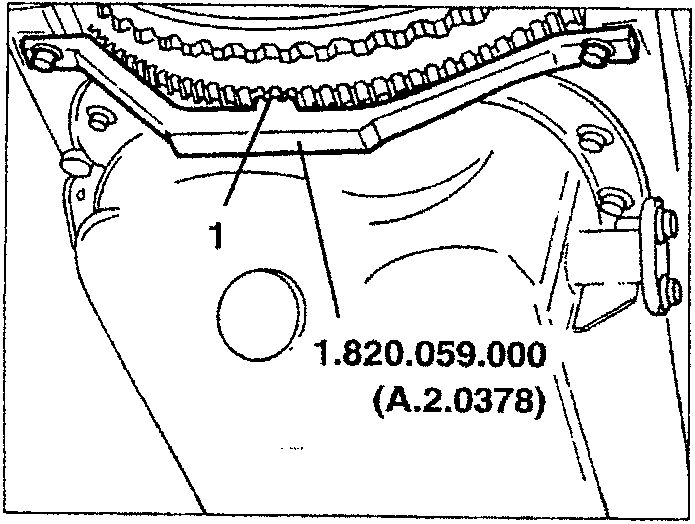

  1. Using tool N° 1.820.059.000 (A.2.0378), prevent the flywheel from turning.
Crankshaft pulley removal tool in place
  1. Slacken the fastening nut and remove the auxiliary drive pulley.
  2. Remove the right timing belt toothed pulley.
  3. Remove the spacer.
  4. Remove the left timing belt toothed pulley.
  5. Remove belt guide washer.

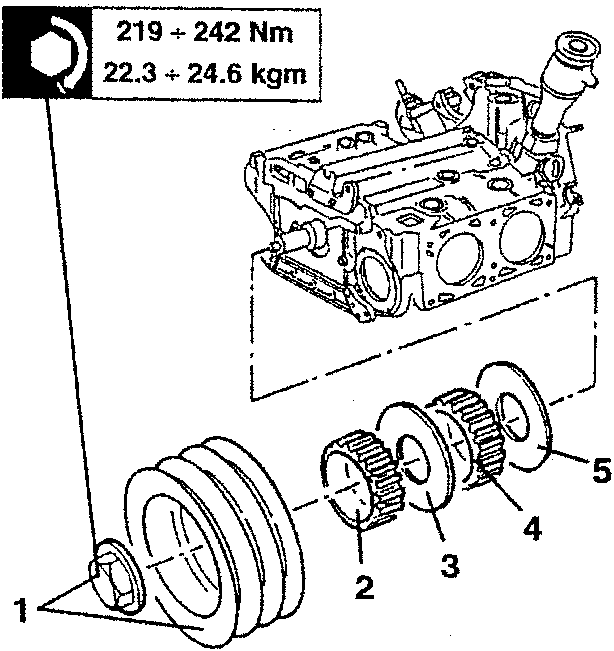

Crankshaft pulley components with torque values

219 ÷ 242 Nm
22.3 ÷ 24.6 kgm

Removing the oil sump and pump

  1. Slacken the fastening screws and remove the oil sump.
  2. Remove the seal.

Removing the front crankcase cover

  1. Slacken the fastening screws and nuts and remove the front crankcase cover.
  2. Remove the oil seal from the front cover.
  3. Remove the seal.

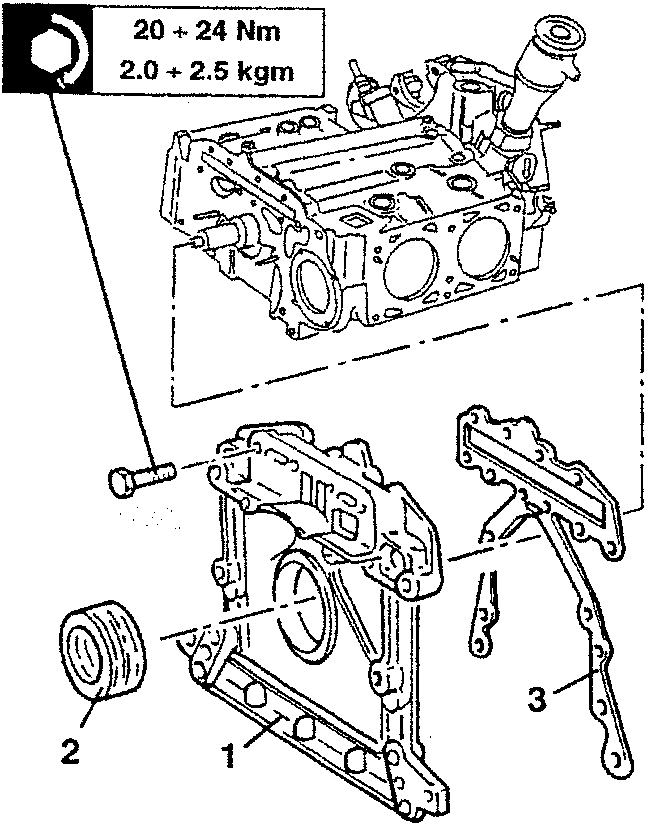

Front crankcase cover removal with torque values

20 ÷ 24 Nm
2.0 ÷ 2.5 kgm

Removing the oil pump

  1. Slacken the fastening screws and remove the oil pump.

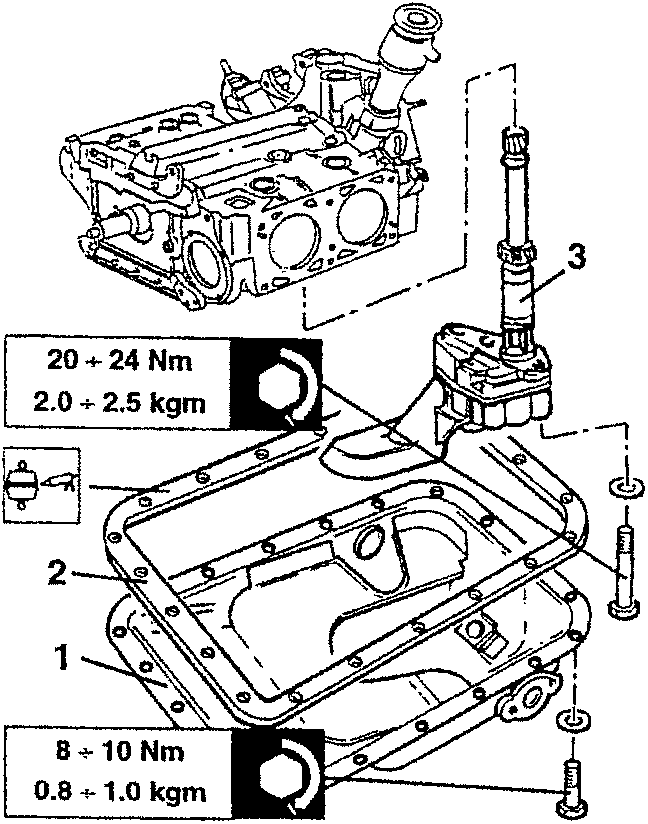

Oil pump removal with torque values

20 ÷ 24 Nm
2.0 ÷ 2.5 kgm

8 ÷ 10 Nm
0.8 ÷ 1.0 kgm
