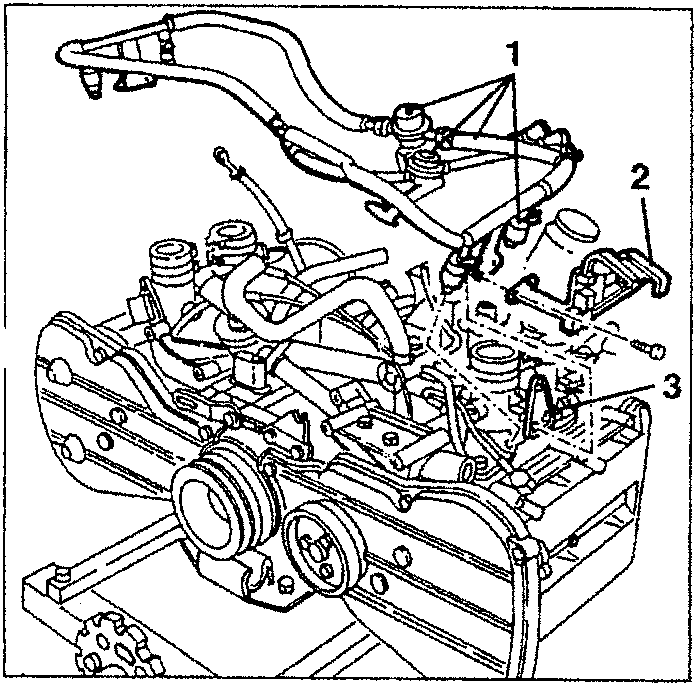

Removing the thermostat unit

1. Slacken the screws fastening the fuel manifold support brackets and remove it complete with injectors, pulse damper and pressure regulator.
2. Retrieve the cable and hose support bracket.
3. Retrieve the engine lifting brackets.

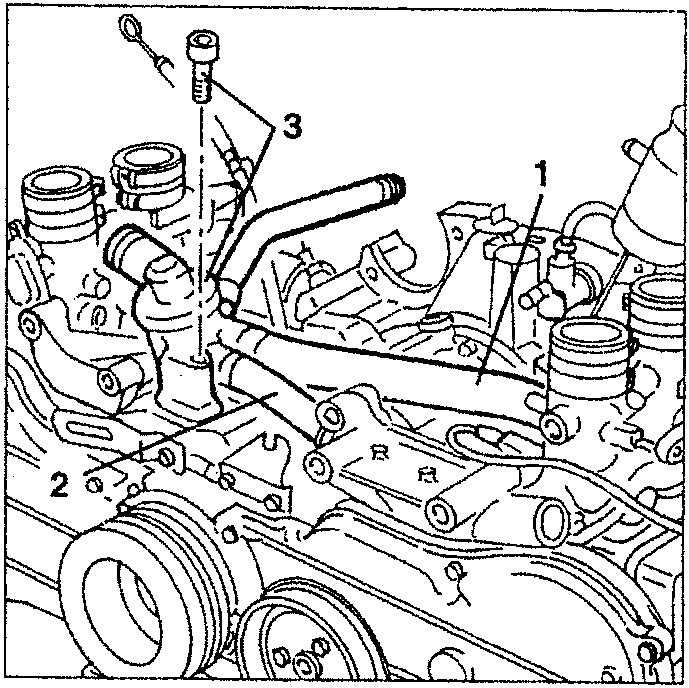

Removing the thermostat unit

1. Disconnect the coolant outlet hoses from the intakes.
2. Disconnect the thermostat unit connection pipe from the pump coolant inlet union.
3. Slacken the fastening screw and remove the thermostat unit complete with hoses.

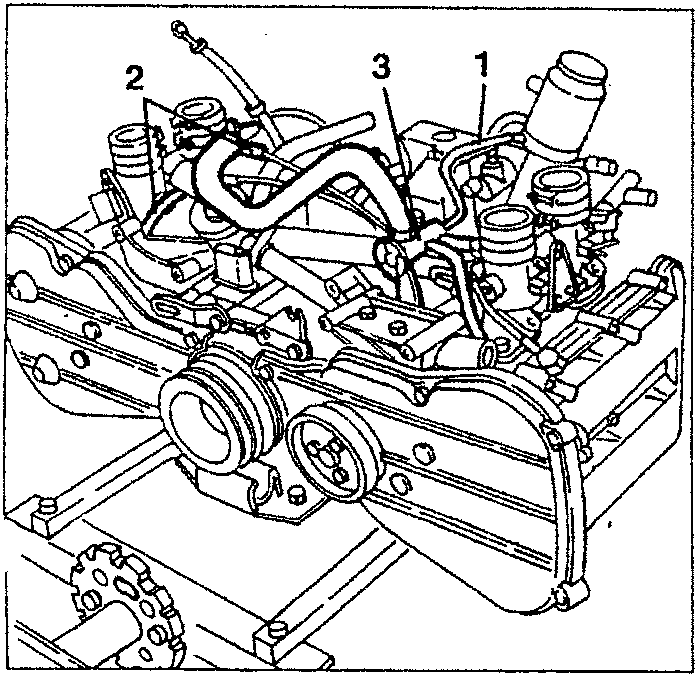

Removing the idle air distributor

1. Disconnect the oil vapour recirculation pipe from the separator.
2. Disconnect the additional air hoses for idle speed from the intakes.
3. Slacken the fastening screw and remove the idle air distributor complete with hoses.

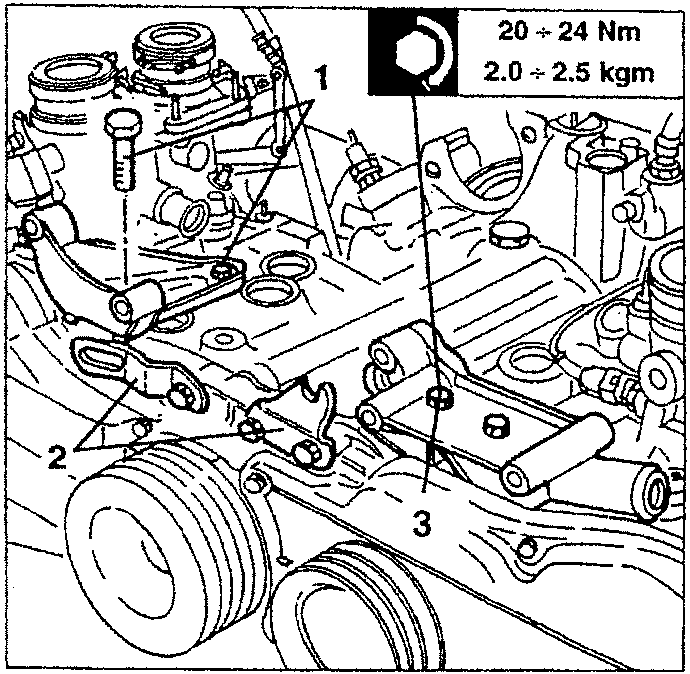

Removing the brackets

1. Slacken the fastening screws and remove the power steering pump support bracket.
2. Slacken the fastening screws and remove the alternator support bracket.
3. Slacken the fastening screws and remove the water pump inlet union and conditioner compressor support; retrieve the seal.

20 ÷ 24 Nm
2.0 ÷ 2.5 kgm
