Crankshaft axial play

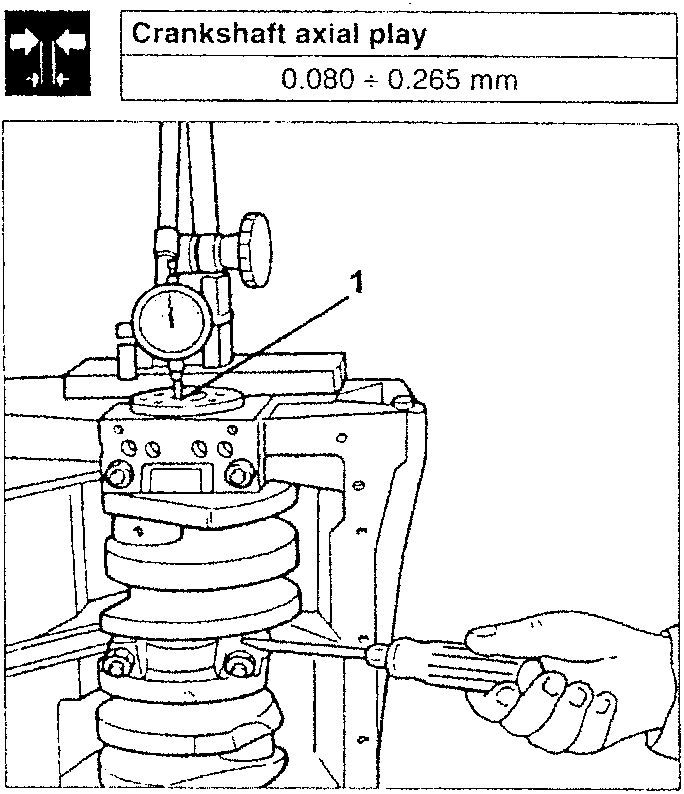

CRANKSHAFT AXIAL PLAY

1. Check whether crankshaft axial play falls within prescribed values by means of a centesimal gauge applied with its magnetic base.

CYLINDER LINER, PISTON AND CONNECTING ROD REFITTING

• Clean the cylinder liners carefully, fit the seals and insert in the crankcase. Make sure they reach the end of the stroke.

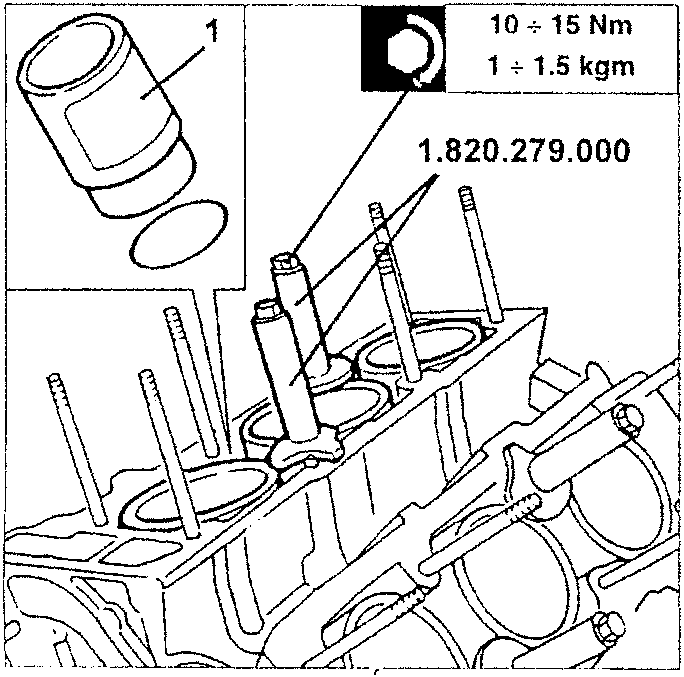

1. Lock the cylinder liners in the crankcase with the liner retainer tools no. 1.820.279.000 and fasten the respective nuts at the prescribed torque.

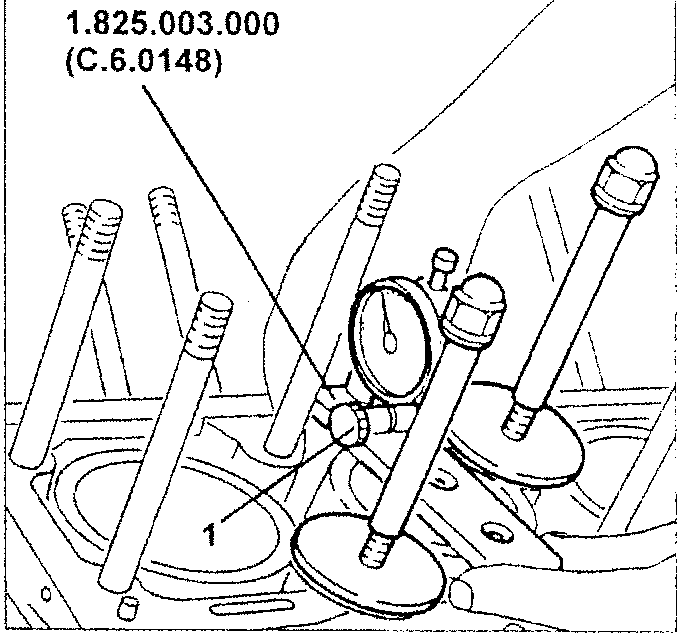

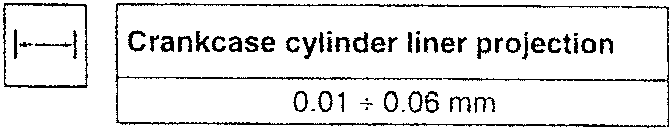

1. Fit tool no. 1.825.003.000 (C.6.0148) and the reset centesimal gauge on the crankcase. Position one side and then the other so that the feeler is in contact with the cylinder liner edges. Check the projection falls within the prescribed values.

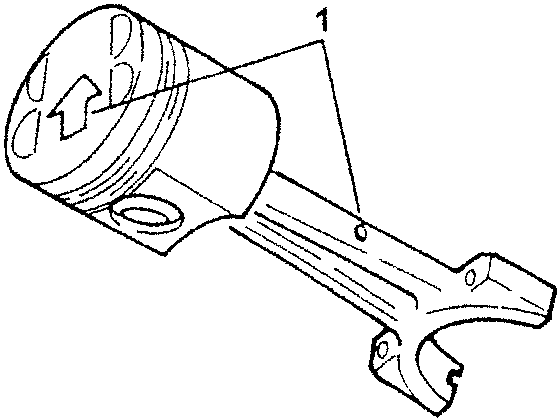

1. Couple the pistons and their respective connecting rods. Make sure the arrow printed on the top of the piston is facing the direction shown in the figure with respect to the lubrication hole on the side of the connecting rod.

• Fit the gas rings and the oil scraper on the piston with a suitable tool.

NOTE: After refitting, address the gas ring cuts so that they do not coincide with the journal axis and at 120° one from the other.
