REMOVING THE OIL PUMP

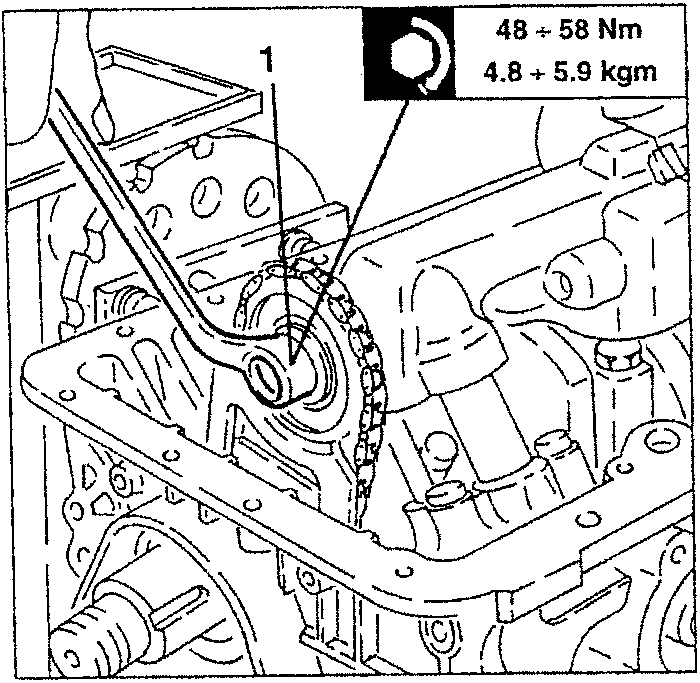

  1. Using as stopper the flywheel stopper tool installed previously, slacken the screw fastening the oil pump drive gear.
Illustration showing a flywheel stopper tool being used to slacken a screw on an oil pump drive gear. Torque specification is shown: 48 ÷ 58 Nm, 4.8 ÷ 5.9 kgm.

48 ÷ 58 Nm
4.8 ÷ 5.9 kgm

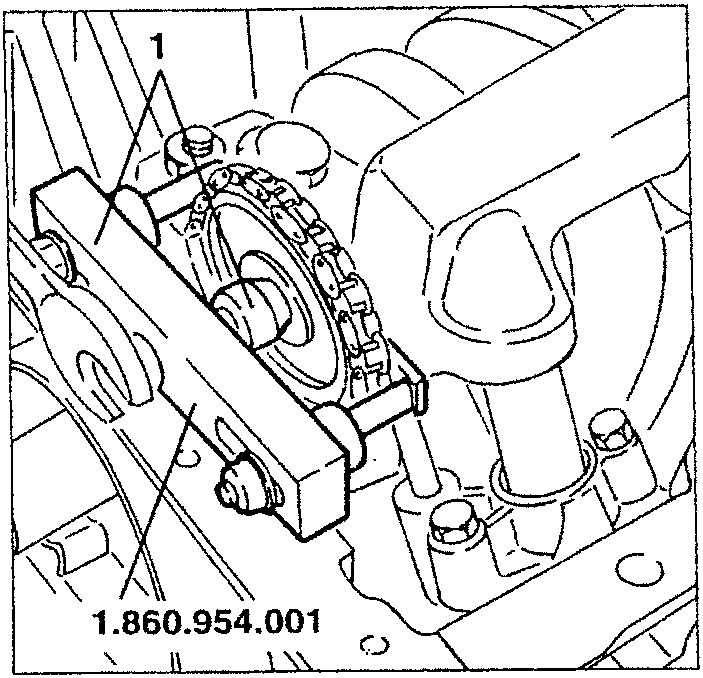

  1. Using tool no. 1.860.954.001 remove the drive gear from the oil pump spindle.
Illustration showing a tool (numbered 1.860.954.001) being used to remove a drive gear from an oil pump spindle.

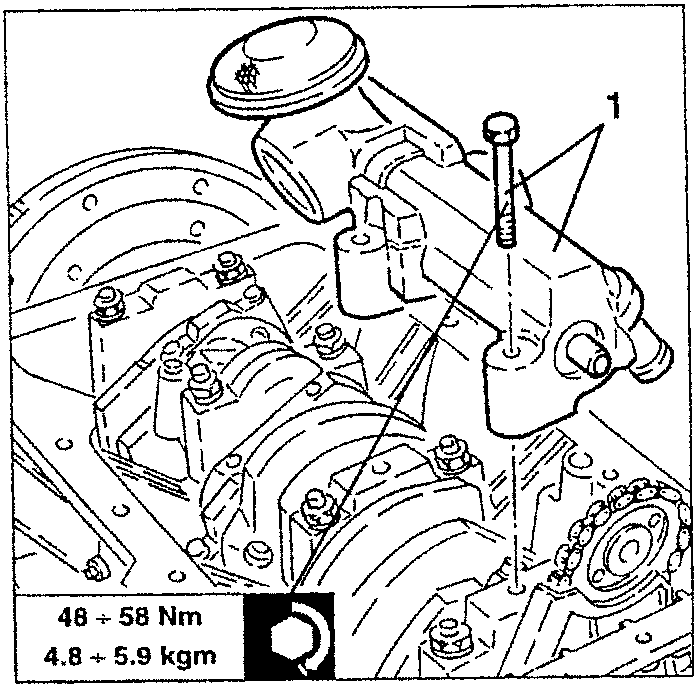

  1. Slacken the fastening screws and remove the complete oil pump, freeing it from the drive gear.
Illustration showing the removal of an oil pump by slackening screws. Torque specification is shown: 48 ÷ 58 Nm, 4.8 ÷ 5.9 kgm.

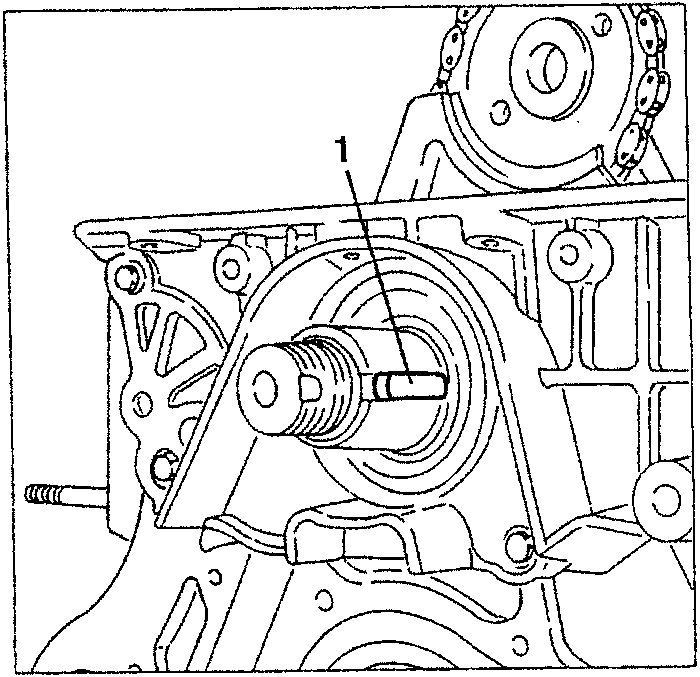

  1. Remove the key for the timing gear belt drive pulley from the crankshaft using a flat punch.
Illustration showing a flat punch being used to remove a key from a crankshaft.
