Removing the cylinder heads

Make

Alfa Romeo

Model

145/146 Engines, 146 Bodywork and Engine Overhaul Manual

Year

1994–2001

Section

Overhauling › Removing the cylinder heads

Engine overhaul: 3.0 V6 24V (AR16102)Removing the cylinder heads

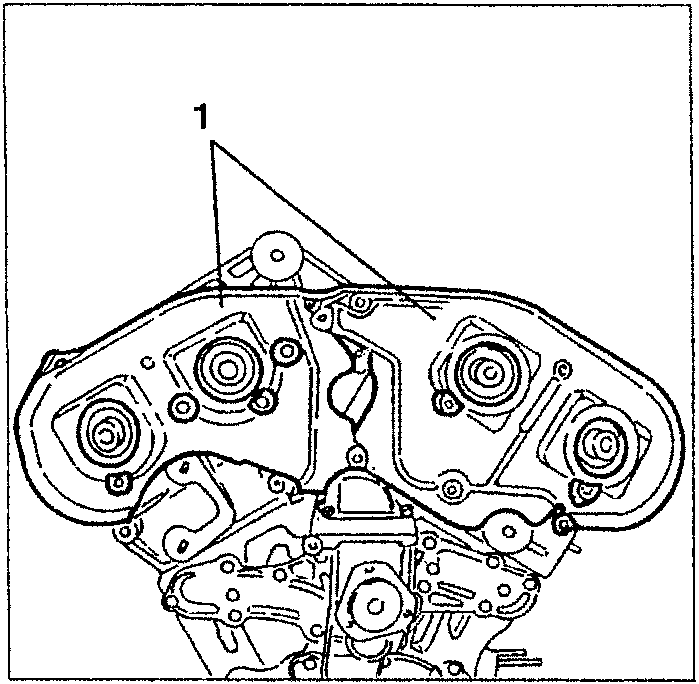

1. Slacken the fastening screws and remove the timing gear belt inner protections.

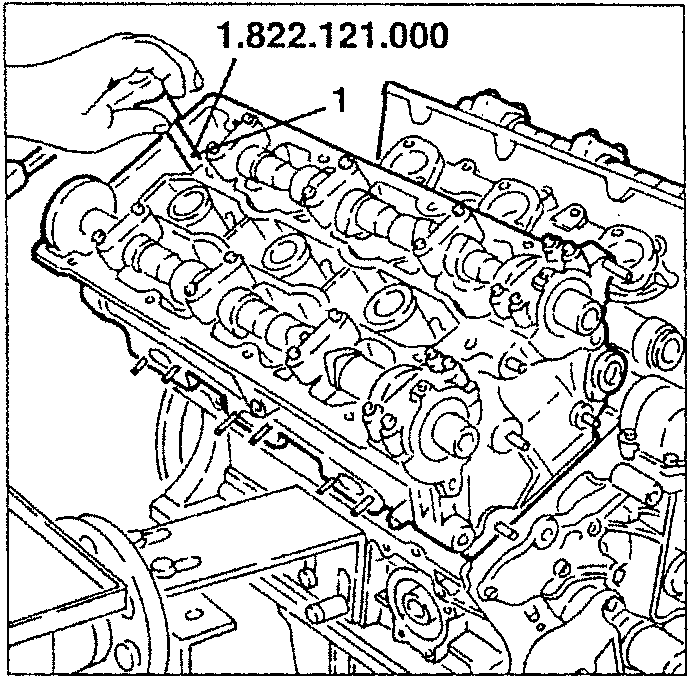

1. Using wrench no. 1.822.121.000 slacken the nuts fastening the cylinder heads and remove them.
   - Remove the corresponding seals.

REMOVING THE CYLINDER HEADS

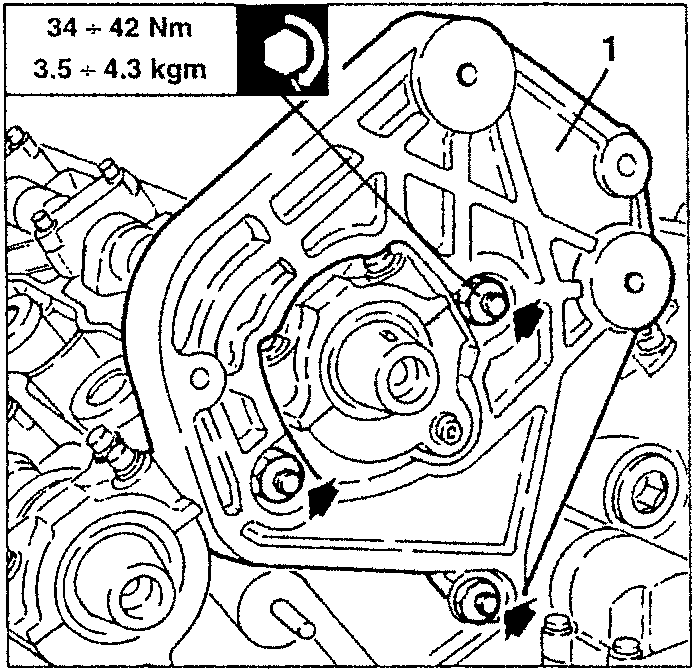

1. Slacken the fastening nuts and remove the engine stay rod support bracket.

34 ÷ 42 Nm
3.5 ÷ 4.3 kgm

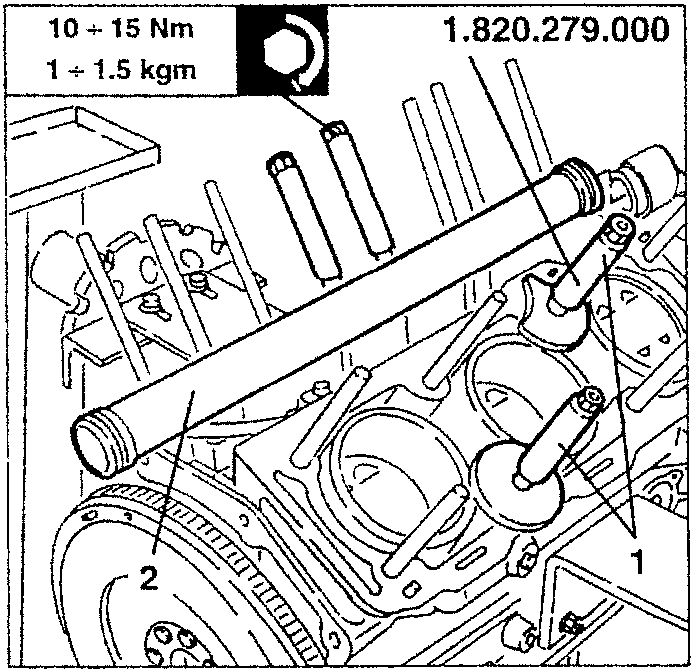

1. Install the liner stopper tools no. 1.820.279.000.
   2. Withdraw the manifold for returning coolant fluid to the pump.

10 ÷ 15 Nm
1 ÷ 1.5 kgm
