REMOVING THE ALTERNATOR

  1. Slacken the tension on the auxiliary components drive belt as illustrated and lock the belt tensioner in this position using a special peg.
  2. Prise and remove the auxiliary components drive belt.
  3. Slacken the fastening screw and remove the lower guide pulley.

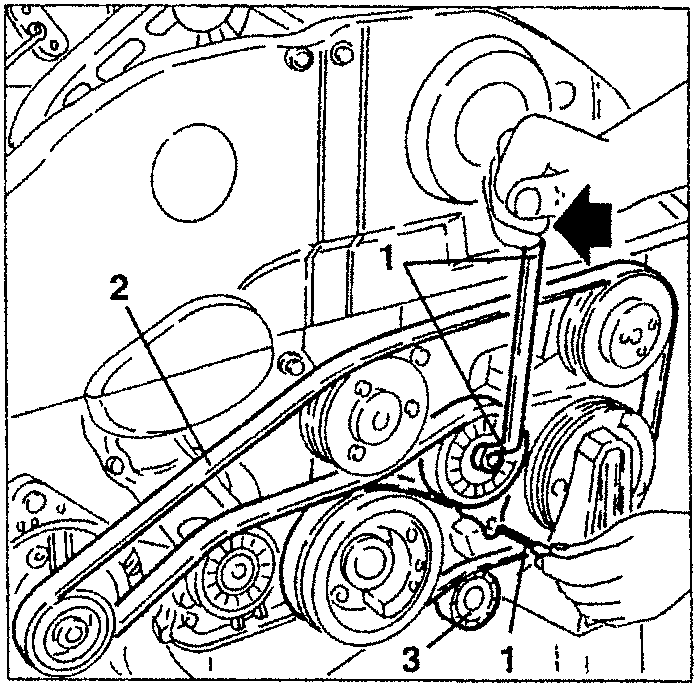

Illustration showing hands slackening tension on a drive belt with numbered parts 1, 2, and 3
  1. alternator
  2. auxiliary components drive belt
  3. lower guide pulley
  4. Slacken the two fastening bolts and remove the alternator.

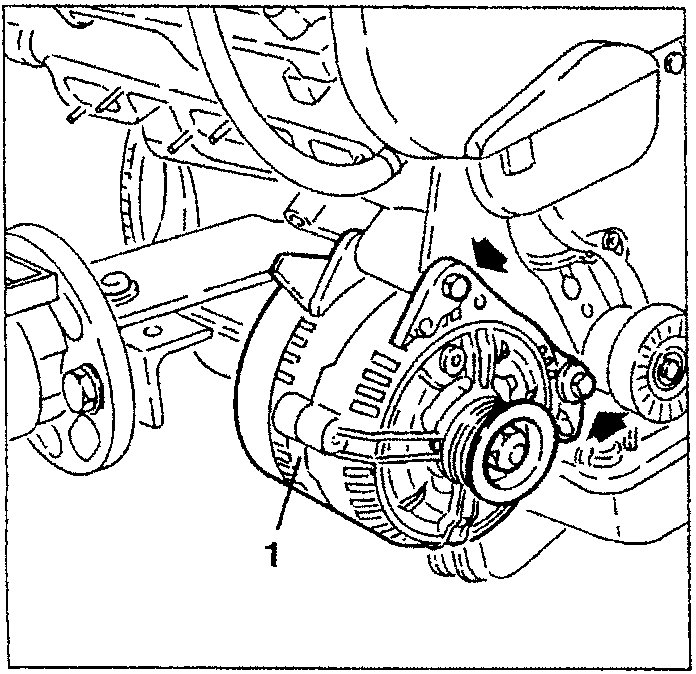

Illustration showing an alternator with numbered part 1, being removed by loosening bolts
  1. Slacken the fastening screw and remove the alternator support bracket.

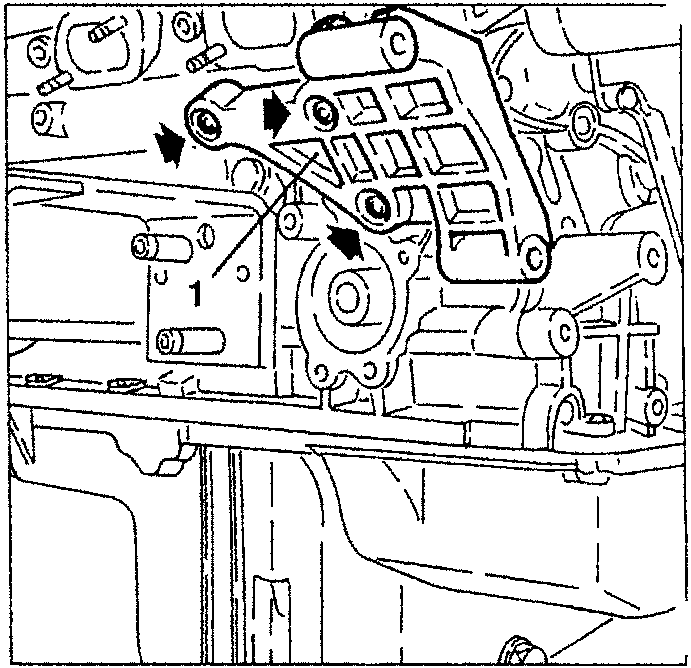

Illustration showing a fastening screw being slackened to remove an alternator support bracket, with numbered part 1
  1. Slacken the fastening screw and remove the auxiliary components drive belt guide pulley.
  2. Slacken the fastening screws and remove the spacer bracket.

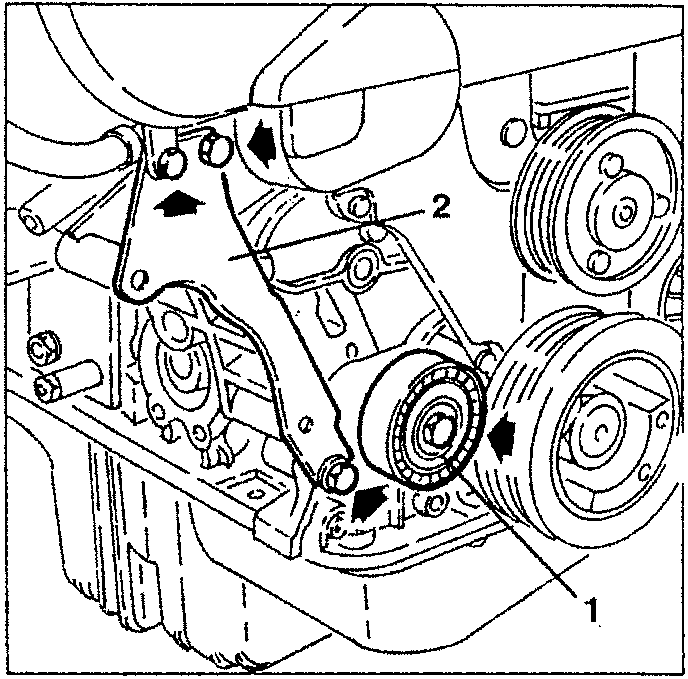

Illustration showing a pulley system with numbered parts 1 and 2, indicating removal of components
