Engine overhaul: 3.0 V6 24V (AR16102)Removing the water pump

REMOVING THE WATER PUMP

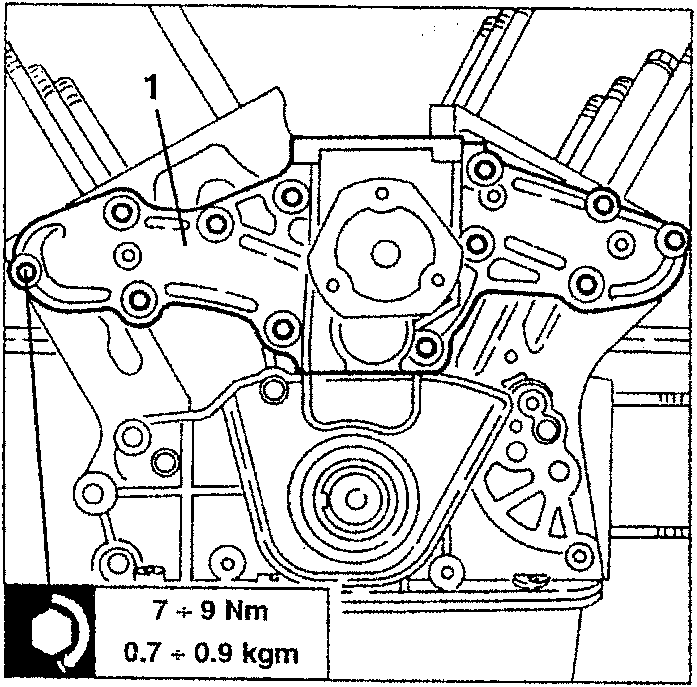

1. Slacken the fastening screws and remove the water pump.

• Remove the corresponding seal.

7 ÷ 9 Nm
0.7 ÷ 0.9 kgm

REMOVING THE OIL SUMP

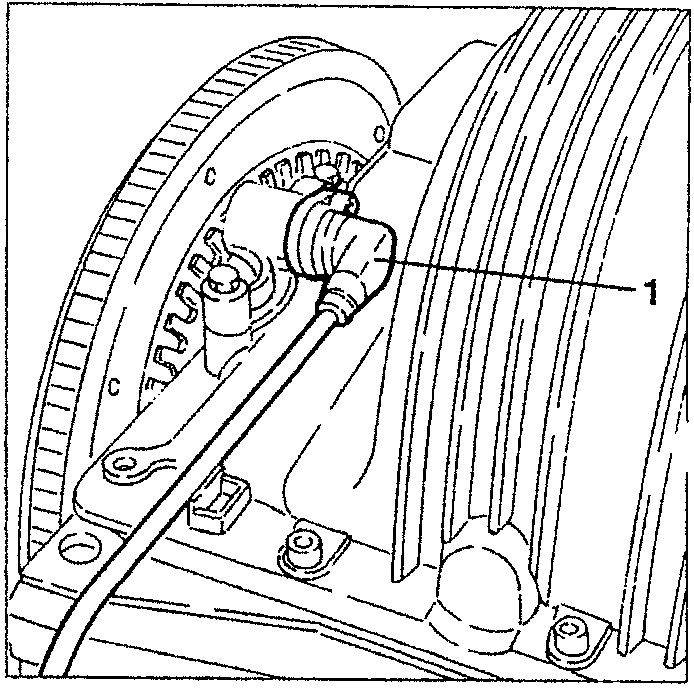

1. Turn the engine on the overhauling stand, slacken the fastening screw and remove the rpm and timing sensor.

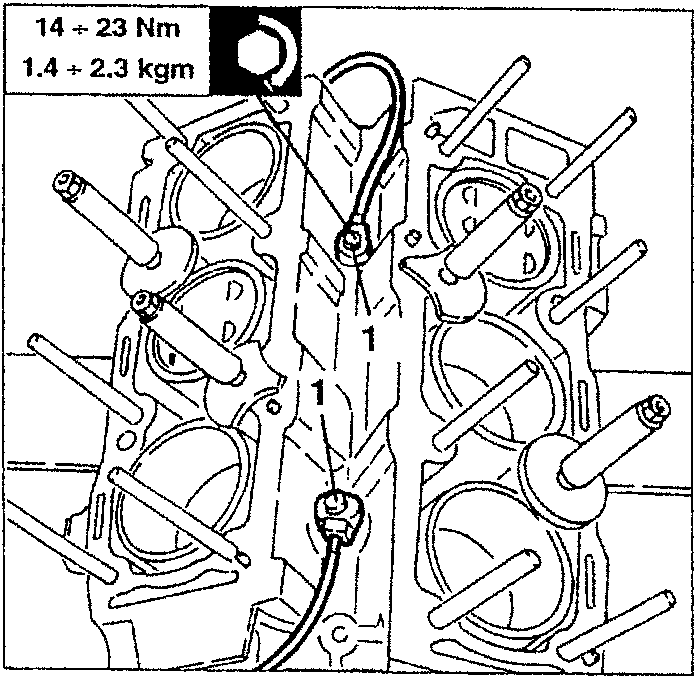

1. Slacken the fastening screws and remove the two pinging sensors.

4 ÷ 23 Nm
1.4 ÷ 2.3 kgm

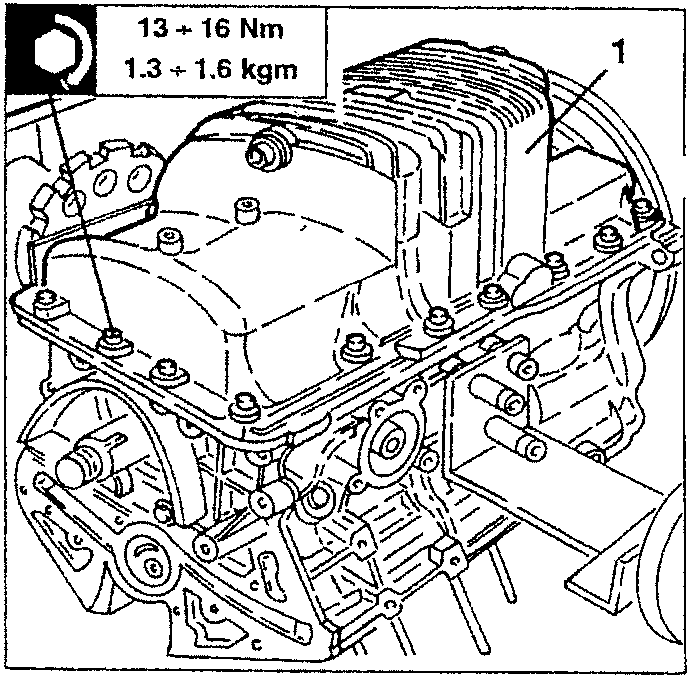

1. Slacken the fastening screws and remove the oil sump.

13 ÷ 16 Nm
1.3 ÷ 1.6 kgm
