Engine overhaul: 3.0 V6 24V (AR16102)Timing belt removal · page 1 of 3

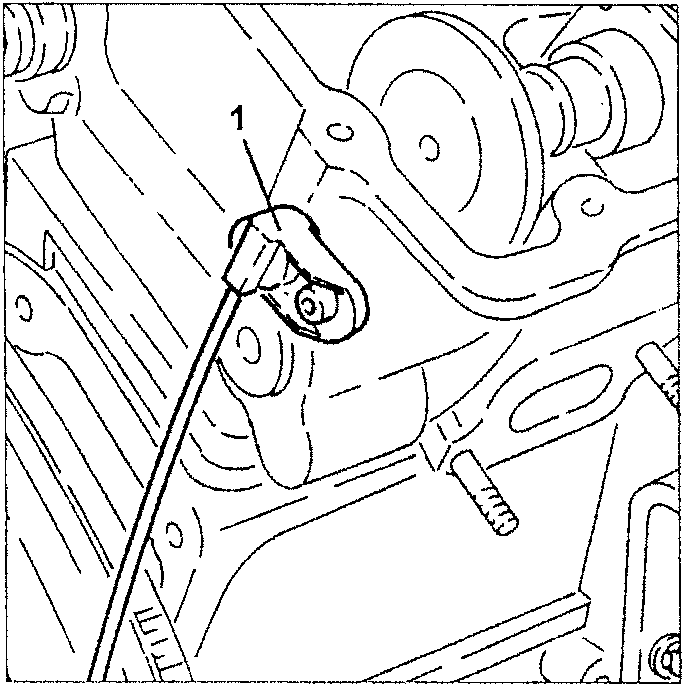

- Loosen the fastening screw and remove the cam angle sensor.
TIMING BELT REMOVAL

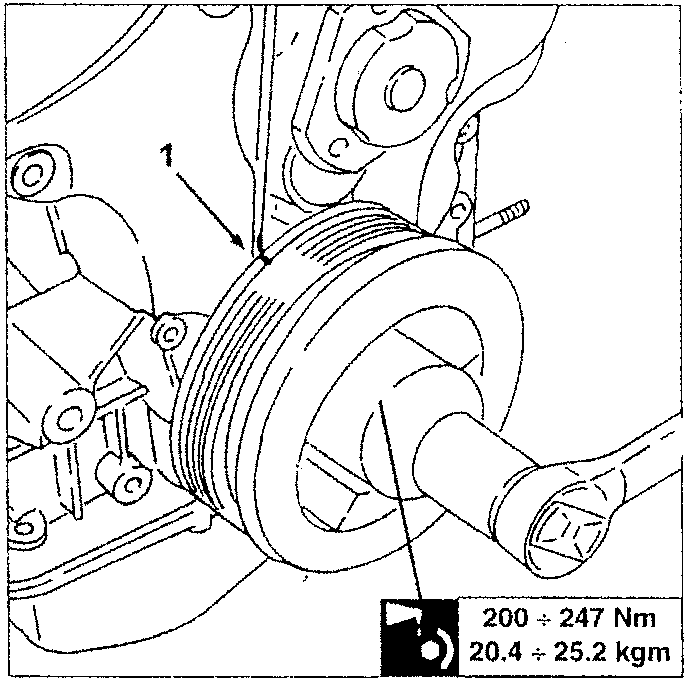

- Move the auxiliary unit drive pulley as shown in the figure and take the engine to DTC first cylinder firing stroke: in this position the pulley notch is aligned with the fixed reference mark.
200 ÷ 247 Nm
20.4 ÷ 25.2 kgm

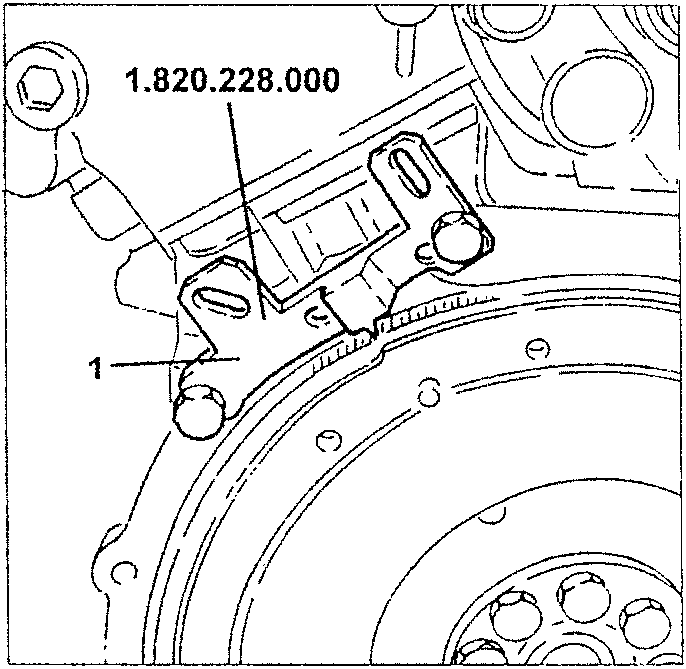

- Fit the flywheel retainer tool no. 1.820.228.000 as shown in the figure.
