Engine overhaul: 3.0 V6 24V (AR16102)Timing belt removal · page 2 of 3

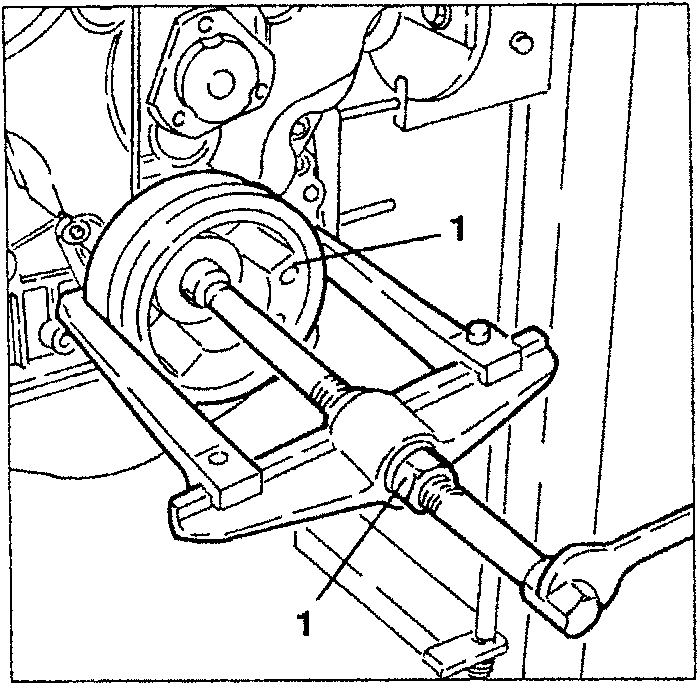

- Slacken the fastening nuts and remove the auxiliary components drive pulley.
NOTE: If this operation proves to be difficult, use a universal puller tool.
- part name

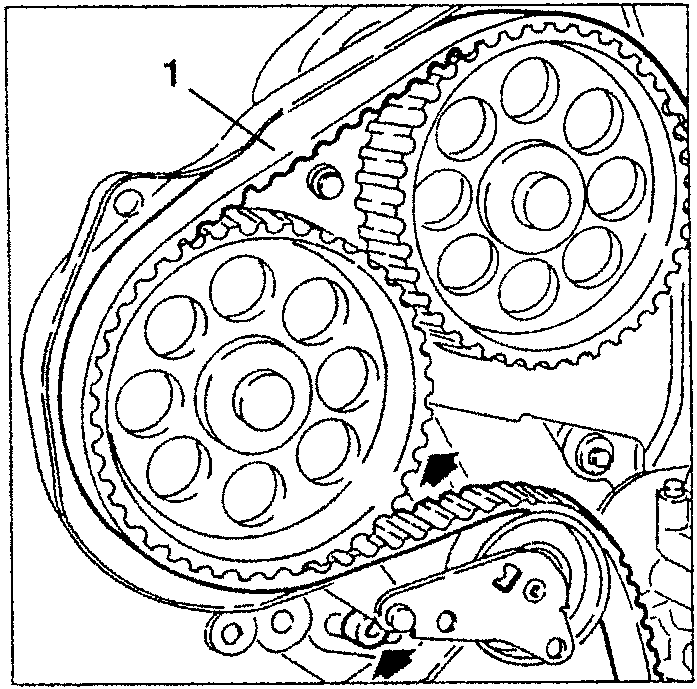

- Slacken the belt tensioner fastening screws, then prise and remove the timing gear drive belt.
- part name

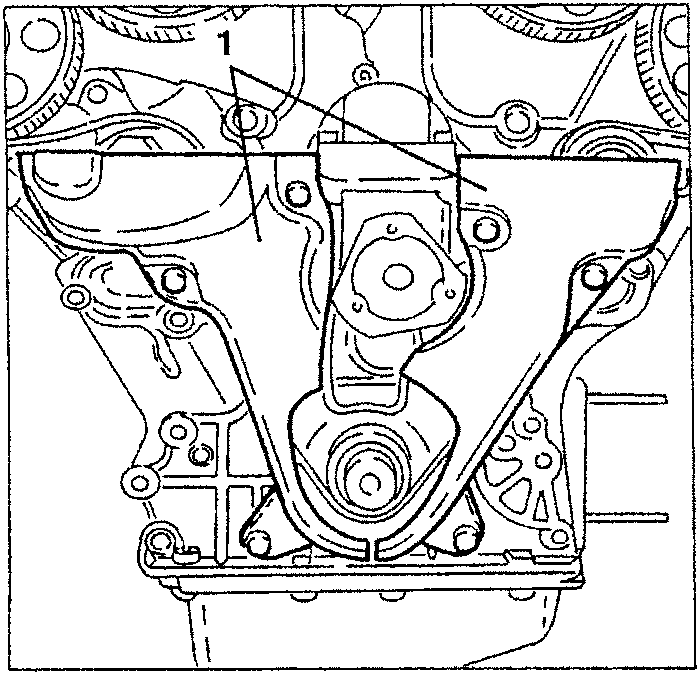

- Slacken the fastening screws and remove the lower timing gear belt guards.
- part name

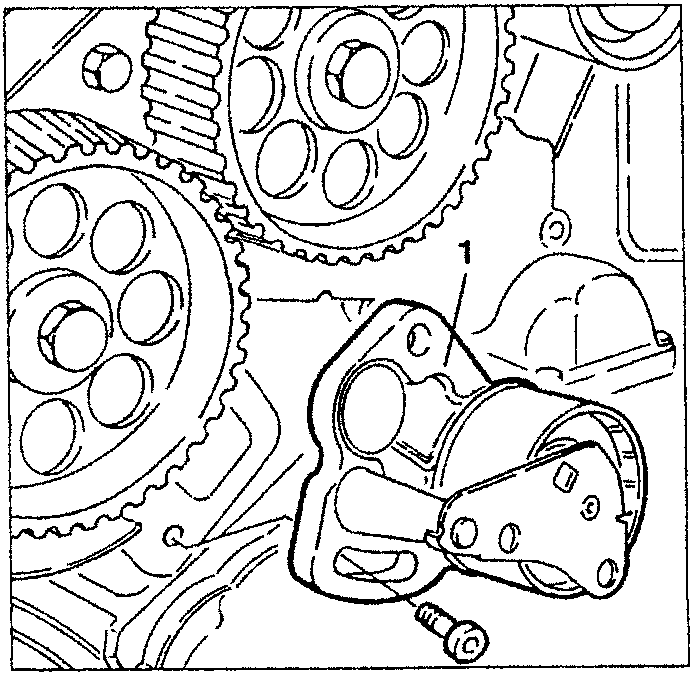

- Slacken the fastening screws completely and remove the timing gear drive belt tensioner.
- part name
