Engine overhaul: 3.0 V6 24V (AR16102)Timing belt removal · page 3 of 3

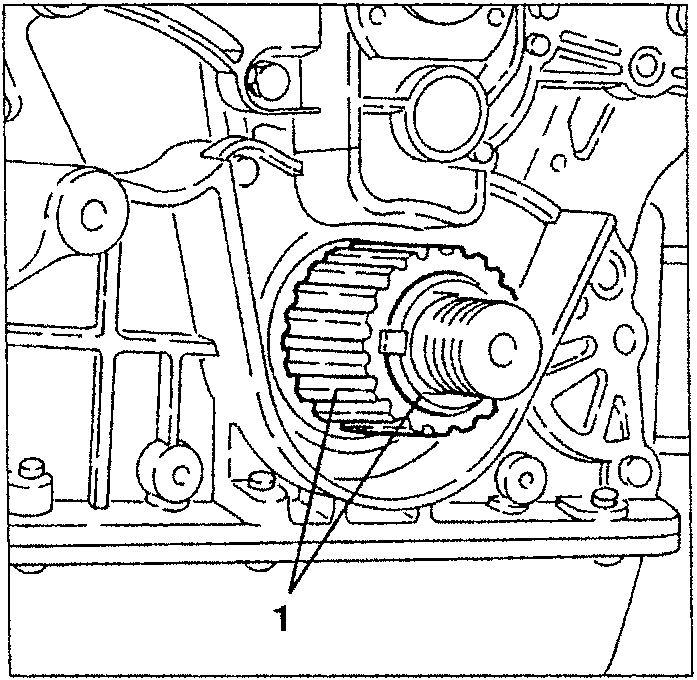

  1. Withdraw the timing gear drive belt complete with thrust ring.

NOTE: When refitting, the convex surface of the thrust ring must be turned to the crankcase front cover.

Timing gear drive belt and thrust ring removal

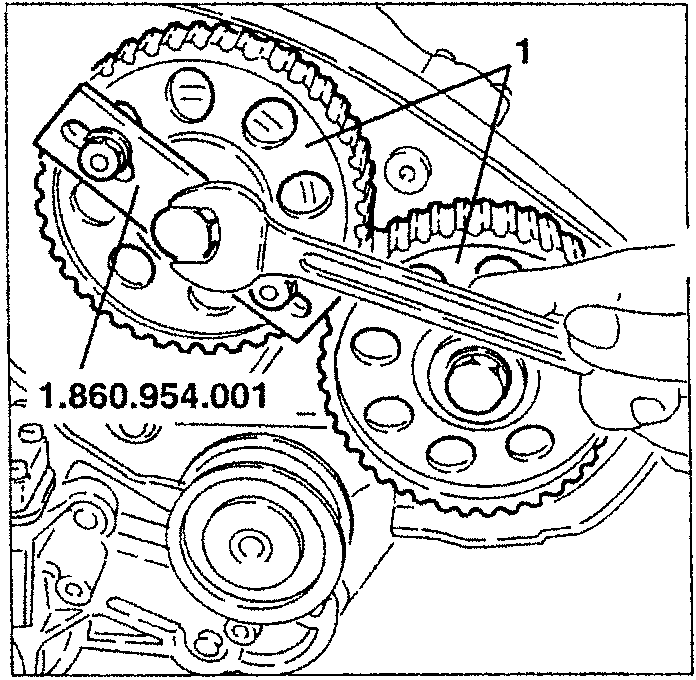

  1. Remove the camshaft drive pulleys using puller tool no. 1.860.954.001.

NOTE: The hooking ends of the tool have different profiles so that they can be used for the pulleys of both heads. Suitably turn the hooking ends to adapt them to the different profiles of the pulleys.

Camshaft drive pulley removal with puller tool

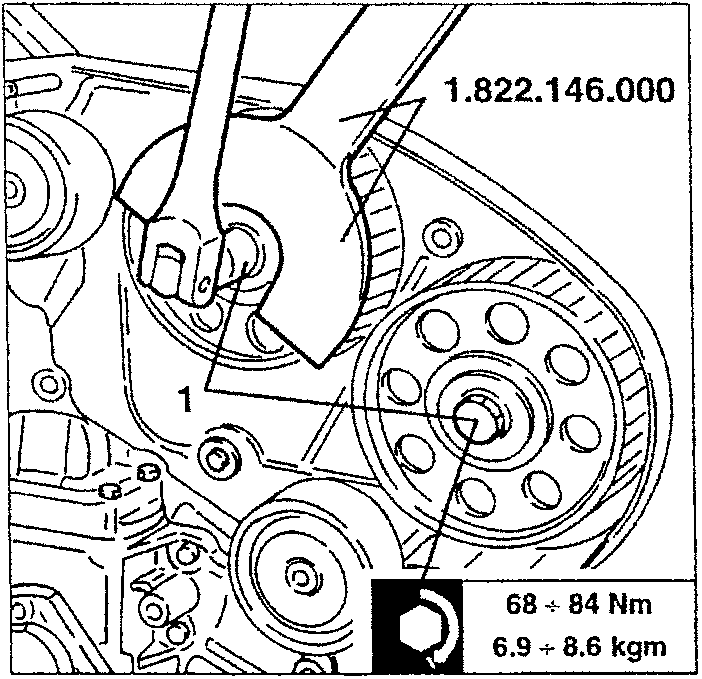

  1. Slacken the fastening screws of the camshaft drive pulleys levering with tool no. 1.822.146.000.
Slackening camshaft drive pulley screws with lever tool

68 ÷ 84 Nm
6.9 ÷ 8.6 kgm

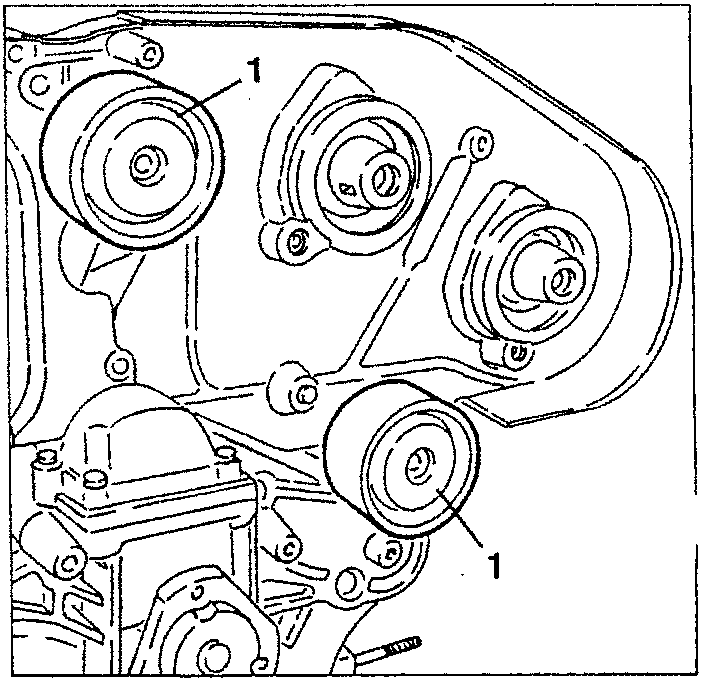

  1. Slacken the fastening screws and remove the two fixed guide pulleys of the timing gear drive belt.
Removing fixed guide pulleys of timing gear drive belt
