Technical data and maintenanceChanging the timing gear drive belts · page 2 of 4

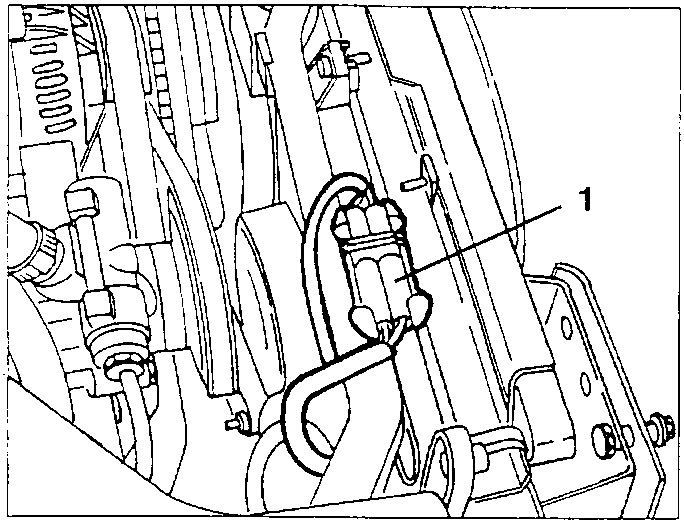

1. Remove the electrical connection withdrawing it from the support above the cooling radiator.

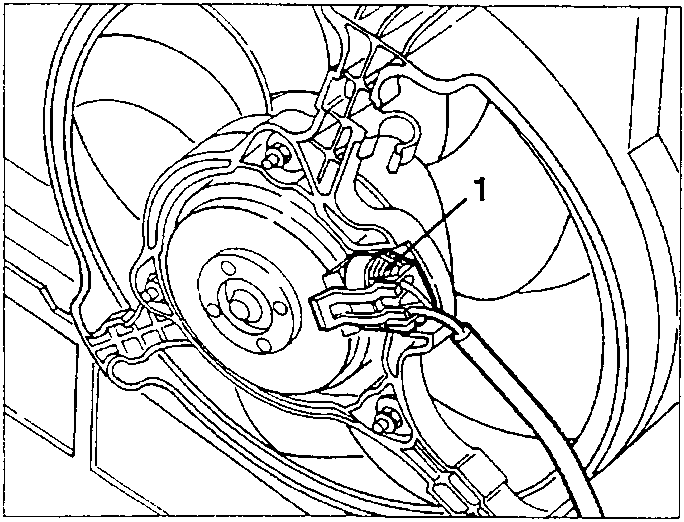

1. Disconnect the electrical connections supplying the cooling fans.

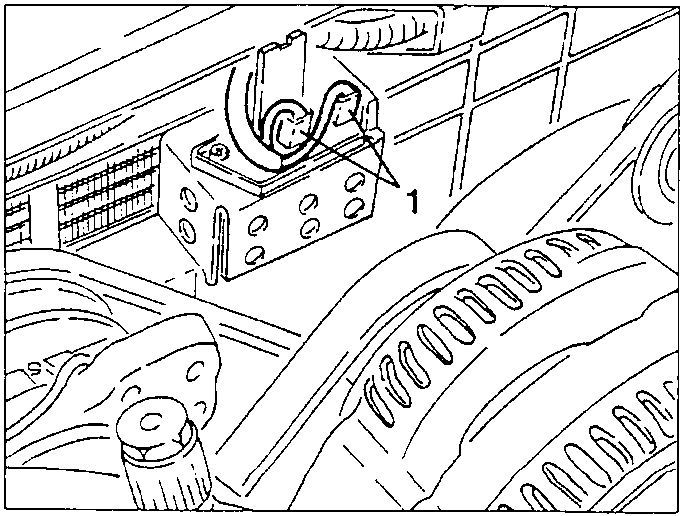

1. Disconnect the electrical connections from the cooling fan speed coil.

• Free the electrical cables from the radiator.

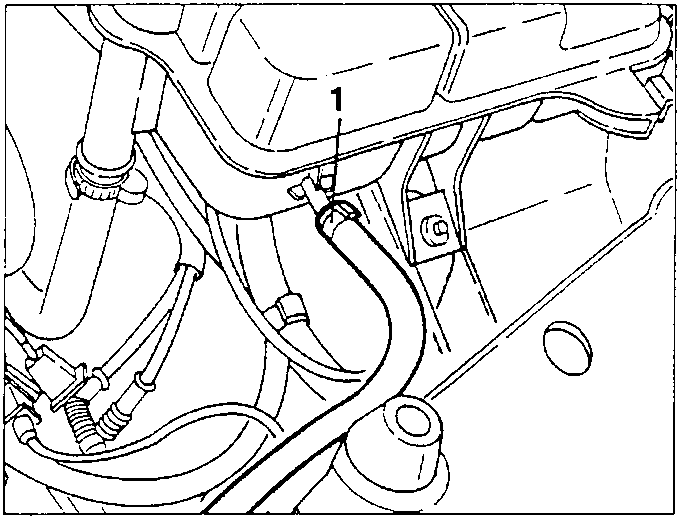

1. Disconnect the radiator connection pipe from the header tank.

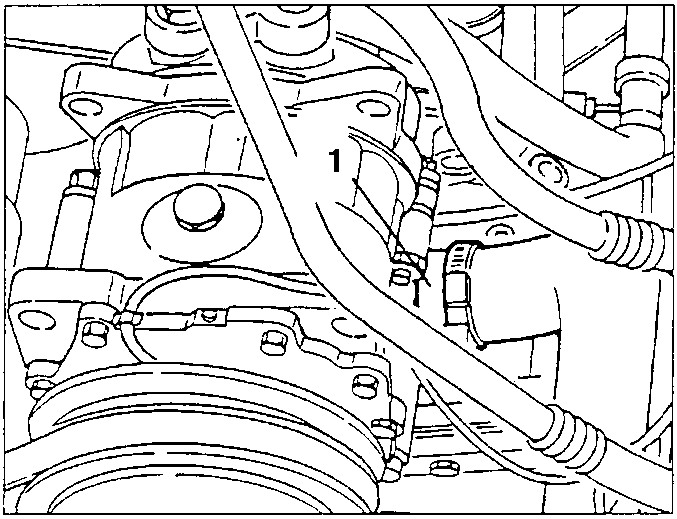

1. Disconnect the radiator coolant outlet sleeve from the connection on the crankcase.

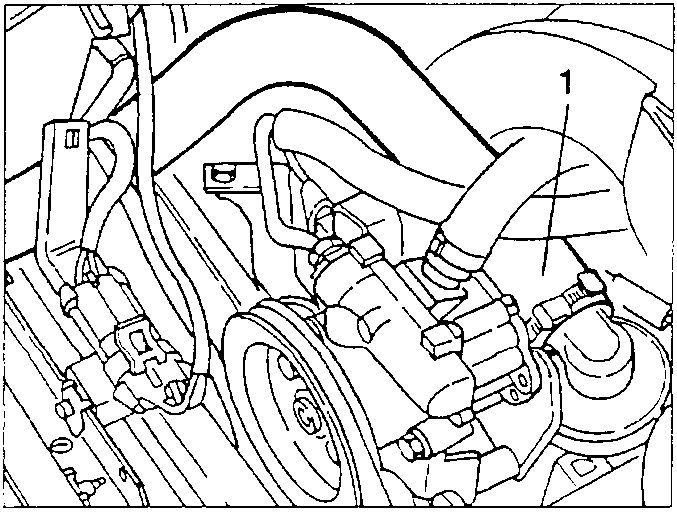

1. Disconnect the radiator coolant delivery pipe from the thermostatic cup.
