Alfa Romeo 145/146 Factory Service Manual (1994-1999)02 · Technical data and maintenance
02 · Maintenance

Changing the timing gear drive belts (page 3 of 4)

Make
Alfa Romeo
Model
145/146 Factory Service Manual
Year
1994–1999
Section
Maintenance
Technical data and maintenanceChanging the timing gear drive belts · page 3 of 4
  1. Disconnect the two electrical connections of the fan control thermal contact.
  2. Disconnect the fluid inlet and outlet hoses from the conditioner condenser.

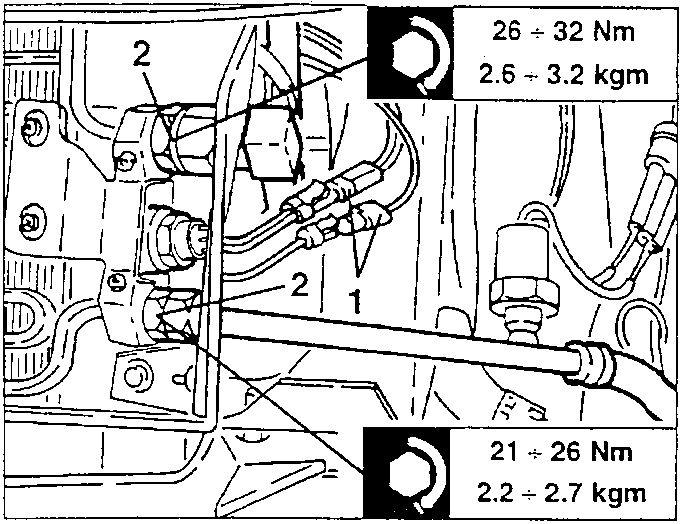

Fan control thermal contact connections 1 and condenser hoses 2, with tightening torques 26 ÷ 32 Nm (2.6 ÷ 3.2 kgm) and 21 ÷ 26 Nm (2.2 ÷ 2.7 kgm)
26 ÷ 32 Nm, 2.6 ÷ 3.2 kgm
21 ÷ 26 Nm, 2.2 ÷ 2.7 kgm
  1. Free the R134A hose from the lower crossmember.
  2. Slacken the screws fastening the lower crossmember.

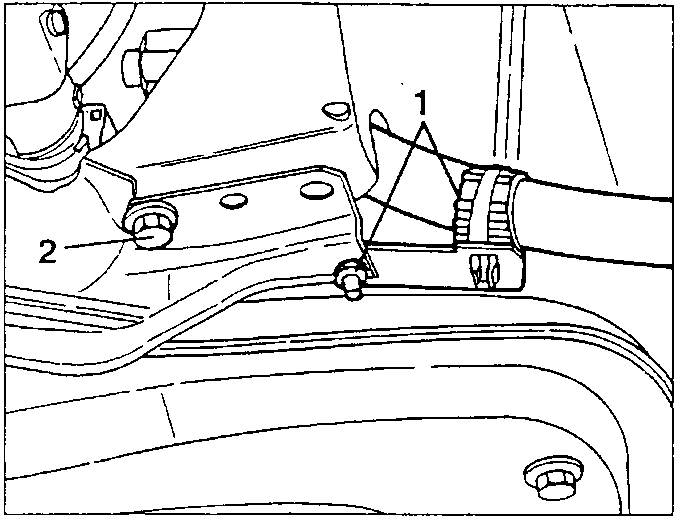

R134A hose clamp 1 and lower crossmember screw 2
  1. Remove the crossmember complete with radiator, condenser and electric fans.

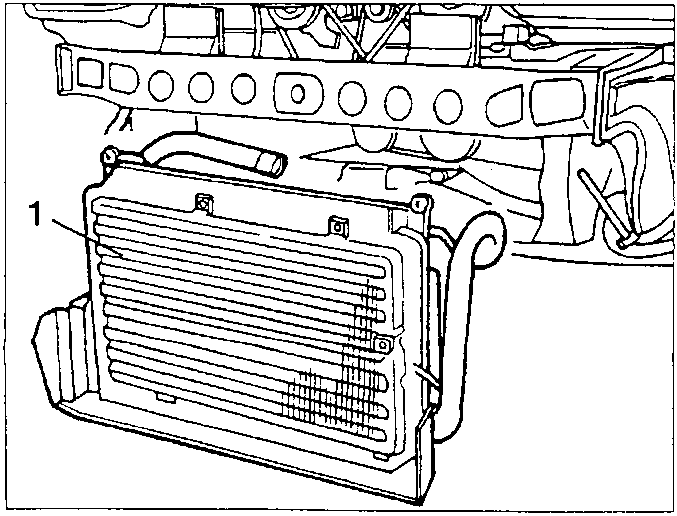

Crossmember complete with radiator, condenser 1 and electric fans
  1. Slacken the fastening screws and bolts concerned, then remove the conditioner compressor drive belt, the power steering pump drive belt and the alternator - water pump drive belt.

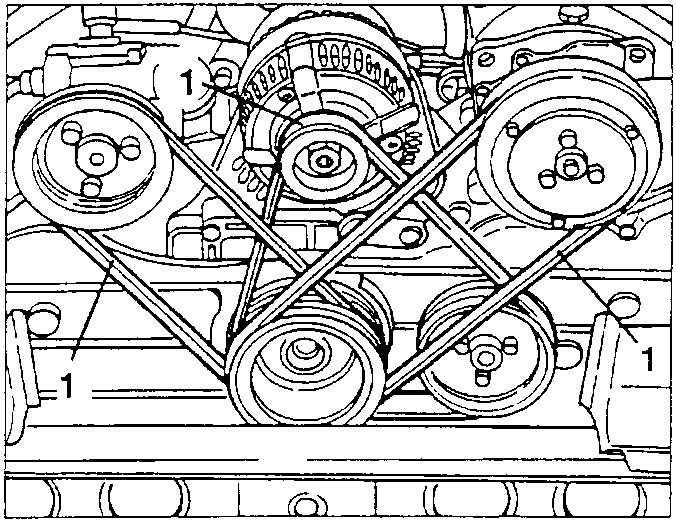

Accessory drive belts 1 on the engine
  1. Slacken the three fastening screws and remove the water pump pulley.

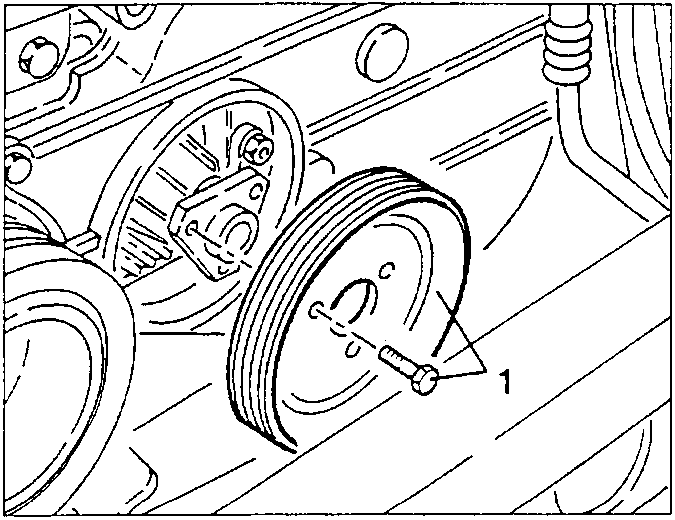

Water pump pulley with the fastening screws 1
  1. Slacken the fastening screws and remove the timing belt covers.

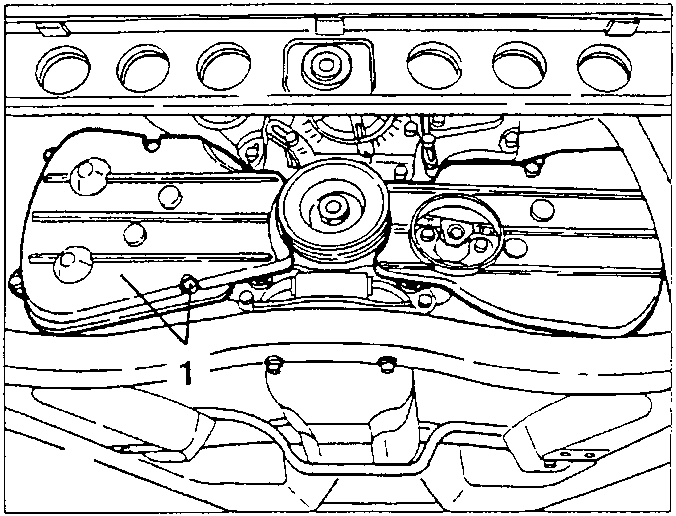

Timing belt covers with the fastening screws 1
