Technical data and maintenanceTurbodiesel 1929 engine servicing · page 2 of 4

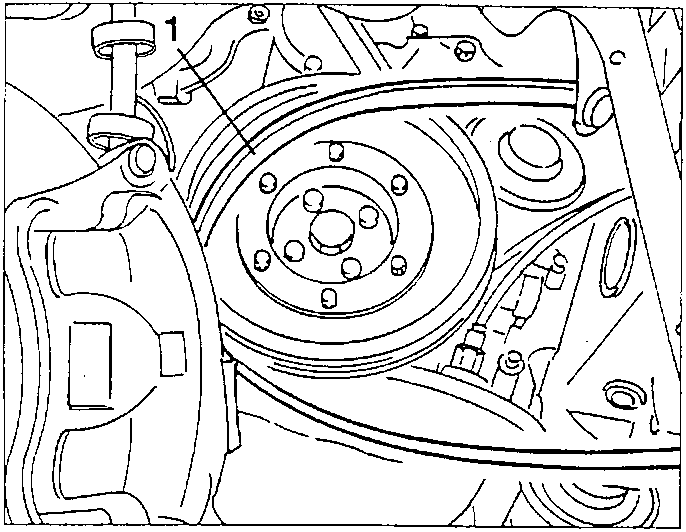

1. Remove the compressor drive belt from the auxiliary components driving pulley.

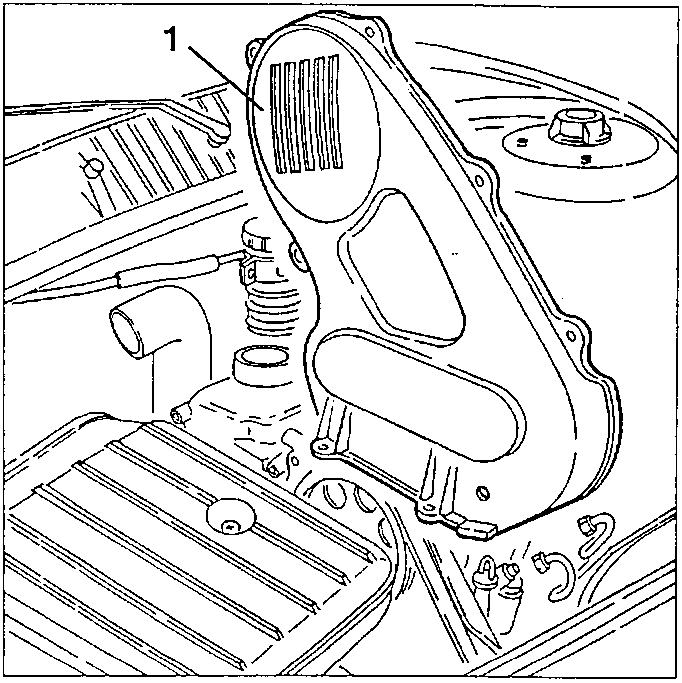

1. Remove the timing belt front cover.

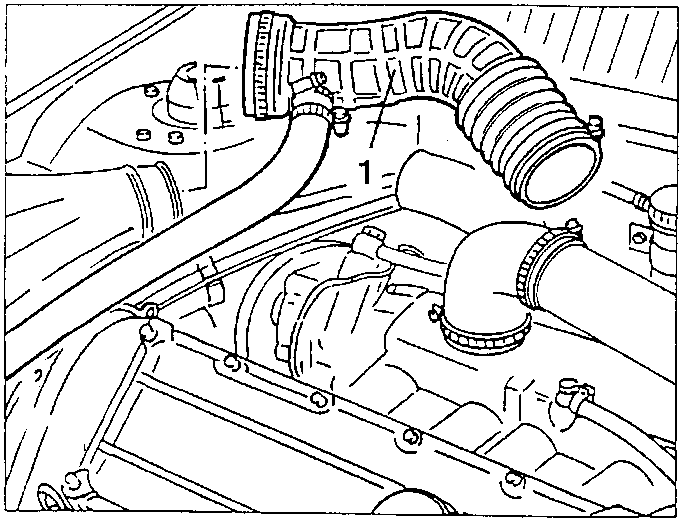

1. Remove the air intake corrugated sleeve and move it to one side without disconnecting the oil vapour recirculation hose.

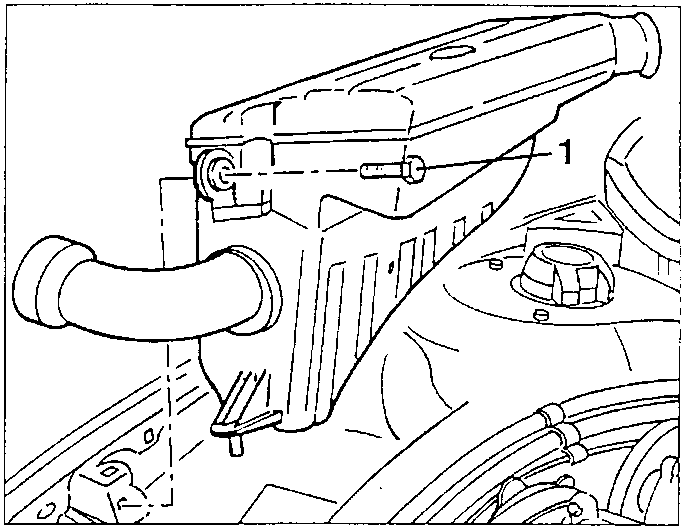

1. Slacken the fastening screws and remove the complete air cleaner.

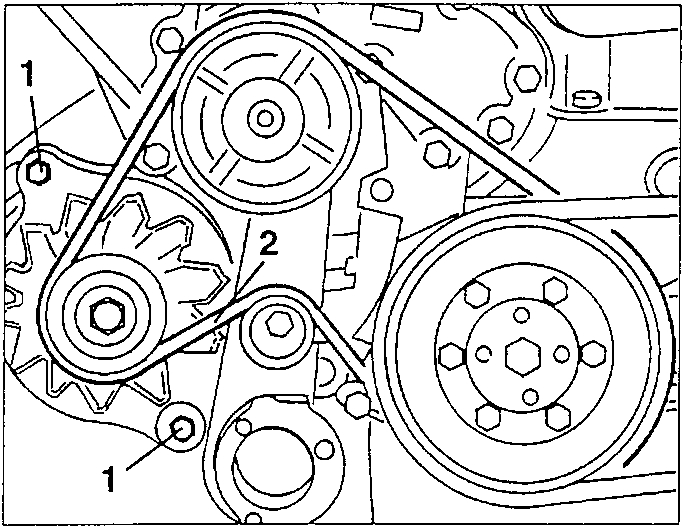

1. Slacken the two alternator fastening bolts.
2. Remove the alternator - water pump drive belt.

• Raise the car.

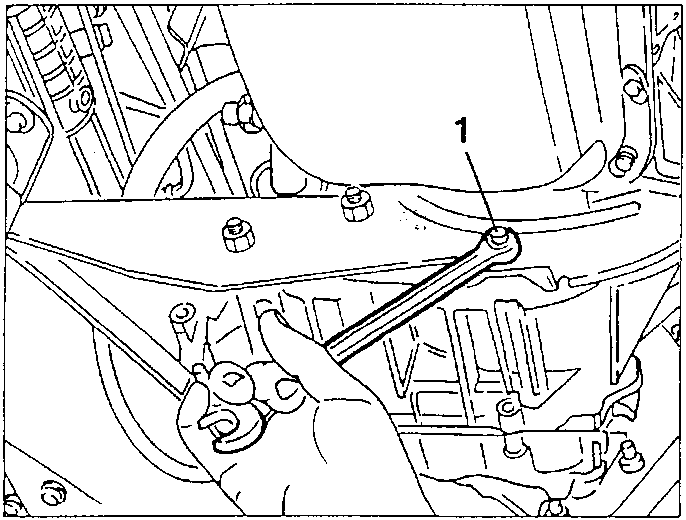

1. Slacken the front nut fastening the gearbox to its support bracket.
