Technical data and maintenanceTurbodiesel 1929 engine servicing · page 3 of 4

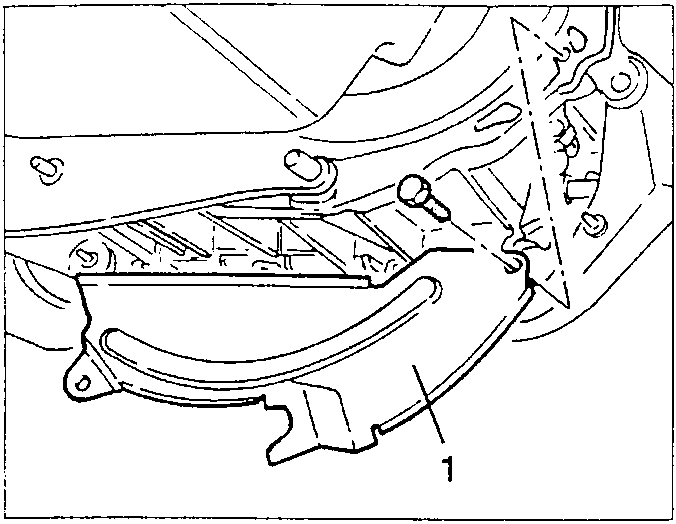

1. Slacken the fastening screws and remove the flywheel cover.

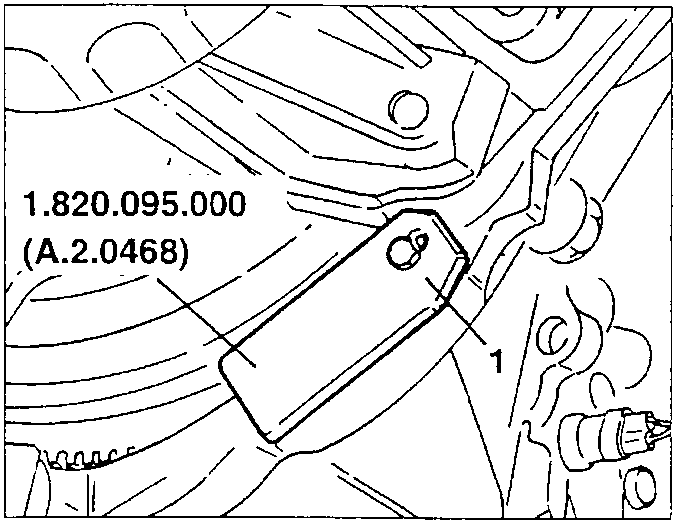

1. Install the tool for holding the flywheel N° 1.820.095.000 (A.2.0468).

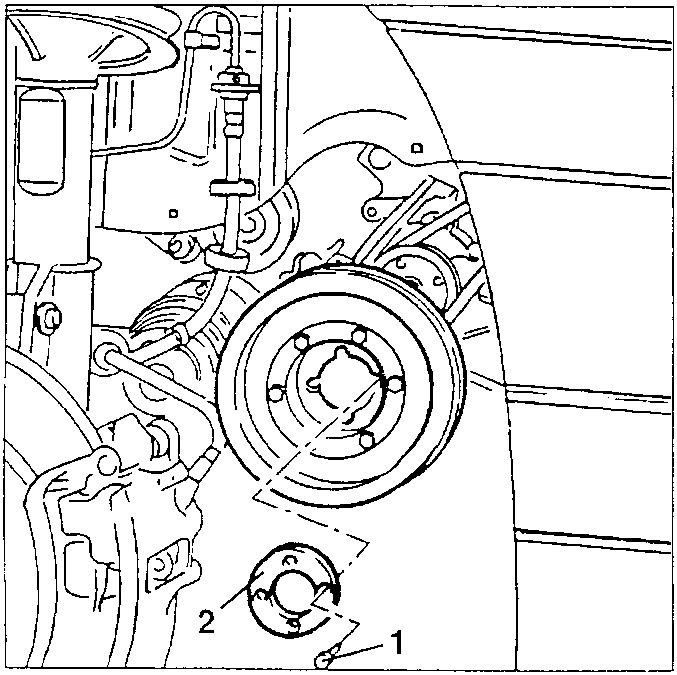

1. Slacken the fastening screws and remove the auxiliary components belt driving pulley.
2. Retrieve the spacer.

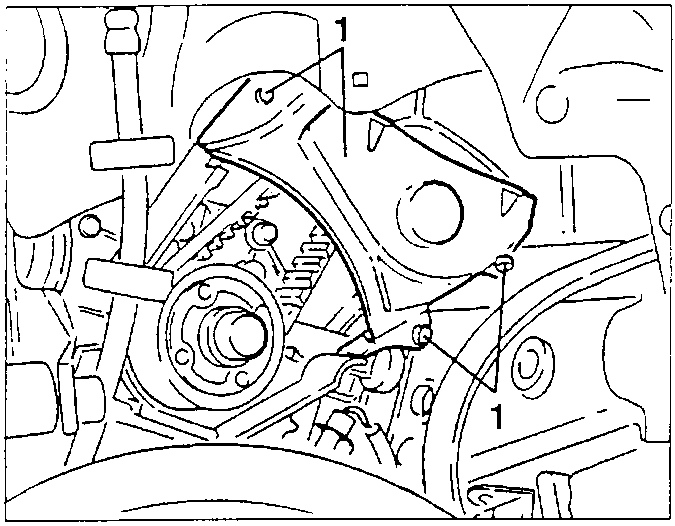

1. Slacken the fastening screws and remove the timing belt lower cover.

• Remove the tool for holding the flywheel installed previously.

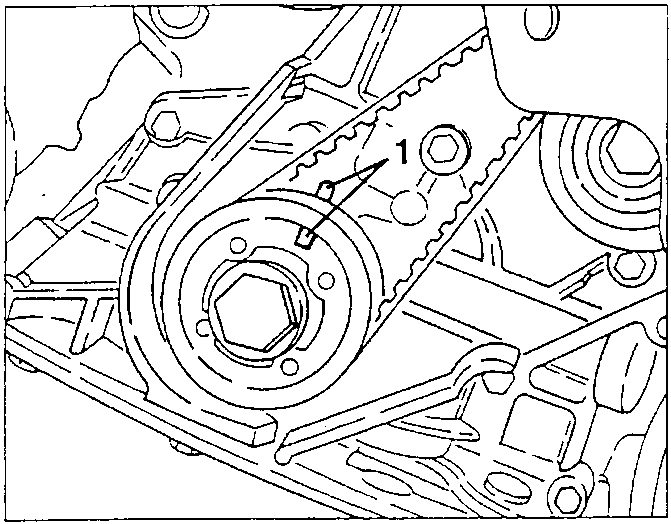

1. Check that the notch on the pulley is aligned with the relief on the front cover.

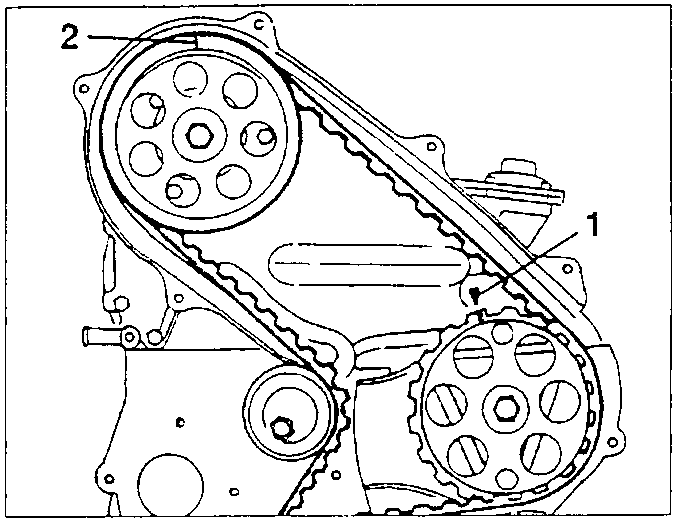

1. Check that the notch etched on the pulley is aligned with the relief on the rear cover.
2. Check that the notch etched on the pulley is aligned with the hole on the rear cover.
