Toothed drive pulley - r + r with timing belt removed

Operation 1032B44 · Belt timing system

1.6 TS

Removing

Position the vehicle on the ramp.

Ensure that the ignition key is in the stop OFF, then disconnect the battery negative terminal.

1.6 TS · 103 CV

1. Undo the bolts (1a) and remove the cover (1b).

2. Fit the flywheel lock.

1.6 TS · 120 CV

1. Undo the bolts (1a) and remove the cover (1b).

2. Fit the flywheel lock.

1.6 TS

Refitting

Place the drive pulley back in its housing and secure it tightening the bolt to the recommended torque.

Remove the flywheel lock.

Place the cover back in its housing and secure it using the bolts.

Connect the battery terminal (-).

Remove the car from the ramp.

2.0 TS

Removing

Position the vehicle on the ramp.

1. Undo the bolts (1a) and remove the cover (1b).

2. Fit the flywheel lock.

1. Undo the bolts (1a) and remove the counter-balance shaft drive belt drive pulley (1b).

2. Undo the (left hand thread) bolt (2a) and remove the drive pulley (2b).

Refitting

Place the drive pulley back in its housing and secure it tightening the bolt to the recommended torque.

Place the counter-balance shaft drive belt drive pulley back in its housing and secure it tightening the bolts to the recommended torque.

Remove the flywheel lock.

Place the cover back in its housing and secure it using the bolts.

Remove the car from the ramp.

3.2 V6

Removing

1. Remove the toothed drive pulley.

Refitting

Place the drive pulley back in its housing.

1.9 JTD 8V

Removing

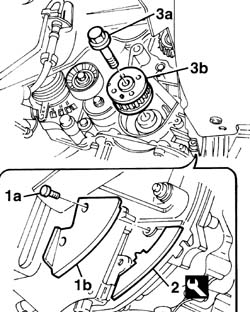

1. Undo bolts (1a) and remove flywheel guard (1b).

2. Position the flywheel retainer.

3. Undo the fixing bolt (3a) and remove the pulley (3b).

The fixing bolt has a left thread.

Refitting

Position the pulley in the housing in the crankshaft.

Tighten the fixing bolts to torque.

Remove the engine flywheel lock and fit the flywheel guard.

1.9 JTD 16V

Removing

1. Undo the bolts (1a) and remove the flywheel shield cover (1b).

2. Fit the flywheel lock.

1. Undo the (left hand thread) bolt (1a) and remove the drive pulley (1b).

Refitting

Place the drive pulley back in its housing and secure it tightening the bolt to the recommended torque.

Remove the flywheel lock.

Place the flywheel shield back in its housing and secure it using the bolts.
