Overhead camshaft - r r on vehicle

Operation 1036B10 · Overhead camshaft

1.9 JTD 8V

Removing

- 1016A10 sound-proofing cover - r + r

- 1016A20 single cam cover - r + r and replace gasket

- 1008C10 power unit upper reaction link r r

- 1008C14 engine link bracket - r r

- 1060G80 ds electric injection control unit - r r

- 4450B04 right front wheel r r

- 7055B54 under-engine guard - r r

- 7055B64 Engine compartment DUST shield in front wheel arch (one), left or right - R.R.

- 1092G10 single engine belt r r

- 1092A10 Crankshaft services PULLEY - R.R.

- 1032B10 toothed timing belt - r + r for timing adjustment or replacement

- 1032B52 toothed driven pulley (one) - r + r

- 3330D30 vacuum pump - r+r

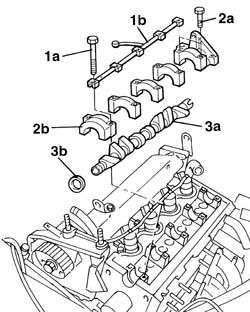

1. Unscrew retaining bolt (1a) and remove camshaft journal lubrication pipe (1b).

2. Undo bolts (2a) and remove camshaft caps (2b).

3. Remove camshaft (3a) with oil seal (3b).

Refitting

Fit the camshaft to the cylinder head.

Tighten the cap retaining bolts.

Fit the lubrication pipe and secure by tightening the retaining bolts.

Tighten the cap bolts to torque.

1. Use tool (1a) to fit new oil seal (1b) to the camshaft.

- 3330D30 vacuum pump - r+r

- 1032B52 toothed driven pulley (one) - r + r

- 1032B10 toothed timing belt - r + r for timing adjustment or replacement

- 1092A10 Crankshaft services PULLEY - R.R.

- 1092G10 single engine belt r r

- 7055B64 Engine compartment DUST shield in front wheel arch (one), left or right - R.R.

- 7055B54 under-engine guard - r r

- 4450B04 right front wheel r r

- 1060G80 ds electric injection control unit - r r

- 1008C14 engine link bracket - r r

- 1008C10 power unit upper reaction link r r

- 1016A20 single cam cover - r + r and replace gasket

- 1016A10 sound-proofing cover - r + r
