TRIP COMPUTER - Location of components
- Make
- Alfa Romeo
- Model
- 147 Factory Service Manual
- Year
- 2000–2004
- Section
- Instrument panel › TRIP COMPUTER - Location of components
Wiring diagrams and electrical functionsTRIP COMPUTER - Location of components
TRIP COMPUTER - Location of components

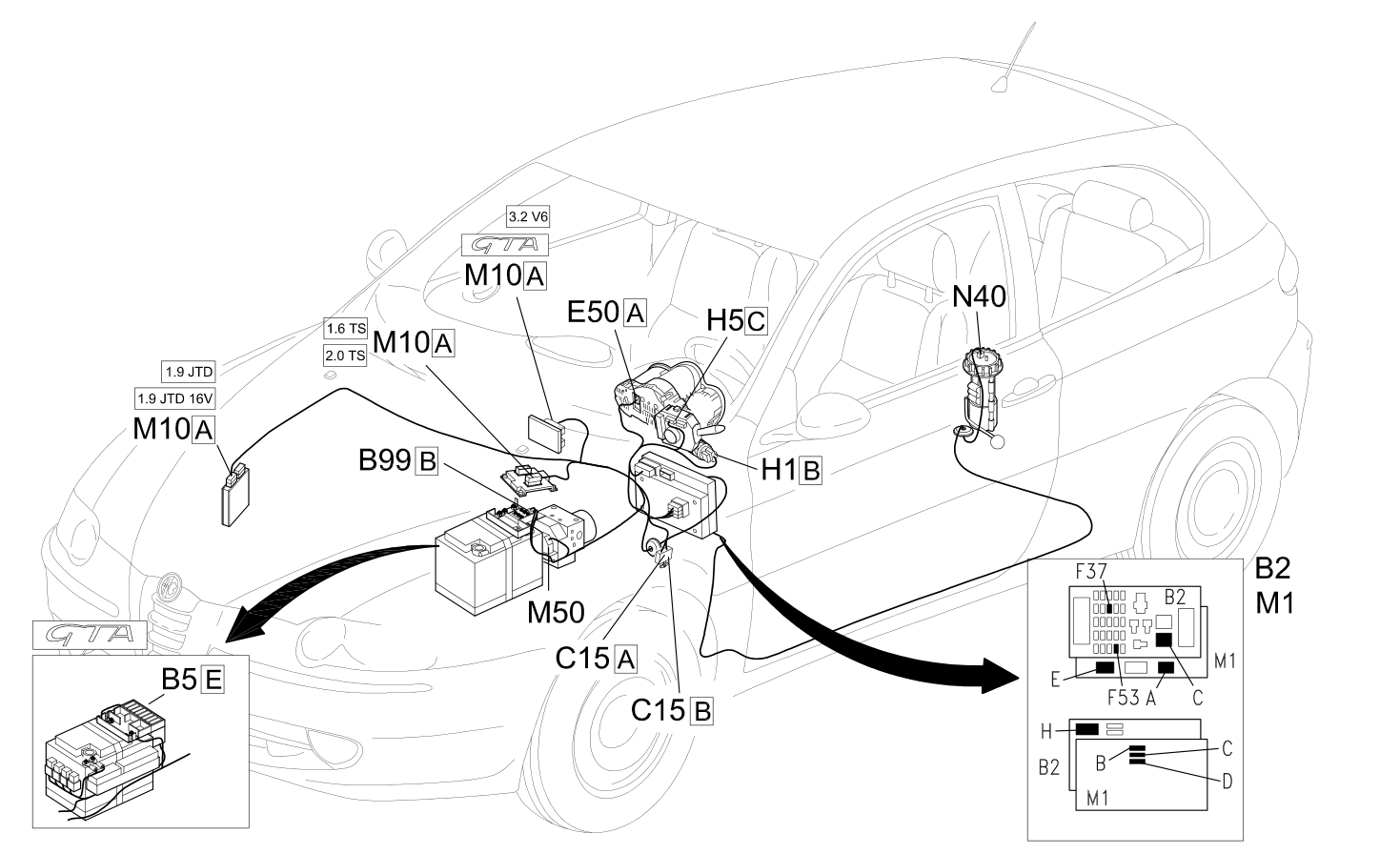

Location of components
Components
| Component code | Name | Assembly reference |
|---|---|---|
| B1 | Engine compartment junction unit | |
| B2 | Junction unit under dashboard | 5505A |
| B5 | MAXI FUSE box | |
| B99 | Maxifuse box on battery | 5530B |
| C15 | Facia earth, driver's side | |
| E50 | Instrument panel | 5560B |
| H1 | Ignition switch | 5520A |
| M1 | Body computer | 5505A |
| M10 | Engine management ECU | 1056B |
| M10 | Engine management ECU | 1060G |
| M50 | ABS control unit | 3340A |
| N40 | Fuel pump and sender unit | 1040A |
