CONNECT - Wiring diagram
- Make
- Alfa Romeo
- Model
- 147 Factory Service Manual
- Year
- 2000–2004
- Section
- Instrument panel › CONNECT - Wiring diagram
Wiring diagrams and electrical functionsCONNECT - Wiring diagram
CONNECT - Wiring diagram

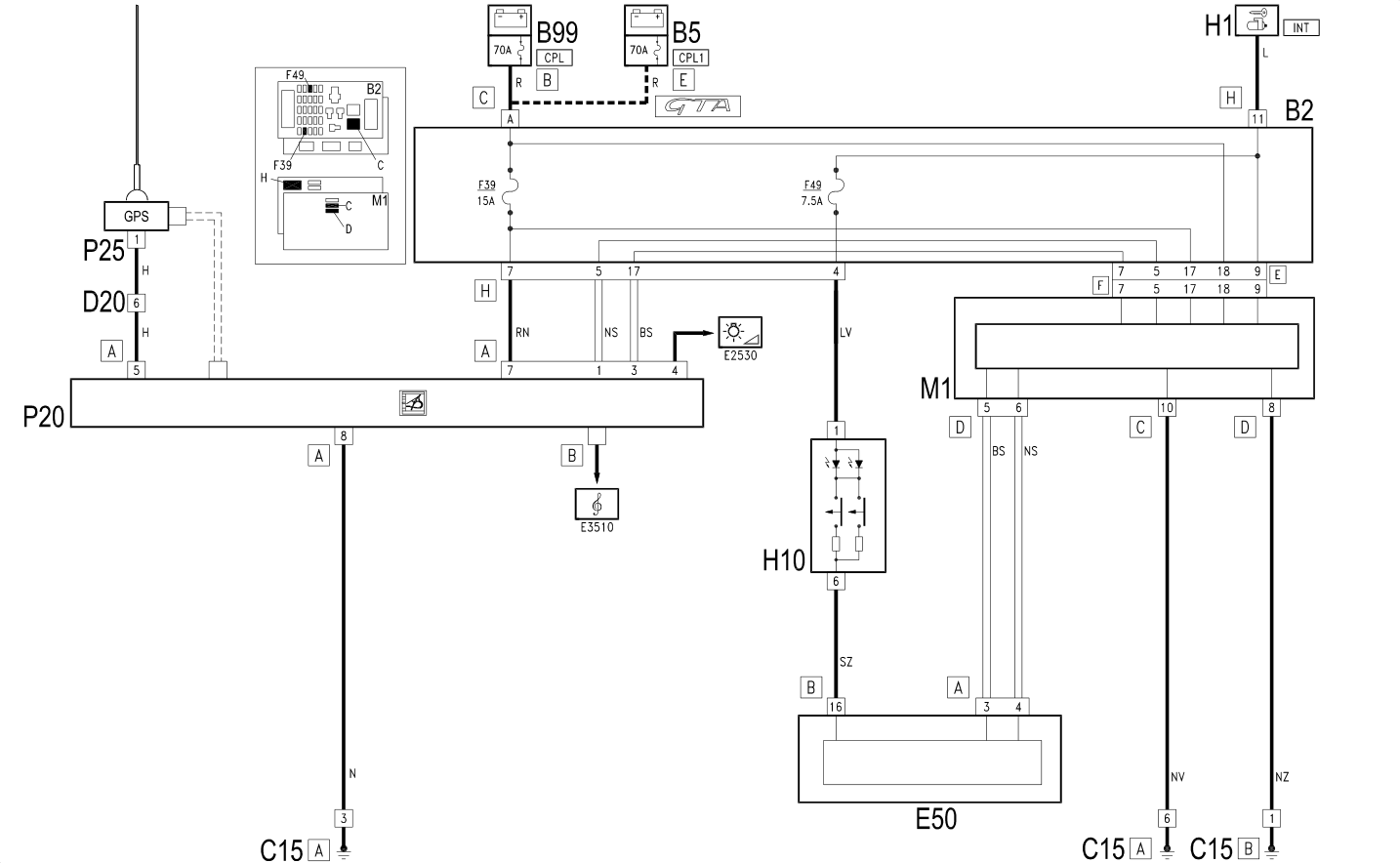

Wiring diagram
==================== cavo coassiale antenna
Components
| Component code | Name | Assembly reference |
|---|---|---|
| B1 | Engine compartment junction unit | |
| B2 | Junction unit under dashboard | 5505A |
| B5 | MAXI FUSE box | |
| B99 | Maxifuse box on battery | 5530B |
| C15 | Facia earth, driver's side | |
| D20 | /Rear dashboard coupling | |
| H1 | Ignition switch | 5520A |
| M1 | Body computer | 5505A |
| P20 | Radio | 5570T |
| P20 | Radio | 5580P |
| P25 | Aerial amplifier / feeder | 5570T |
