Wiring diagrams and electrical functions INSTRUMENT PANEL - Location of components
INSTRUMENT PANEL - Location of components

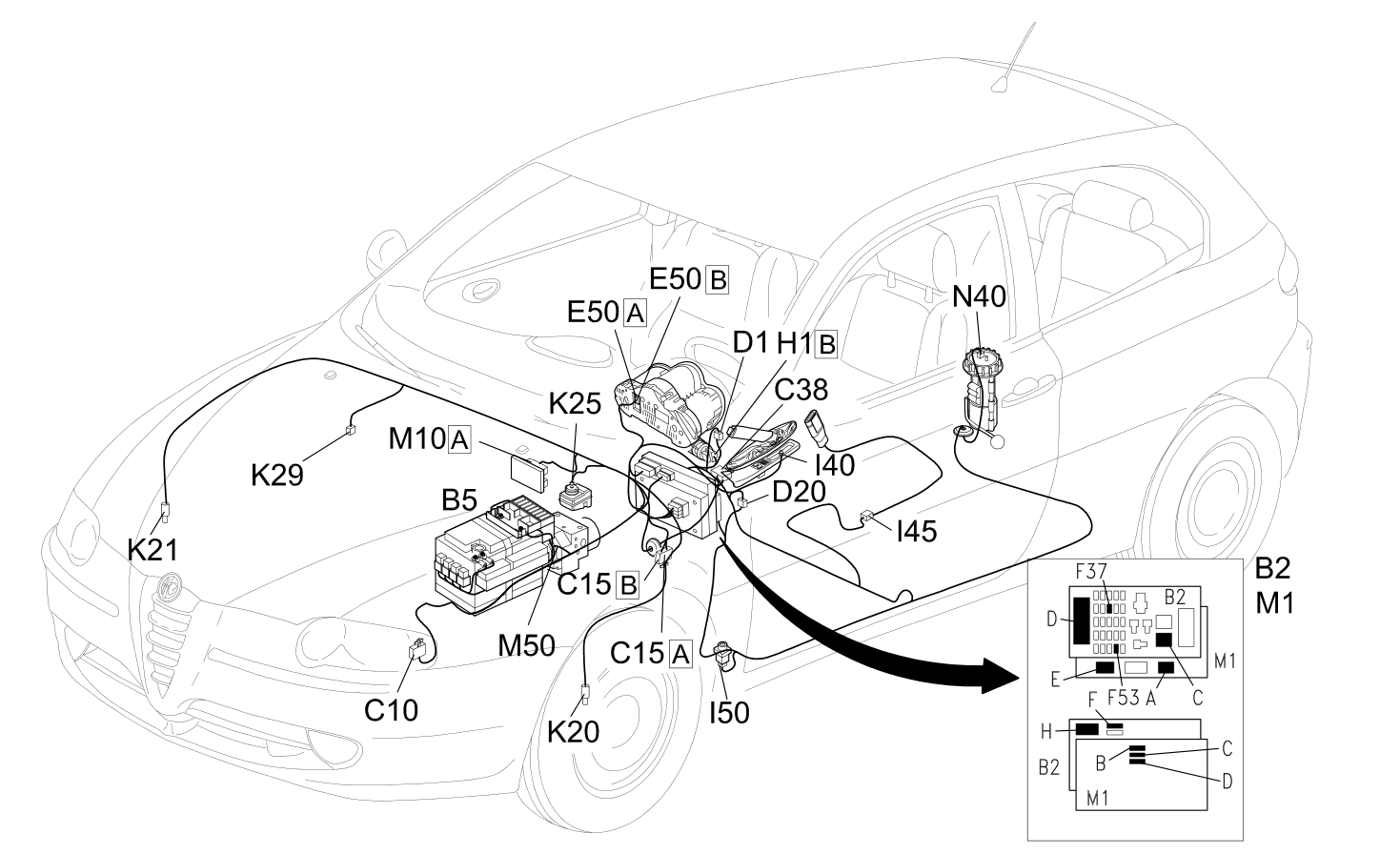

1.6 TS, 2.0 TS
Location of components
Components
Component code Name Assembly reference B1 Engine compartment junction unit B2 Junction unit under dashboard 5505A B5 MAXI FUSE box B99 Maxifuse box on battery 5530B C10 Front left earth C15 Facia earth, driver's side C38 Earth on centre tunnel D1 Front / dashboard coupling D4 Front / engine coupling D20 /Rear dashboard coupling E50 Instrument panel 5560B H1 Ignition switch 5520A I40 Handbrake switch 5550D I45 Seat belts warning light switch 7065A I50 Inertial switch 1040A K20 Left brake pad wear sensor (switch) 3310A K21 Right brake pad wear sensor (switch) K25 Brake fluid level sensor (switch) 3330C K29 Engine oil temperature sensor K32 Engine oil level sensor 1084A M1 Body computer 5505A M10 Engine management ECU 1056B M10 Engine management ECU 1060G M50 ABS control unit 3340A N40 Fuel pump and sender unit 1040A

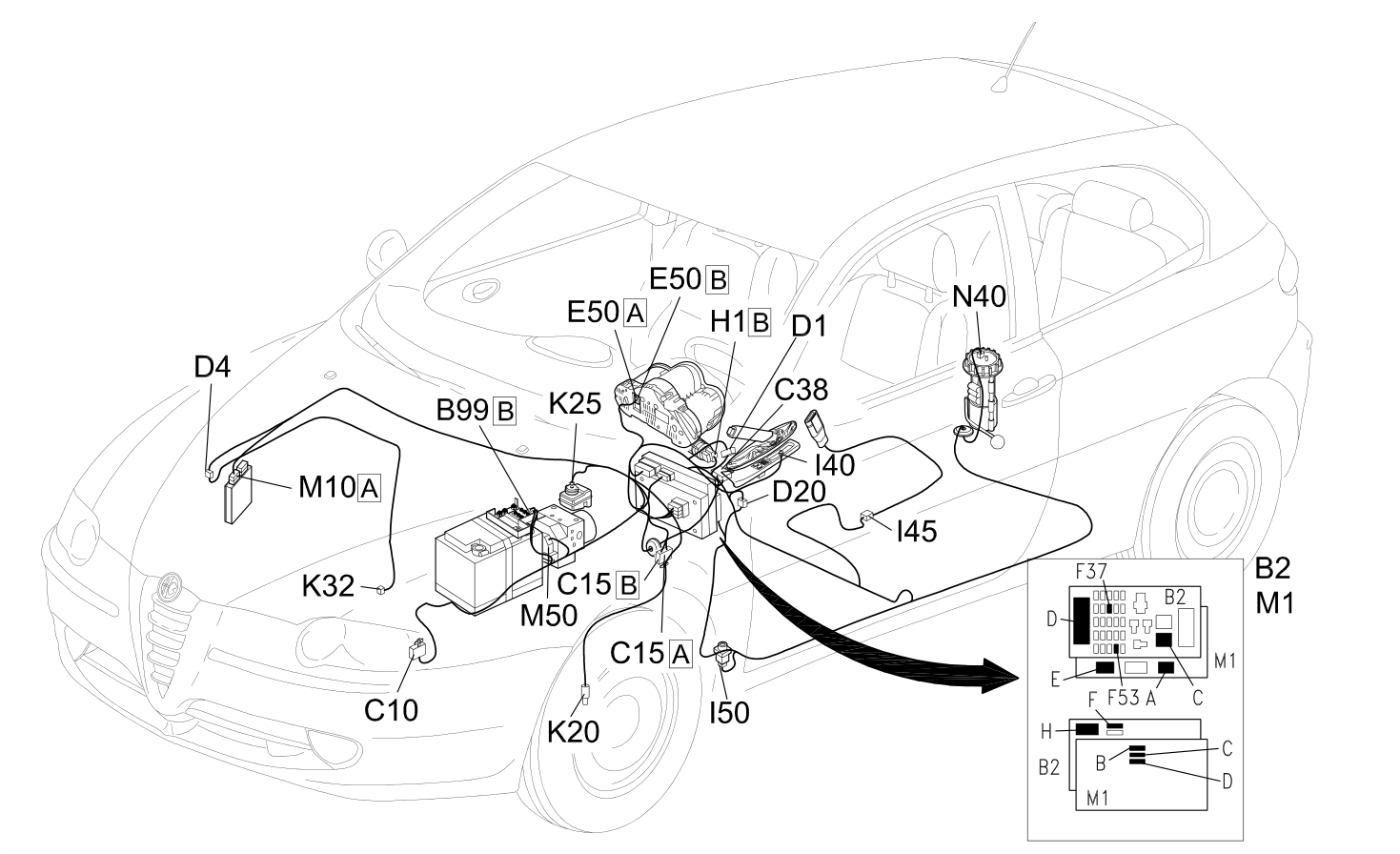

1.9 JTD 8V
Location of components
Components
Component code Name Assembly reference B1 Engine compartment junction unit B2 Junction unit under dashboard 5505A B5 MAXI FUSE box B99 Maxifuse box on battery 5530B C10 Front left earth C15 Facia earth, driver's side C38 Earth on centre tunnel D1 Front / dashboard coupling D4 Front / engine coupling D20 /Rear dashboard coupling E50 Instrument panel 5560B H1 Ignition switch 5520A I40 Handbrake switch 5550D I45 Seat belts warning light switch 7065A I50 Inertial switch 1040A K20 Left brake pad wear sensor (switch) 3310A K21 Right brake pad wear sensor (switch) K25 Brake fluid level sensor (switch) 3330C K29 Engine oil temperature sensor K32 Engine oil level sensor 1084A M1 Body computer 5505A M10 Engine management ECU 1056B M10 Engine management ECU 1060G M50 ABS control unit 3340A N40 Fuel pump and sender unit 1040A

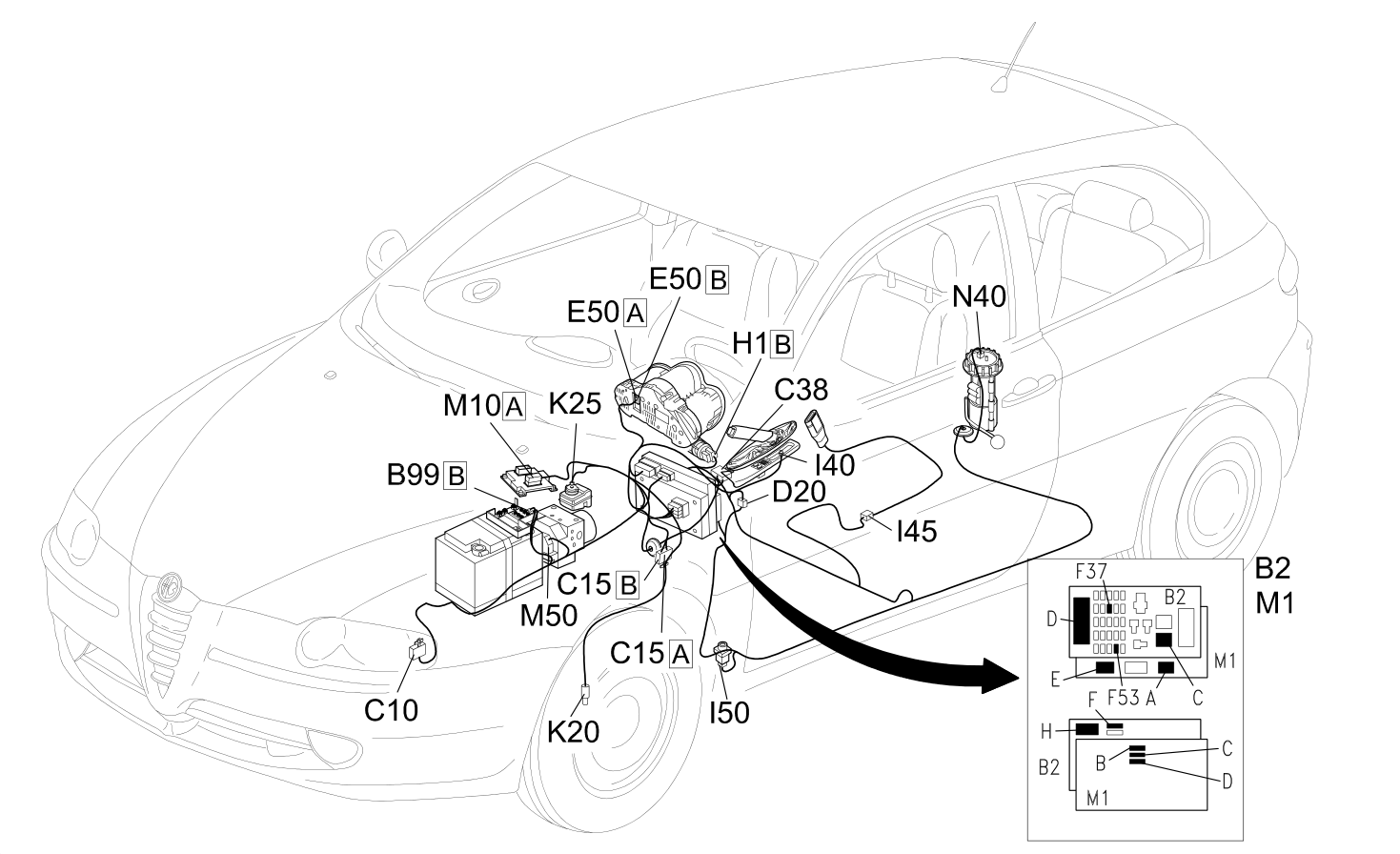

1.9 JTD 16V
Location of components
Components
Component code Name Assembly reference B1 Engine compartment junction unit B2 Junction unit under dashboard 5505A B5 MAXI FUSE box B99 Maxifuse box on battery 5530B C10 Front left earth C15 Facia earth, driver's side C38 Earth on centre tunnel D1 Front / dashboard coupling D4 Front / engine coupling D20 /Rear dashboard coupling E50 Instrument panel 5560B H1 Ignition switch 5520A I40 Handbrake switch 5550D I45 Seat belts warning light switch 7065A I50 Inertial switch 1040A K20 Left brake pad wear sensor (switch) 3310A K21 Right brake pad wear sensor (switch) K25 Brake fluid level sensor (switch) 3330C K29 Engine oil temperature sensor K32 Engine oil level sensor 1084A M1 Body computer 5505A M10 Engine management ECU 1056B M10 Engine management ECU 1060G M50 ABS control unit 3340A N40 Fuel pump and sender unit 1040A
3.2 V6 · GTA
Location of components
Components
Component code Name Assembly reference B1 Engine compartment junction unit B2 Junction unit under dashboard 5505A B5 MAXI FUSE box B99 Maxifuse box on battery 5530B C10 Front left earth C15 Facia earth, driver's side C38 Earth on centre tunnel D1 Front / dashboard coupling D4 Front / engine coupling D20 /Rear dashboard coupling E50 Instrument panel 5560B H1 Ignition switch 5520A I40 Handbrake switch 5550D I45 Seat belts warning light switch 7065A I50 Inertial switch 1040A K20 Left brake pad wear sensor (switch) 3310A K21 Right brake pad wear sensor (switch) K25 Brake fluid level sensor (switch) 3330C K29 Engine oil temperature sensor K32 Engine oil level sensor 1084A M1 Body computer 5505A M10 Engine management ECU 1056B M10 Engine management ECU 1060G M50 ABS control unit 3340A N40 Fuel pump and sender unit 1040A
19 Electrical
