ADJUSTMENT OF MOVEABLE PARTS
The following figures show gap values (expressed in millimetres) to facilitate moveable part refitting and adjustment operations.
Adjustment methods are described in the sections containing the procedures for removing and refitting the moveable parts.

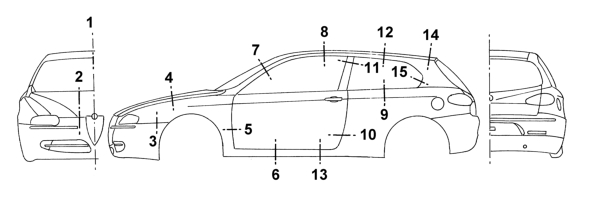

MEASUREMENT POINTS ON THE VEHICLE

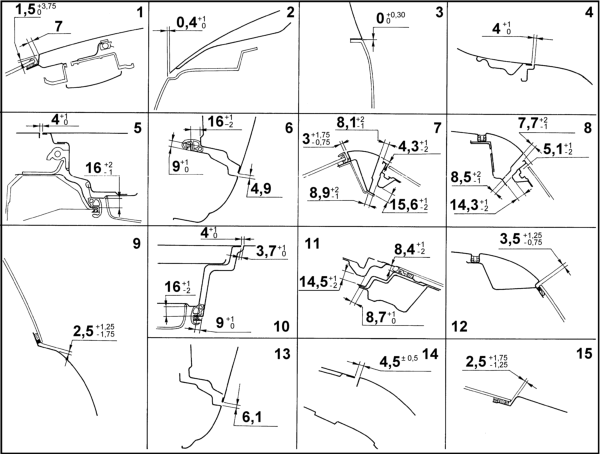

GAP VALUES

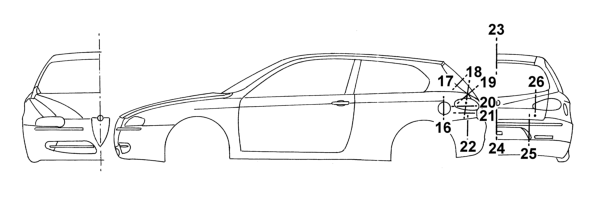

MEASUREMENT POINTS ON THE VEHICLE

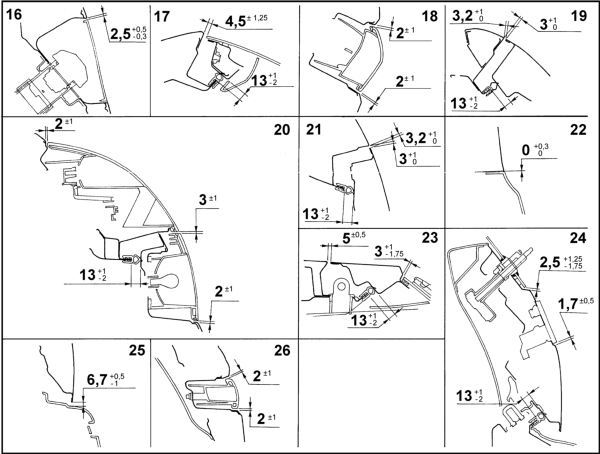

GAP VALUES
