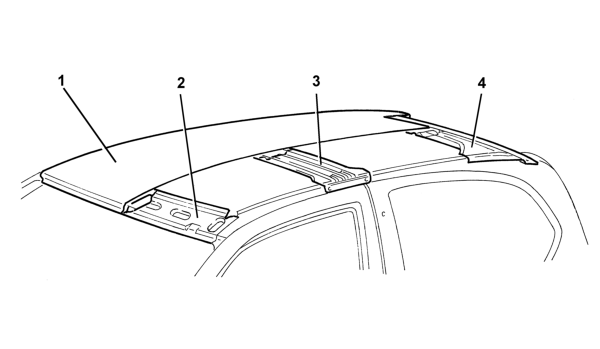

STRUCTURE OF THE ROOF

• 1 Roof panel
• 2 Front hoop
• 3 Pillar connection hoop
• 4 Rear hoop

The roof structure stiffens the survival chamber assembly in the case of side impact or roll-over. The structure consists of the roof panel in addition to a central hoop, te central connetion hoop, bolted to the side pllars, and a box section hoop

connecting the rear pillars.

Sections of sealant are applied along the edges of the hoops in contact with the roof panel. These bond parts to confer good mechanical strength while also preventing vibrations and resonance.
