Body panels and reinforcementResistance to rear impacts

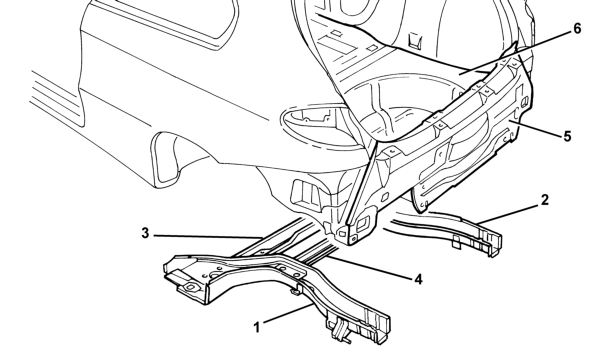

RESISTANCE TO REAR IMPACTS
- 1 Left rail
- 2 Right rail
- 3 Connection beam
- 4 Connection beams
- 5 Rear box section trim
- 6 Rear floor pan
Side impact protection is ensured by rails and connection beams that are welded to the floor pan to create a very strong structure. This structure offers extra protection to the tank, which is secured beneath the floor pan. The rear box section trim
and tail-gate ring is also a reinforced area.
