MEASURING TAIL-GATE COMPARTMENT DIMENSIONS

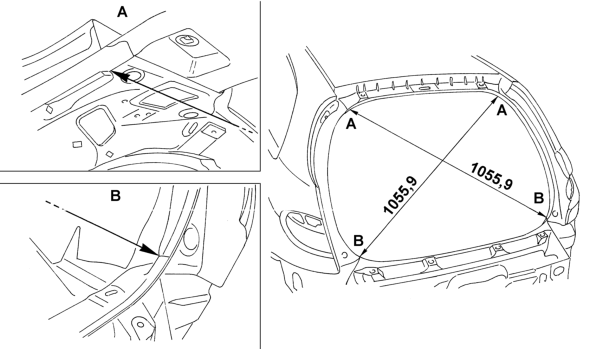

The comparative dimensions shown in the following figure are expressed in millimetres with a tolerance of about ± 2 mm
