Typical underbody dimensions
- Make
- Alfa Romeo
- Model
- 147 Factory Service Manual
- Year
- 2000–2002
- Section
- General › Typical underbody dimensions
Body panels and reinforcementTypical underbody dimensions

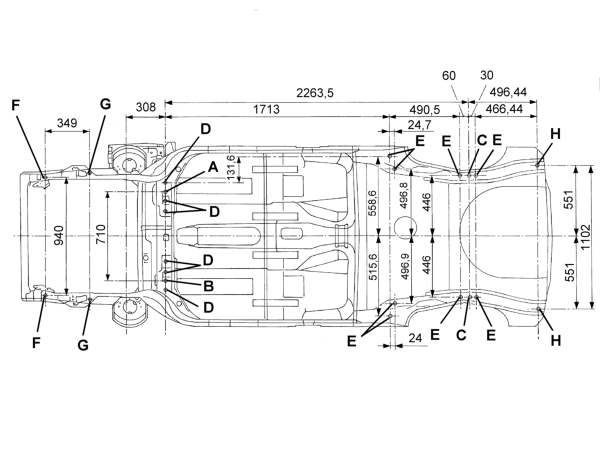

TYPICAL UNDERBODY DIMENSIONS
- A - Main body reference
- B - Main body reference
- C - Main body reference
- D - Front suspension attachment
- E - Rear suspension attachment
- F - Main body reference
- G - Engine mounting block fastening
- H - Main body reference
The comparative dimensions shown in the following table are expressed in millimetres with a tolerance of about ± 2 mm Experienced repairers will be able to determine whether these differences are due to impact or the sum of manufacturing deviations.
