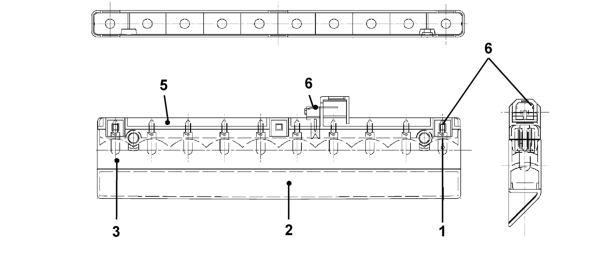

ADDITIONAL BRAKE LIGHT

• 1 All glass bulb 12V - 2.3 W
• 2 Lens cover (red)
• 3 Parabola body (black)
• 4 Connector
• 5 Bulb holder cover (black)
• 6 Bulb attachment housing (2-way)

The additional brake light function is achieved through a multi-bulb lamp and light beam coming out of the rearscreen serigraphy, fitted on the upper part of the tailgate trim which has a luminous surface.

The casing is made of black bayblend, it contains the bulb holder which is in one piece and is fastened to the actual casing. The internal current carrier tracks are made from brass with a copper covering and, with the circuit activated, supply 10

small all glass type 12V - 2.3W bulbs. The light cluster has two housings for fastening to the tailgate. The red coloured acrylate lens cover is fitted to the light cluster casing and its shape and outline give a masked effect with the light off if

viewed from outside the vehicle.

The bulbs can be changed, with the light cluster fitted, through the service cover by opening the tailgate.
