Electrical equipmentNo. plate light

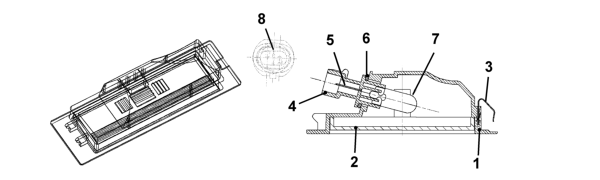

NO. PLATE LIGHT
- 1 Casing
- 2 Lens cover
- 3 Spring
- 4 Bulb holder casing
- 5 Contact
- 6 Seal
- 7 All glass bulb 12V - 5W
- 8 Connector housing
The no. plate light is illustrated below.
The number plate light function is achieved by means of two single bulb lights fitted by a metal spring. Each light has an all glass 12V - 5W bulb which is replaced by removing the light from the trim and the bulb holder from the number plate light.
The black coloured casing has housings for fastening to the trim. The polycarbonate lens cover is colourless and is ultrasonically welded to the actual casing.
