TAIL-LIGHT CLUSTER

The vehicle's exterior lighting system has been designed with two aims in mind:

• to ensure maximum efficiency in terms of complying with international regulations which define the illumination specifications of the various components
• to blend in with the design of the vehicle so that the various components reflect the image.

In particular, the front light cluster includes the separate function of the side light, dipped headlamp, main beam headlamp and fog lights in a single unit.

The clear element is made out of one piece of plastic.

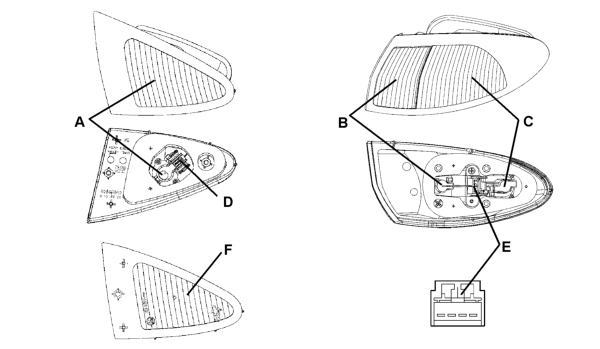

• A - Reversing light 12V - 12W (right side only)
• B - Direction indicator 12V - 21W
• C - Side light 12V - 5W and brake light 12V - 21W (bilux bulb)
• D - Connector D
• E - Connector E
• F - Rear fog lamp 12V - 21W (left side only) right light cluster
• CONNECTOR D PIN-OUT
• 1 Rear fog lamp
• 2 Earth
• CONNECTOR E PIN-OUT
• 1 Earth
• 2 Direction indicator
• 3 Brake light
• 4 Side light

The vehicle's exterior lighting system has been designed with two aims in mind:

• Ensuring maximum efficiency in terms of complying with international regulations which define the illumination specifications of the various components
• To blend in with vehicle design so that the various components enhance the image.
• The exterior aesthetic appearance is polychromatic in line with the vehicle. The functional selection is a light cluster assembled from a fixed section and a moving section.

The light cluster carries out the following lighting functions:

Signals on fixed section:

• Red incoroporated side light and brake light.
• Orange direction indicator and reflector grouped together.

Signals on moving section:

• 1 red coloured (left) rear fog lamp
• 1 white coloured (right) reversing light

Moving light cluster lens cover (F): white (right) or red (left)

Fixed light cluster lens cover (B) (C): two tone orange/red
