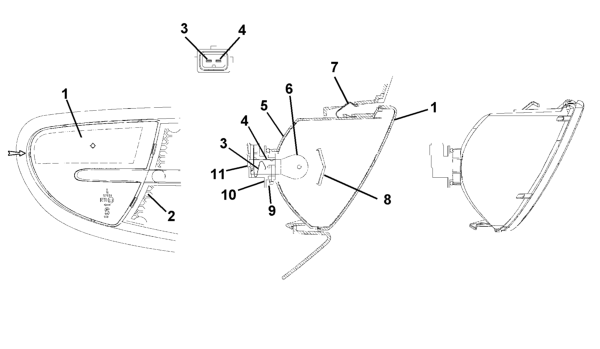

FRONT DIRECTION INDICATORS

• 1 Lit surface smoked lens cover
• 2 Bumper grille
• 3 Supply terminal
• 4 Earth terminal
• 5 Casing
• 6 Left front direction indicator 12V - 21W
• 7 Attachment spring
• 8 Screen
• 9 O-Ring
• 10 Bulb holder
• 11 Bulb holder cap

Below is an illustration of the front direction indicators.

Use a screwdriver when replacing the front direction indicator bulb applying leverage at the point shown by the arrow to extract the complete lens cover outwards. This operation should be carried out very carefully in order not to damage the

paintwork. Place a cloth between the screwdriver and the actual bodywork.
