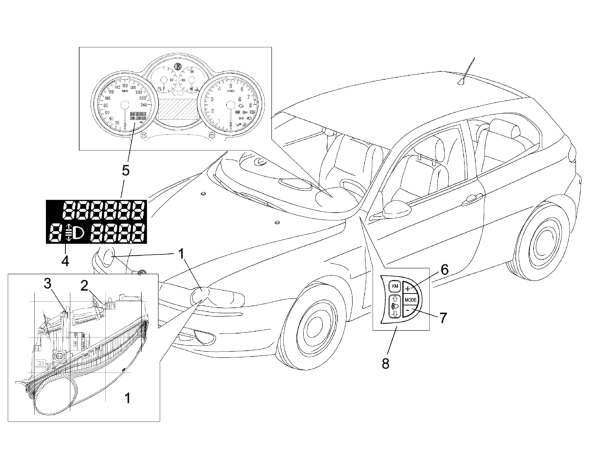

ELECTRICALLY CONTROLLED HEADLAMP ALIGNMENT

• 1 Front light cluster (with headlamp alignment motor incorporated)
• 2 Bevel pinion/adjustment screw for headlamp vertical axis
• 3 Bevel pinion/adjustment screw for headlamp horizontal axis
• 4 Headlamp positino display area on milometer display
• 5 Milometer display in instrument panel (NQS)
• 6 Adjustment button in left panel from position 3-2-1-0
• 7 Adjustment button in left panel from position 0-1-2-3
• 8 MODE functions and headlamp alignment control panel

The diagram below shows the location of the components.
