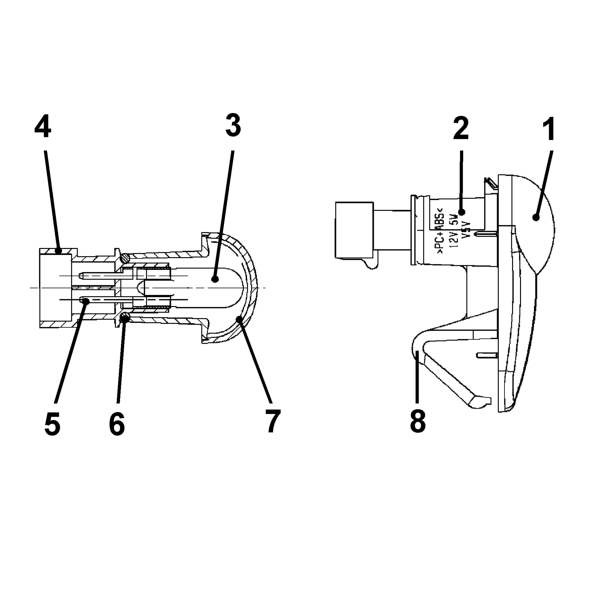

SIDE DIRECTION INDICATOR

• 1 Grey casing
• 2 Orange lens cover
• 3 Bulb 12V - 5W
• 4 Bulb holder
• 5 Contact terminal
• 6 O-Ring
• 7 Prism
• 8 Fastening spring

The side direction indicator is illustrated below.

To replace the small bulb, push the lens cover, by hand, in the opposite direction to the direction of travel of the vehicle in order to compress the fastening spring 8. Release the front section and extract the unit. Rotate the bulb holder in an

anti-clockwise direction and extract it from the lens cover.
