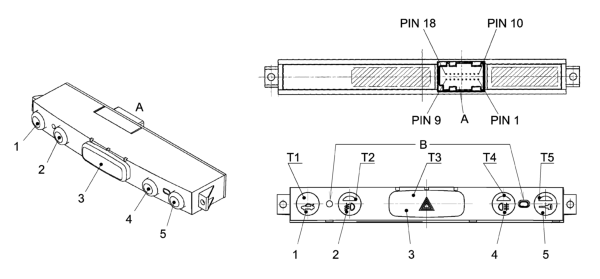

CENTRE SWITCH CONTROL PANEL

• 1 Tailgate release button
• 2 Fog lights control button
• 3 Hazard warning lights control button (HAZARD)
• 4 Rear fog light control button
• 5 Central locking control button
• T2 - green LED signalling fog lights on
• T3 - red coloured LED with hazard warning lights ideogram (night) Ideogram with red flashing warning light which is brighter when the function is switched on
• T4 - two tone amber-yellow LED lit up when rear fog lamp is on
• T5 - two tone amber-yellow LED lit up when central locking function is on and red when alarm function is on
• T1-T2-T4-T5 - LEDs lighting up ideograms at night with red reduced brightness
• B - centering housings in climate control trim

The control panel is an electro-mechanical and electronic unit with LEDs which come on at night and LEDs which light up the ideograms and controls described below.

CONNECTOR A PIN-OUT:

• 1 - Positive signal for hazard warning lights LED (flashing) from (NBC)
• 2 - Earth
• 3 - Negative signal for hazard warning lights control button from (NBC)
• 4 - INT (ignition key) fuse F49 (dashboard control unit) for control lights
• 5 - Negative signal from fog lights control button
• 6 - Negative signal from rear fog lamps control button
• 7 - Negative signal from central locking opening/closing control button
• 8 - N.c.
• 9 - N.c.
• 10 - Negative signal from boot opening control button
• 11 - Positive signal for deterrent LED (alarm on)
• 12 - Negative signal for central locking on LED
• 13 - Positive signal for rear fog lamp warning light LED
• 14 - Negative signal for fog lights warning light LED
• 15 - N.c.
• 16 - N.c.
• 17 - N.c.
• 18 - N.c.
