DESCRIPTION

The information and illustrations given below enable the rapid removal of the power unit from its housing and its subsequent refitting.

Dis-assembly of the single components on the bench is described in the volume "ENGINE OVERHAULING". The following procedure may be used only in part according to requirements. For further information and details, refer to the chapters concerning the components or specific groups.

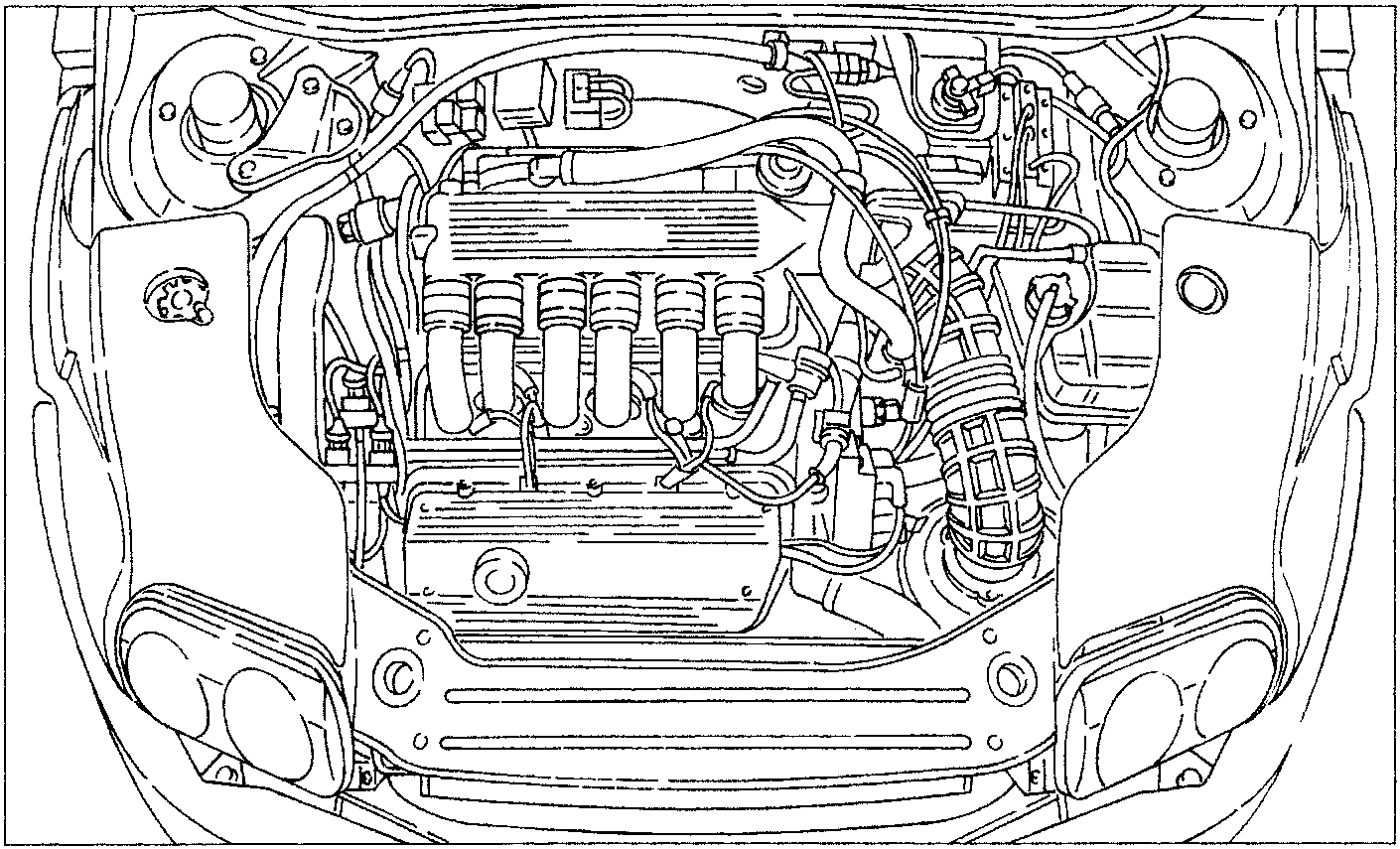

Engine compartment view showing intake manifold, throttle potentiometer, and air inlet pipe

REMOVAL

  • Set the car on a two-column lift.
  • Disconnect the battery (-) terminal.
  • Drain the coolant fluid from the air conditioning system (see specific paragraph).
  • Remove the front wheels and wheel houses.
  1. Raise the car and drain the coolant fluid disconnecting the radiator outlet sleeve.

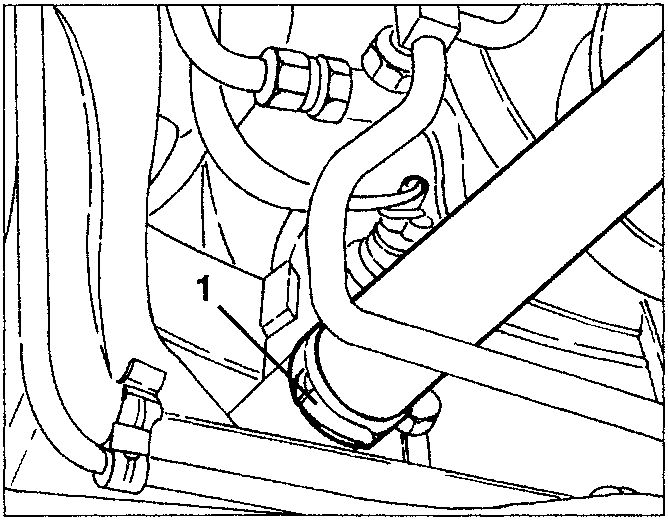

Close-up of radiator outlet sleeve connection point
  1. Lower the car and disconnect the electrical connection from the intaken air temperature sensor.
  2. Disconnect the air inlet pipe for the idle speed actuator from the corrugated sleeve.
  3. Disconnect the electrical connection from the throttle potentiometer

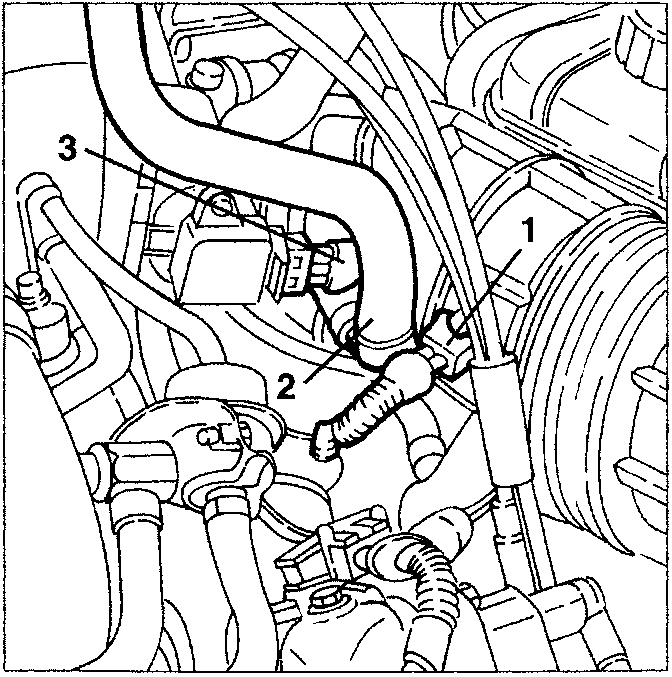

Close-up of throttle potentiometer and idle speed actuator connections
