10 Engine – 3.0 V6Description · page 2 of 8

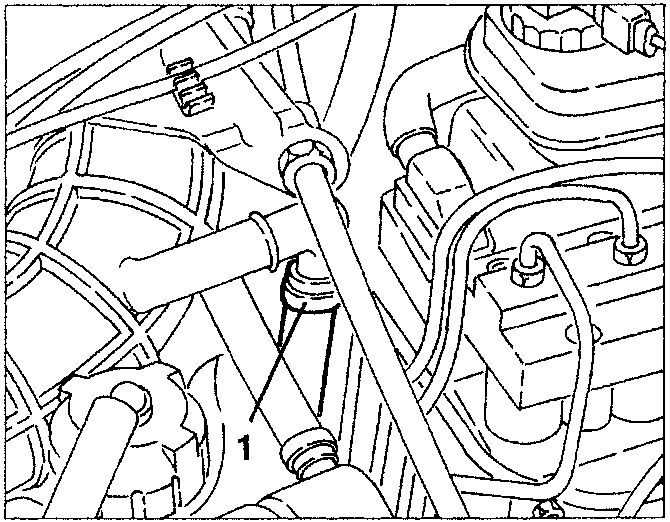

  1. Disconnect the oil vapour recirculation pipe from the corrugated sleeve.
Oil vapour recirculation pipe disconnected from corrugated sleeve

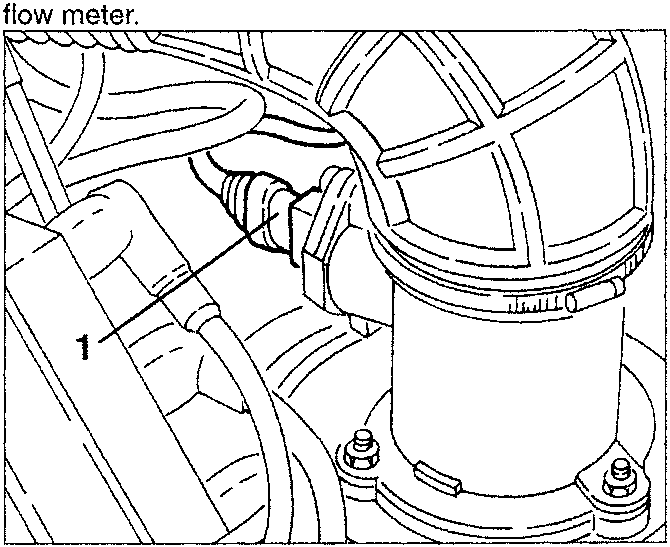

  1. Disconnect the electrical connection from the air-flow meter.
Electrical connection disconnected from airflow meter

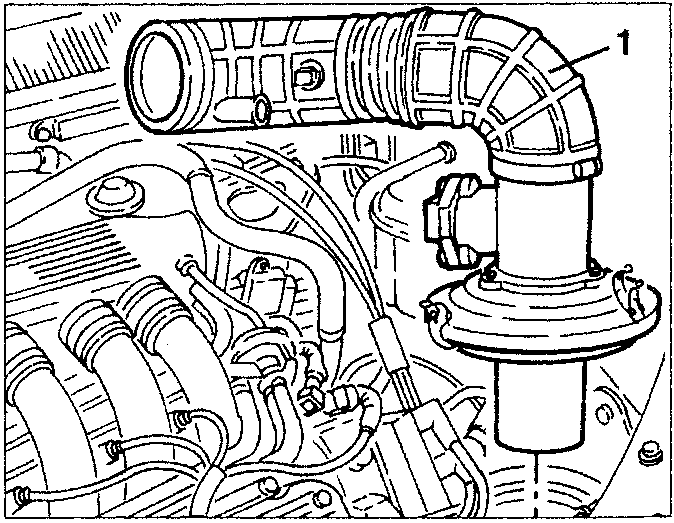

  1. Remove the corrugated sleeve complete with air cleaner cover, after slackening the clamps fastening it to the throttle body and the clips fastening it to the air cleaner box.

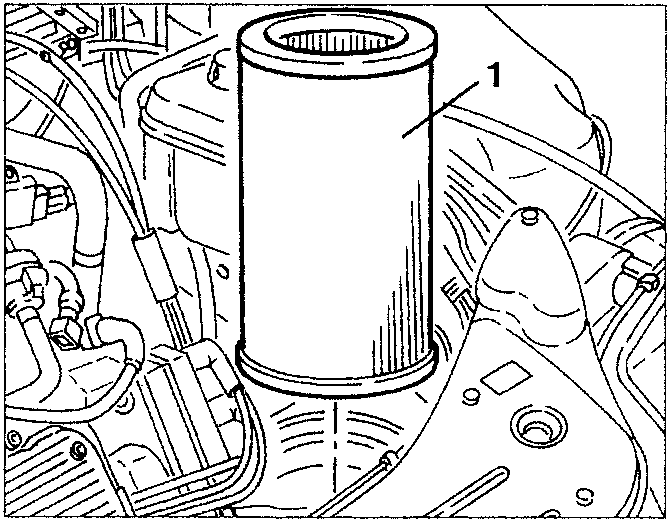

  2. Remove the filtering element.
Illustrates intake manifold and associated engine components
Filtering element removed from air cleaner box

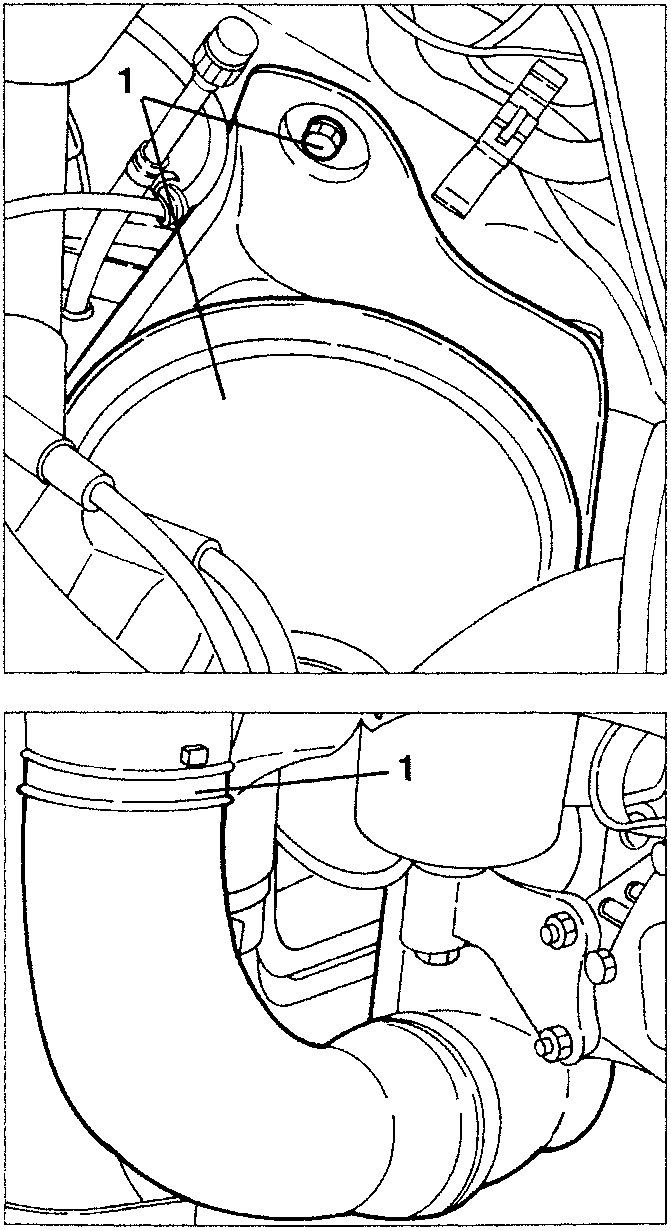

  1. Slacken the three screws fastening the air cleaner box then remove it complete with elbow after disconnecting same.
Air cleaner box being removed with elbow
