Description (page 6 of 8)

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

Removal/Refitting (V6)

10 Engine – 3.0 V6Description · page 6 of 8

• Empty the power steering tank using a suitable syringe.

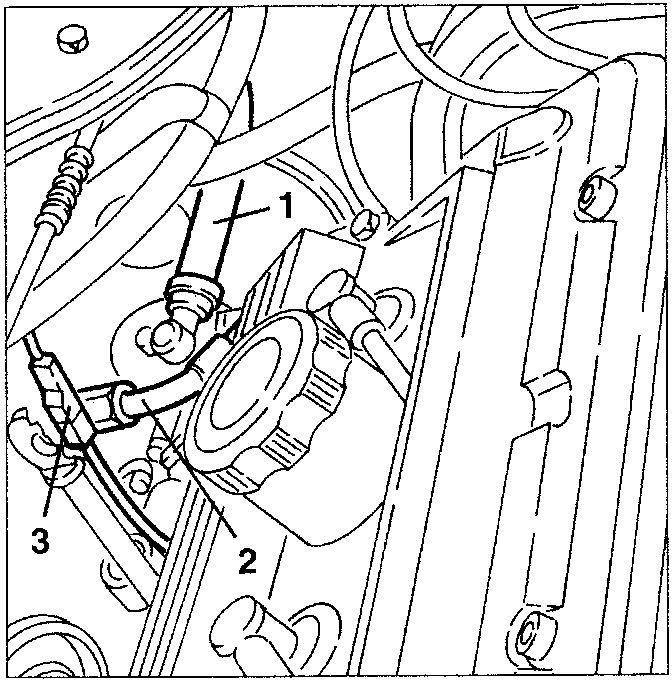

1. Disconnect the oil inlet pipe from the power steering pump.
2. Disconnect the intermediate connection of the oil delivery pipe from the power steering pump.
3. Disconnect the electrical connection from the conditioner compressor.

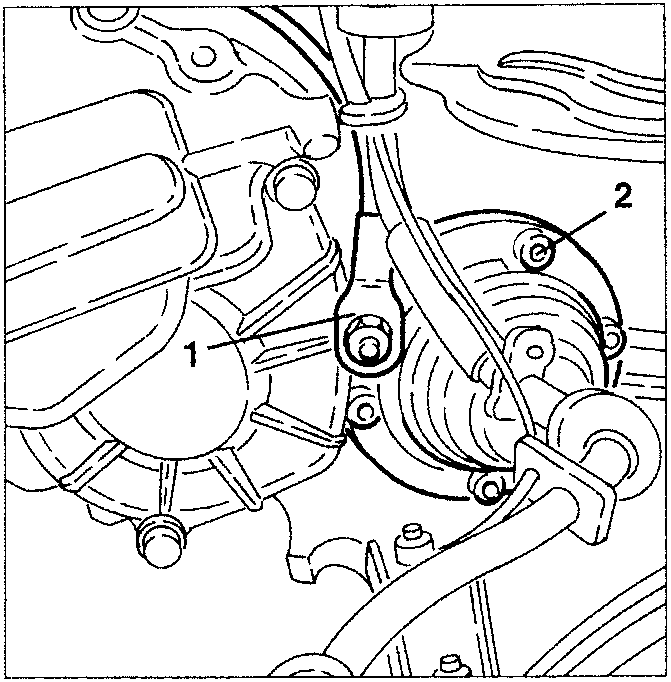

1. Working from the wheel house, disconnect the earth braid from the gearbox rear cover.
2. Slacken the fastening bolts and disconnect the axle shafts.

• Raise the car.
• Remove the front section of the exhaust pipe.

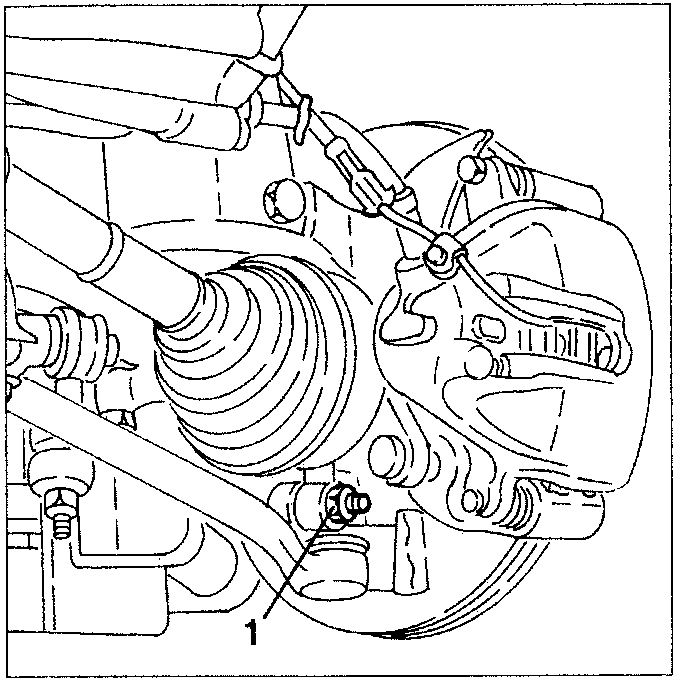

1. Slacken the bolts fastening the wishbones to the wheel uprights.

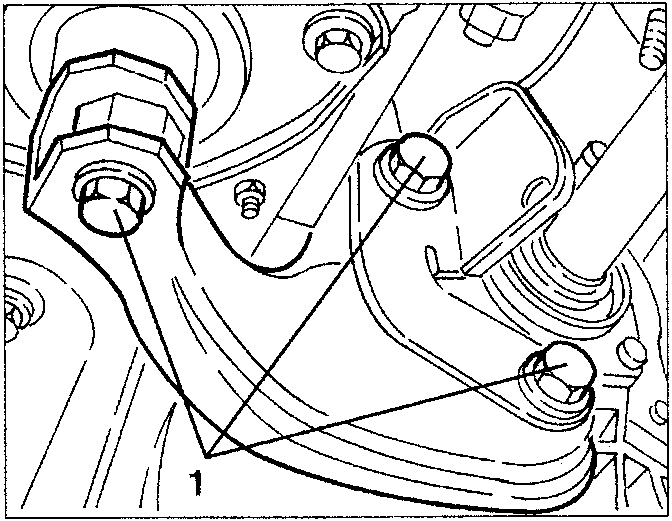

1. Slacken the fastening screws and remove the power unit rear support.

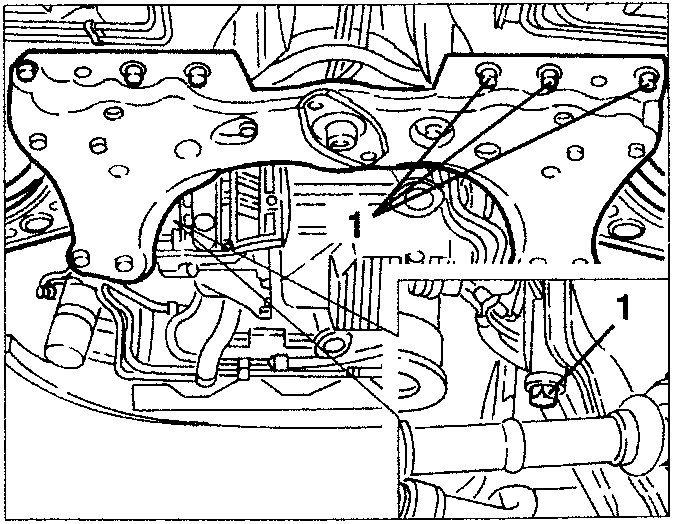

1. Slacken the screws and nuts fastening the crossmember to the body, then, using a hydraulic jack, remove it complete with wishbones and stabilizer bar, after slackening the power steering screws.

04 Engine
