10 Engine – 3.0 V6Description · page 7 of 8

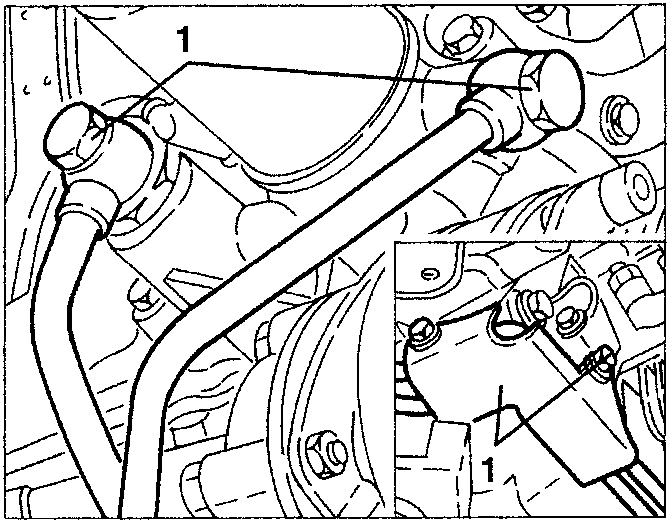

1. Disconnect the radiator oil delivery and return pipes, then move it aside after slackening the support bracket fastening screws.

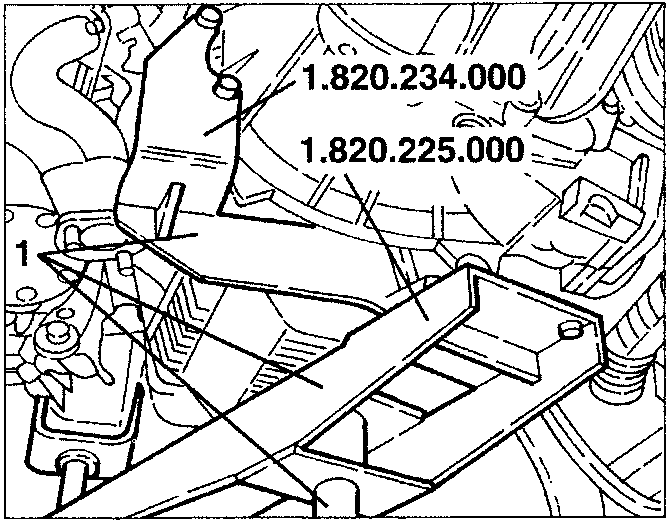

1. Position a hydraulic jack complete with tool no. 1.820.225.000 and no. 1.820.234.000 for supporting the power unit.

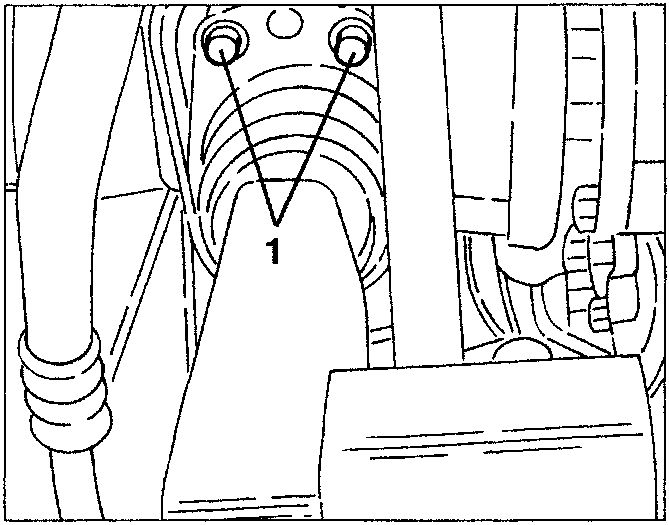

1. Slacken the three screws fastening the power unit support on the timing gear side.

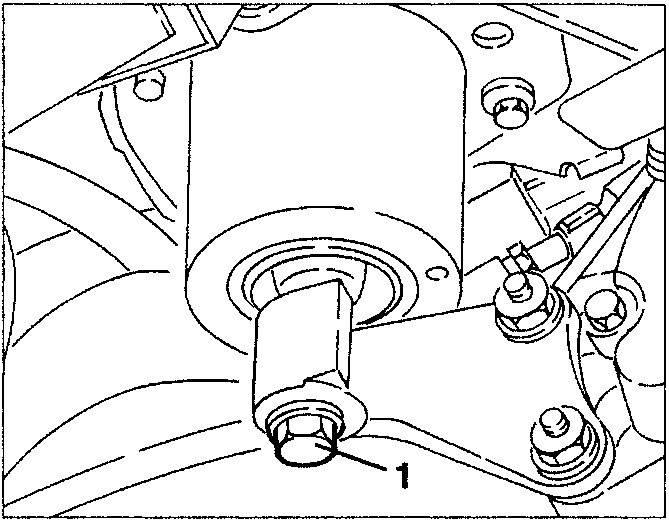

1. Slacken the screw fastening the power unit support on the gearbox side.

• Slightly lower the power unit with the hydraulic jack.

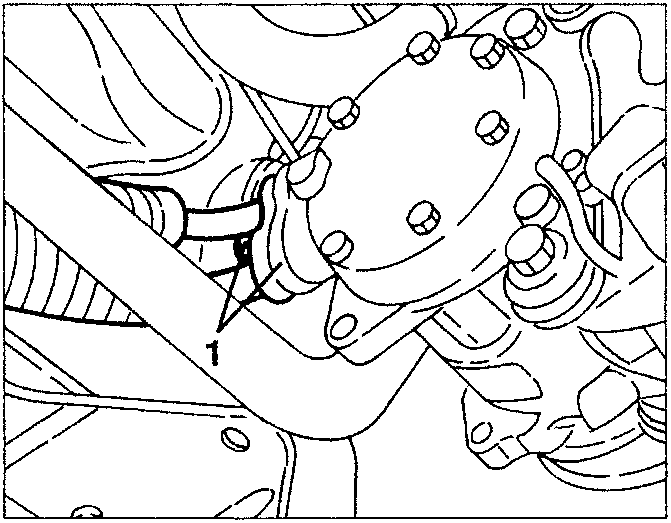

1. Slacken the fastening screw and disconnect the coolant inlet and outlet pipe flange from the conditioner compressor.

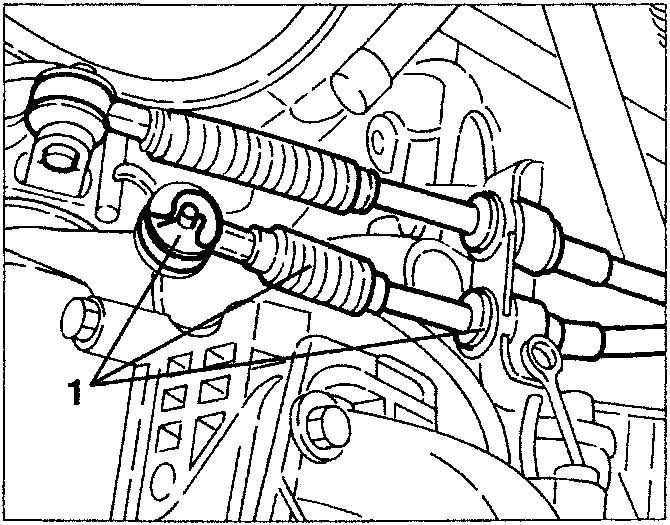

1. Remove the safety catches and disconnect the gear control cables.
