10 Engine – 3.0 V6Description · page 5 of 8

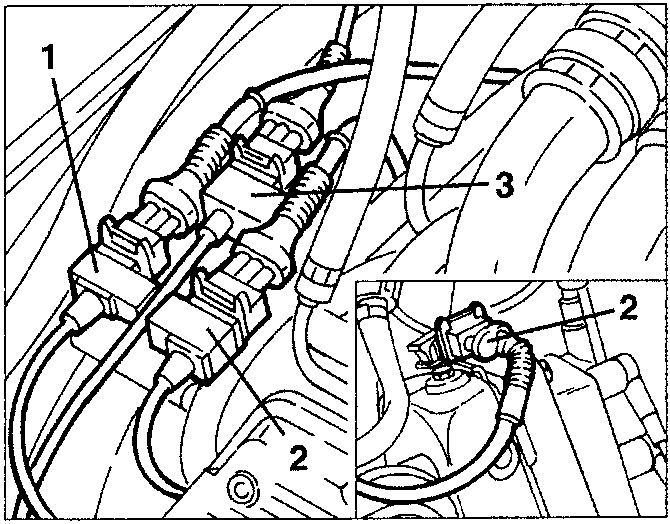

1. Disconnect the timing sensor connection.
2. Disconnect the pinging sensors connections.
3. Disconnect the rpm and timing sensor connection.

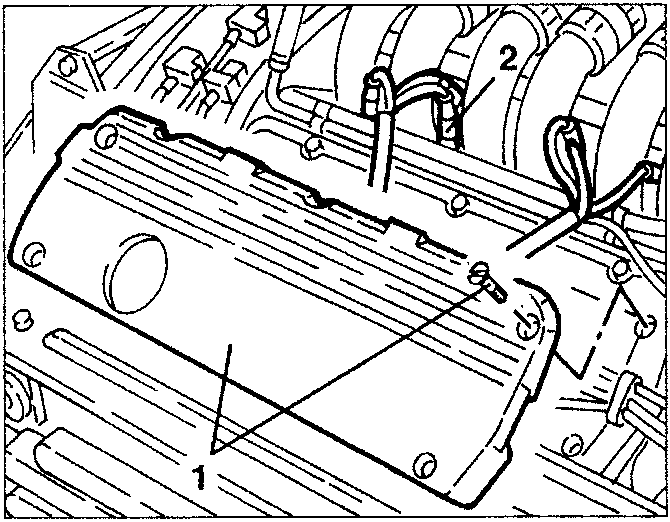

1. Slacken the four screws fastening and remove the left hand cylinder head.
2. Disconnect the connections from the electroinjectors.

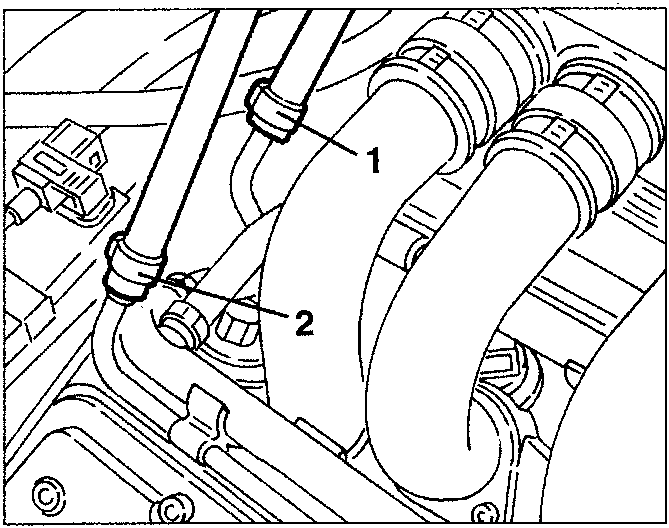

1. Disconnect the fuel inlet pipe from the distributor manifold.
2. Disconnect the fuel return pipe from the distributor manifold.

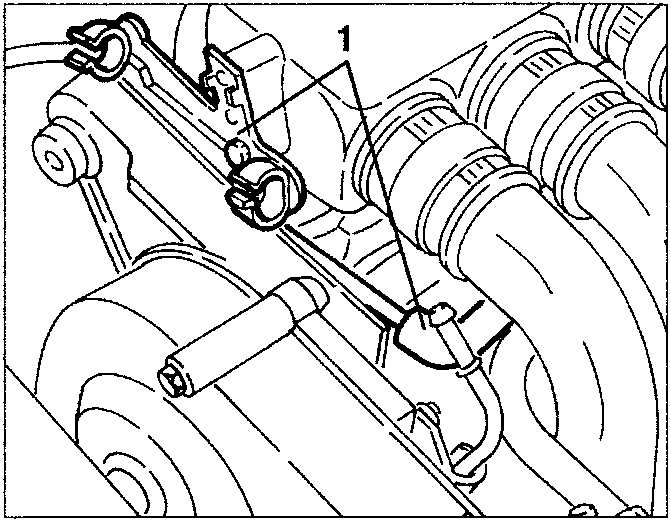

1. Disconnect the fuel vapour recirculation pipe and remove it, after removing the earth cable connection bracket from the box.

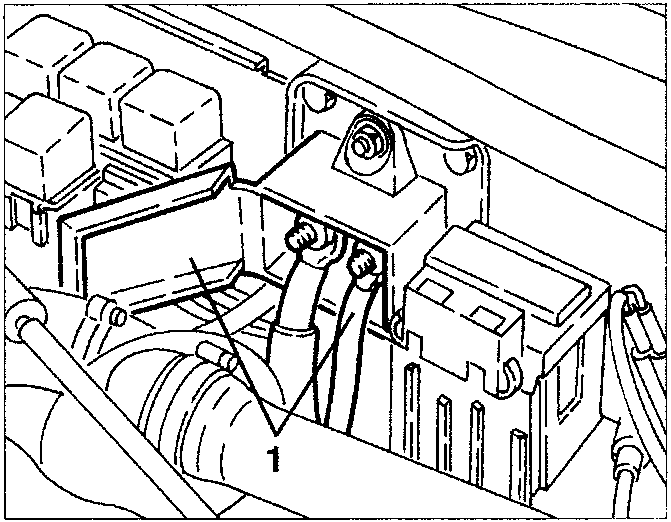

1. Open the cover of the terminal block and disconnect the electrical connections of the starter motor and alternator.

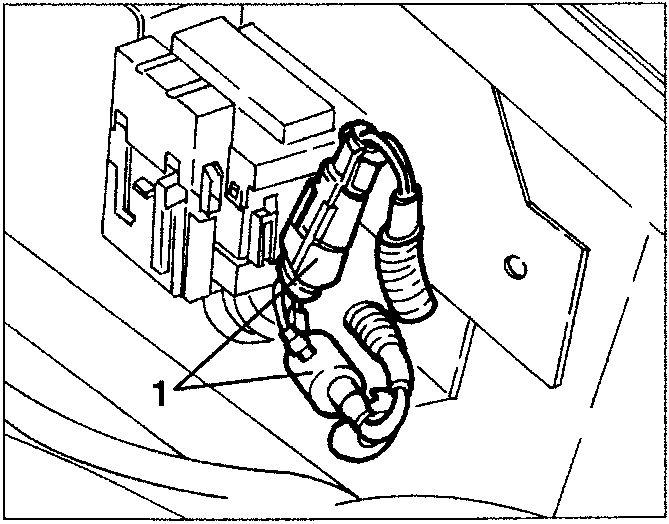

1. Disconnect the two electrical connections of the lambda sensor.
