Description (page 3 of 8)

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

Removal/Refitting (V6)

10 Engine – 3.0 V6Description · page 3 of 8

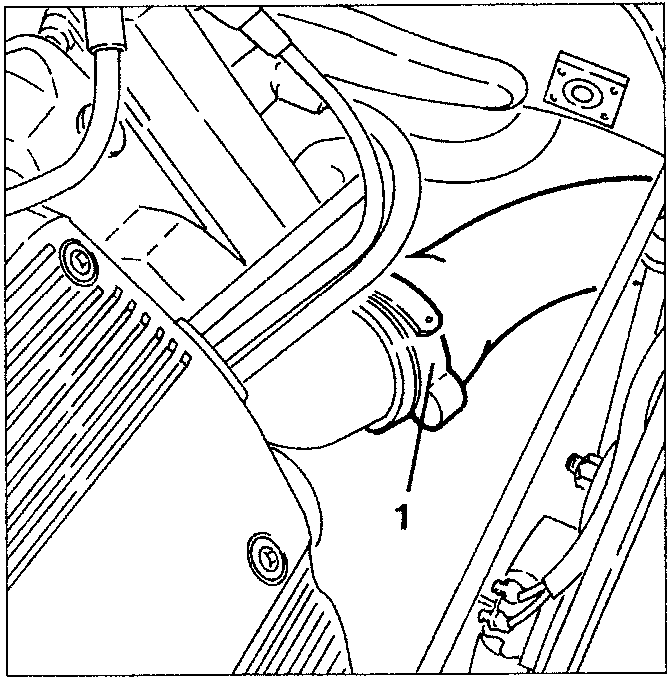

1. From the ignition coil support disconnect the coolant delivery sleeve to the radiator.

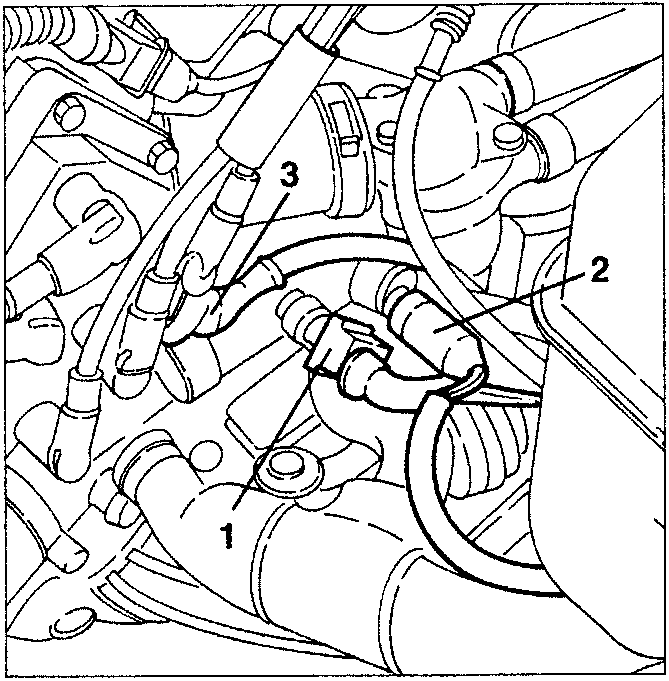

1. Disconnect the electrical connection from the coolant temperature sensor (NTC).
2. Disconnect the electrical connection from the coolant temperature gauge transmitter and max. temperature warning light contact.
3. Disconnect the electrical connection from the ignition coils.

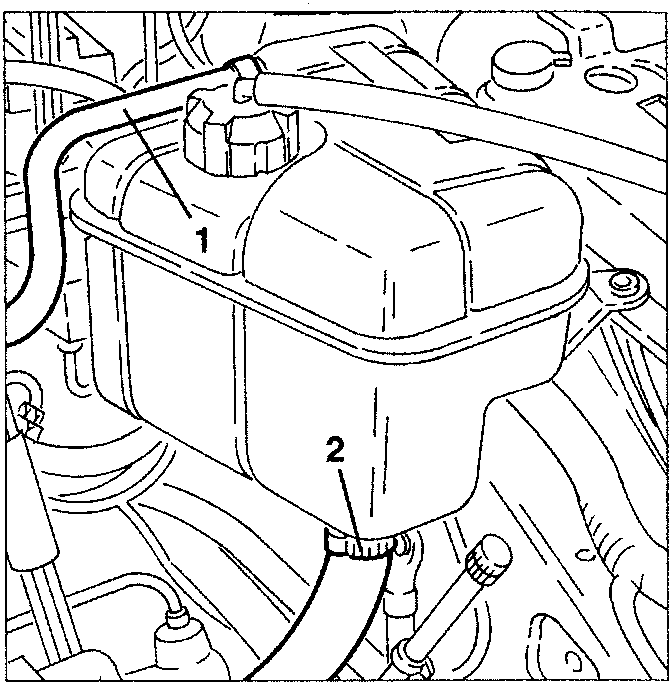

1. Disconnect the coolant return and air relief pipe from the header tank.
2. Disconnect the system supply pipe from the header tank.

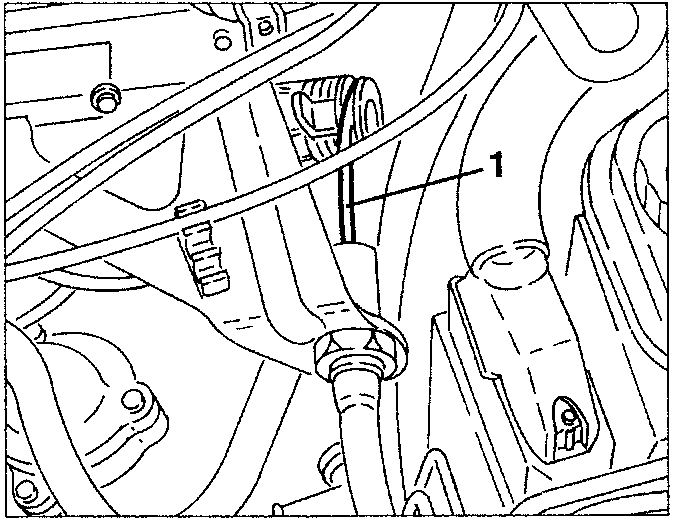

1. Disconnect the accelerator cable from the throttle body.

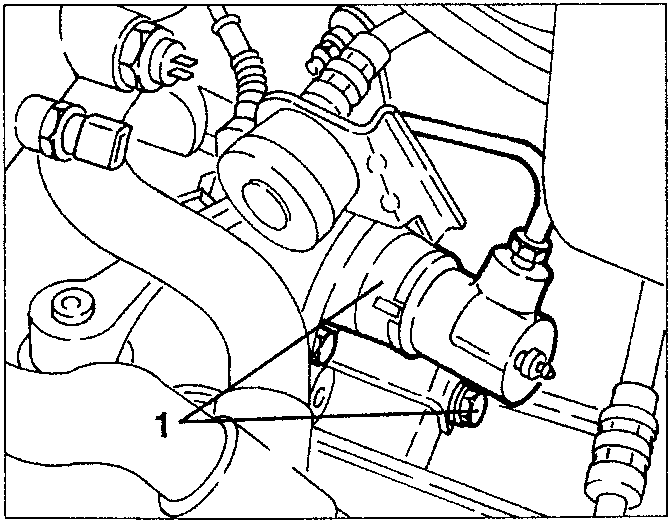

1. Slacken the three screws fastening the clutch control cylinder support bracket, then move the unit aside without disconnecting the piping.
