Description (page 8 of 8)

WARNING: The hydraulic jack must have a capacity of at least 1000 kg. Free the electrical wires from any cable clamps and move them away from the engine to prevent them from getting caught in the engine when it is removed.

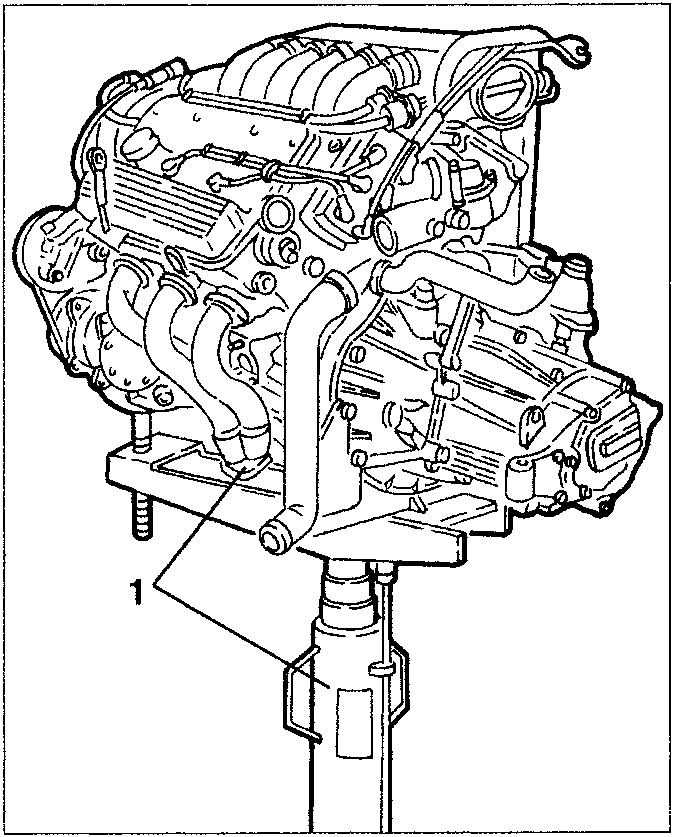

1. Lower the hydraulic jack completely and remove the power unit from the engine compartment.

WARNING: When lowering the car make sure that there are no cables or pipes still connected. Take due care not to damage any components.

• Support the power unit with a hydraulic hoist as well as with the hydraulic jack used for removal.

WARNING: For moving the power unit, use a hydraulic hoist after freeing it from the hydraulic jack.

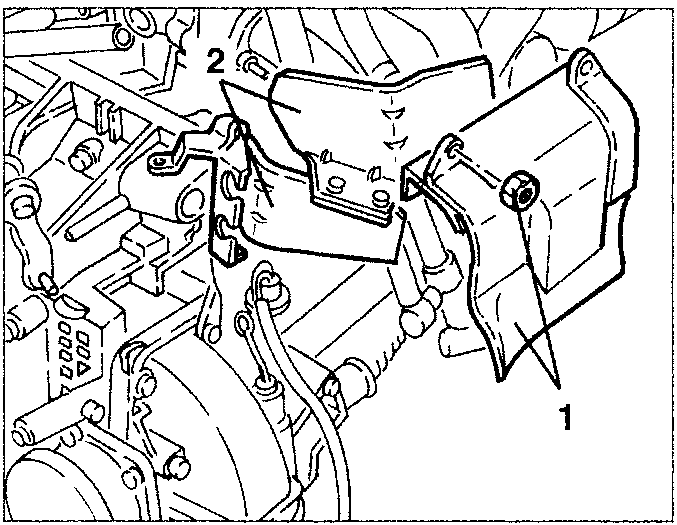

1. Slacken the two fastening nuts and remove the heat shield from the starter motor.
2. Slacken the fastening screws and remove the gearshift control cables support bracket and heat shields.

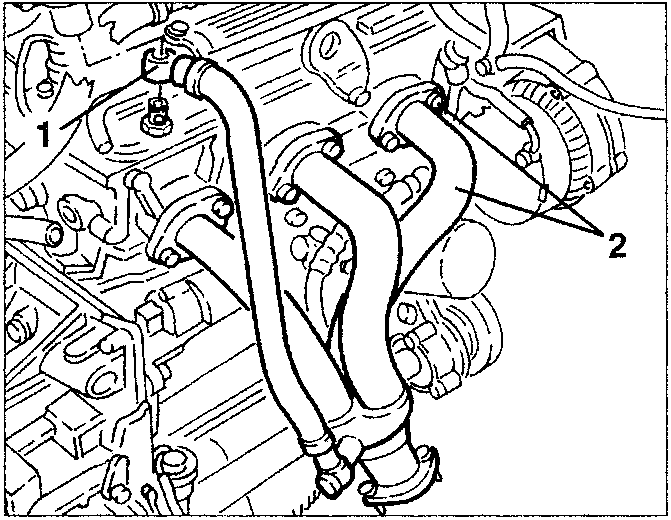

1. Disconnect the exhaust gas takeoff pipe connection from the E.G.R. valve.
2. Slacken the fastening nuts and remove the right- hand exhaust manifold.
3. - Remove the corresponding seals.

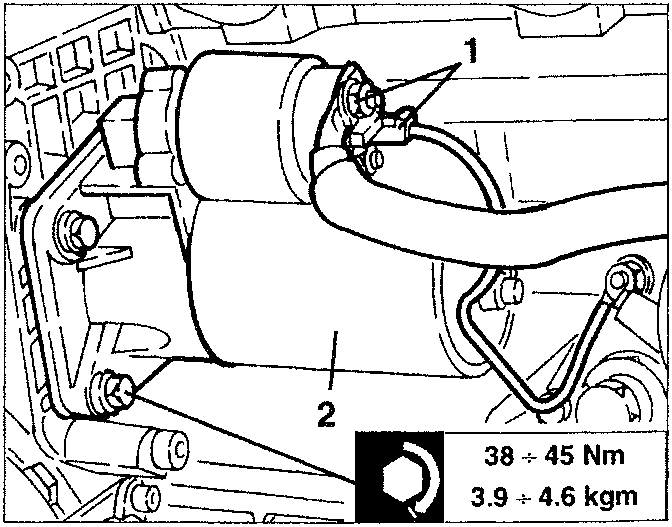

1. Disconnect the electrical connections from the star- ter motor.
2. Slacken the three fastening screws and remove the starter motor.

38 ÷ 45 Nm
3.9 ÷ 4.6 kgm
