10 Engine – 3.0 V6Description · page 4 of 8

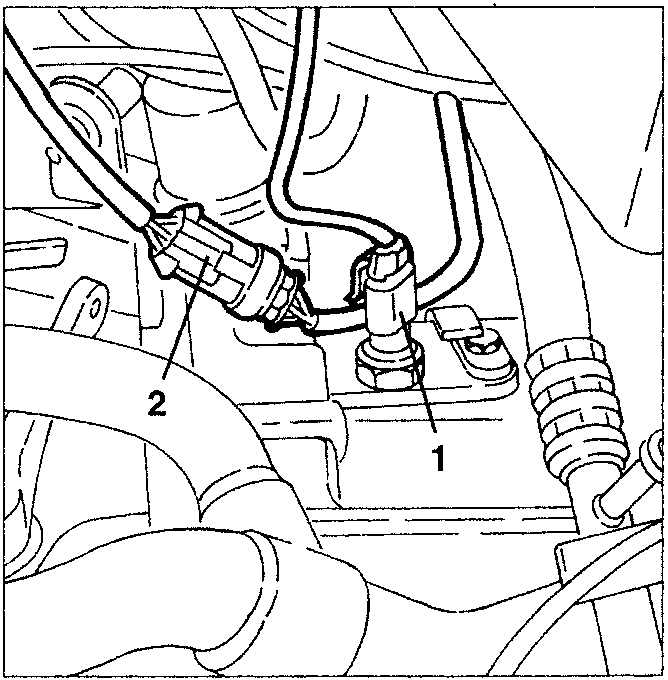

1. Disconnect the electrical connection from the reverse gear switch.
2. Disconnect the electrical connection from the mileage recorder sensor.

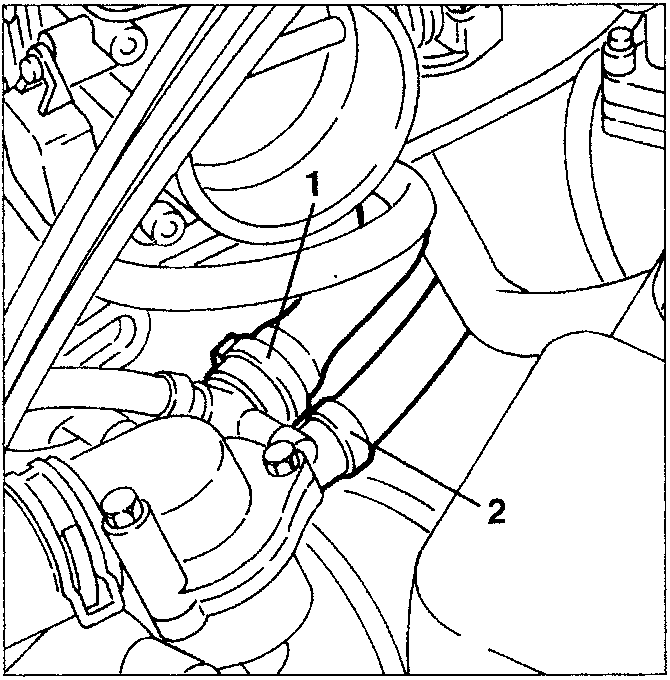

1. Coolant delivery pipe to the heater
2. Coolant return pipe from the heater

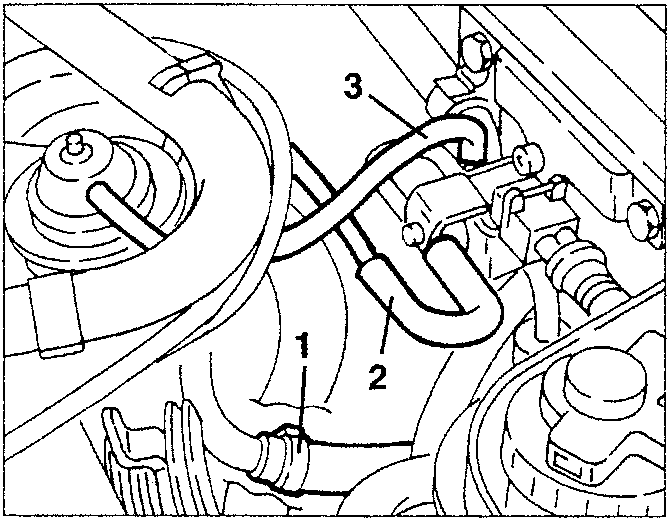

1. Disconnect the servobrake vacuum takeoff pipe.
2. From the pneumatic signal modulation solenoid valve disconnect the vacuum signal delivery pipe to the E.G.R. valve.
3. From the pneumatic signal modulation valve disconnect the vacuum takeoff pipe from the intake box.

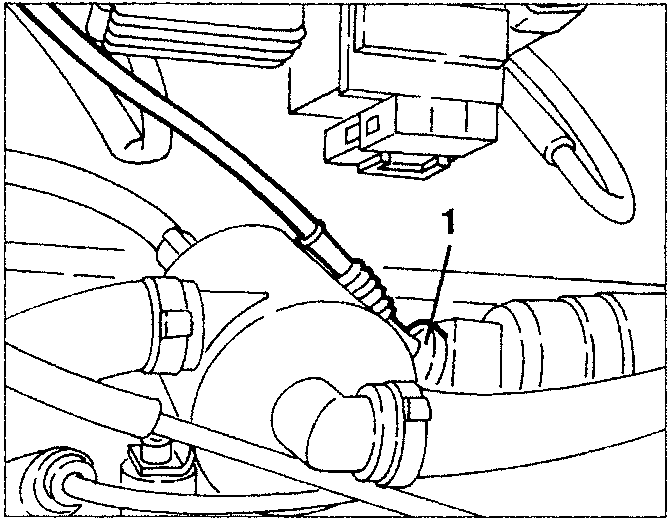

1. Disconnect the electrical connection from the constant idle speed actuator.

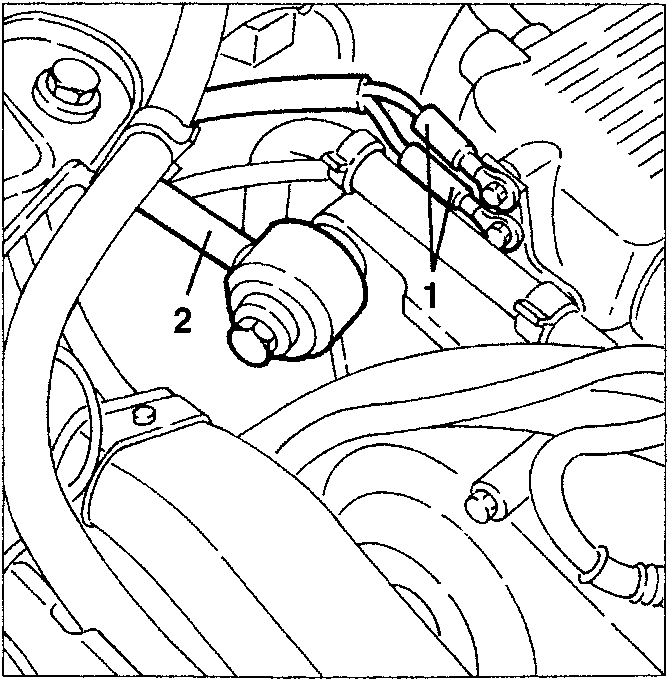

1. Disconnect the earth cables from the intake box.
2. Remove the engine stay connecting rod.
