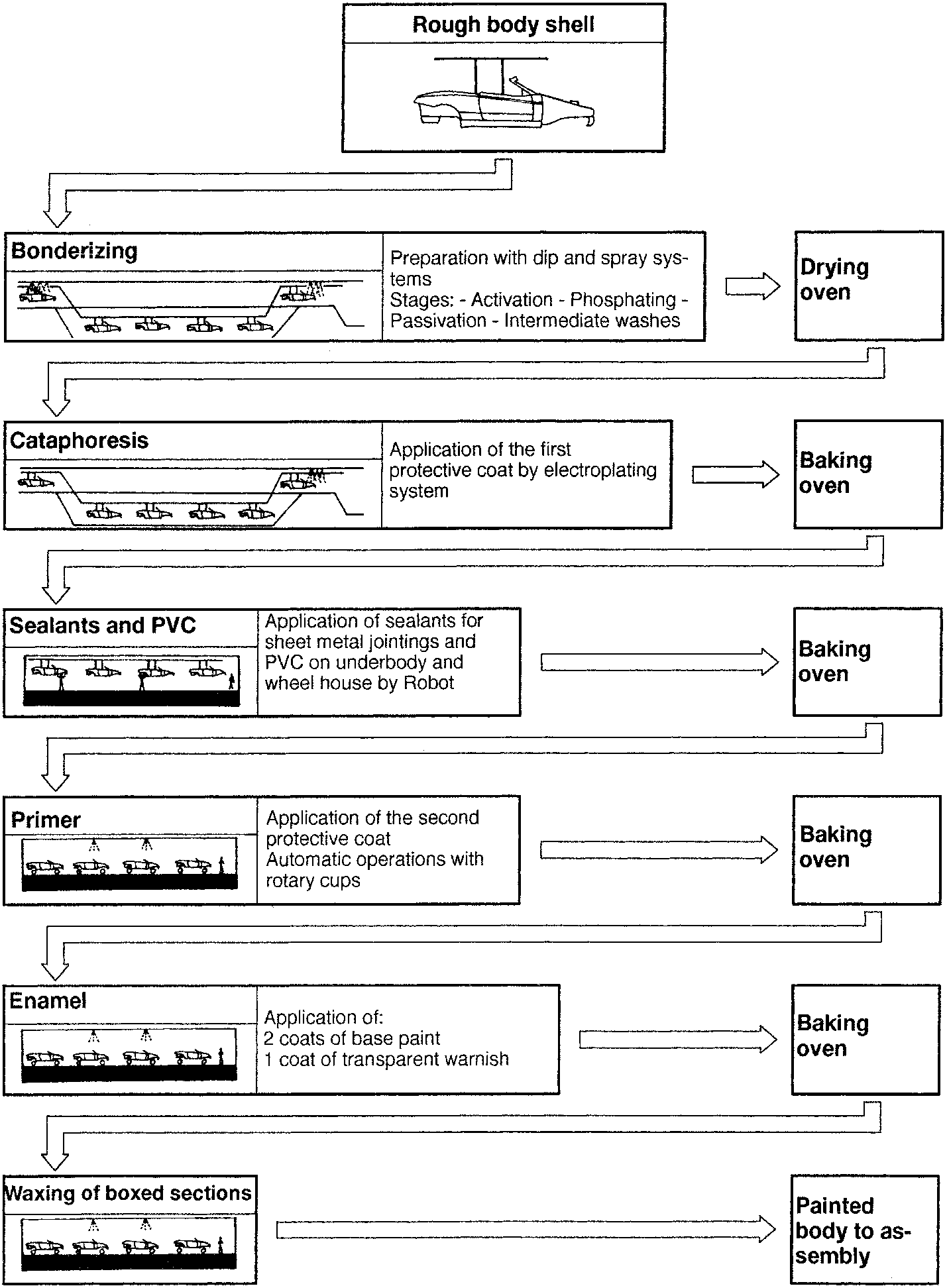

Body painting cycle in production

BODY PAINTING CYCLE IN PRODUCTION

Bonderizing Preparation with dip and spray systems Stages: - Activation - Phosphating - Passivation - Intermediate washes

Drying oven

Cataphoresis Application of the first protective coat by electroplating system

Baking oven

Sealants and PVC Application of sealants for sheet metal jointings and PVC on underbody and wheel house by Robot

Baking oven

Primer Application of the second protective coat Automatic operations with rotary cups

Baking oven

Enamel Application of: 2 coats of base paint 1 coat of transparent warnish

Baking oven

Waxing of boxed sections

Painted body to assembly
