70 BodyworkDeadening, sound absorbing, soundproofing and expanded polyurethane foam products · page 1 of 2

DEADENING, SOUND ABSORBING, SOUNDPROOFING AND EXPANDED POLYURETHANE FOAM PRODUCTS

DEADENERS

Materials applied to the sheet metal by melting or gluing: their purpose is to deaden vibration resonance waves.

SOUND ABSORBING MATERIALS

Panels on the roof panel, under the bonnet, parcel shelf and inside the engine compartment. The purpose of these panels is to isolate the passenger compartment of the car from noise coming from the luggage compartment, engine compartment and from outside. They are made from porous materials such as textile and polyurethane fibres and are rested or glued on the surfaces to be treated.

SOUNDPROOFING MATERIALS

Coatings applied on the floor, pedal unit and bulkhead between the engine and passenger compartments.

FOAMS

The foams are polyurethane. They are used to isolate the passenger compartment from the mechanical units and neutralise the transmission of noise.

DEADENERS AND EXPANDED POLYURETHANE FOAM

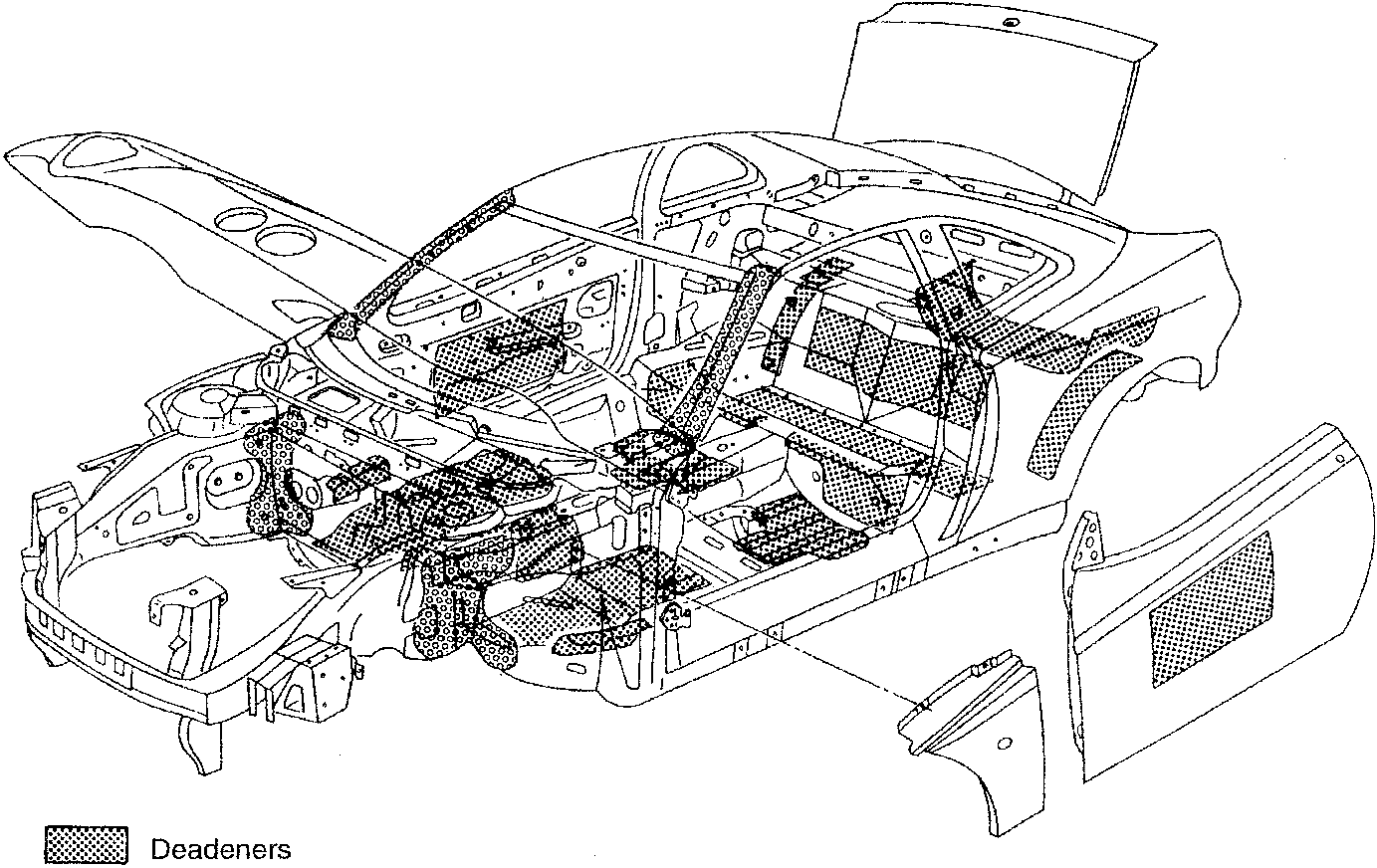

Car body with soundproofing materials shown as shaded areas.
Deadeners (shaded pattern) and Foams (cross-hatched pattern).
  1. Deadeners
  2. Foams
