Protections

PROTECTIONS

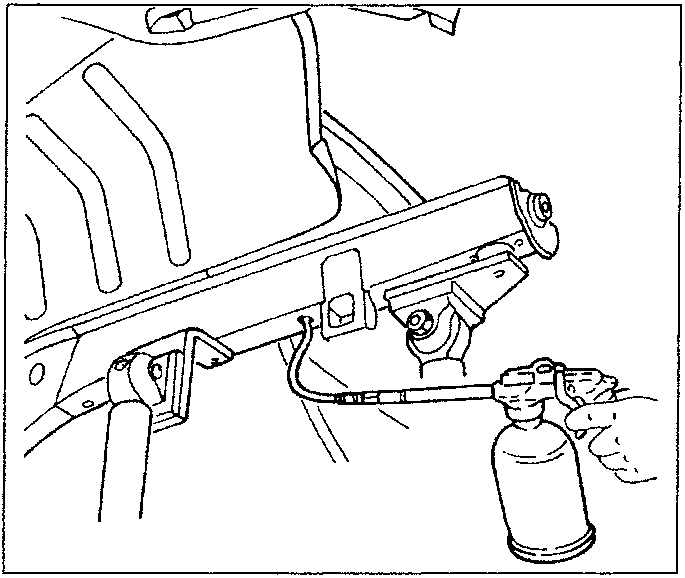

a. Apply rust proofing to components after MIG welding and oxy-acetylene torch welding.

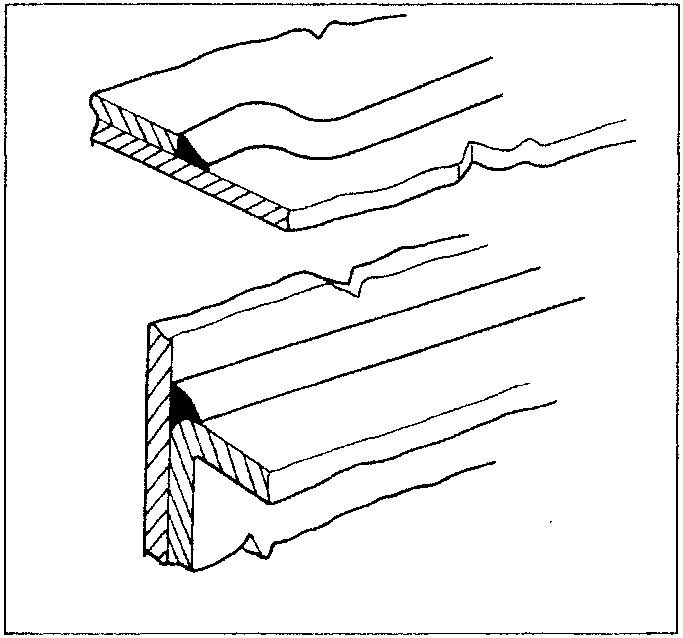

b. Apply the specified sealant on the joints and overlaps of the sheets, seamlessly, along the entire profile, as shown below.

CAUTION: Avoid applying excess sealant and prevent areas not involved in sealing from coming into contact with the sealant.

c. Proceed with foaming, painting and waxing (see specific paragraphs).

WARNINGS FOR OPERATORS

PREVENTION OF ACCIDENTS

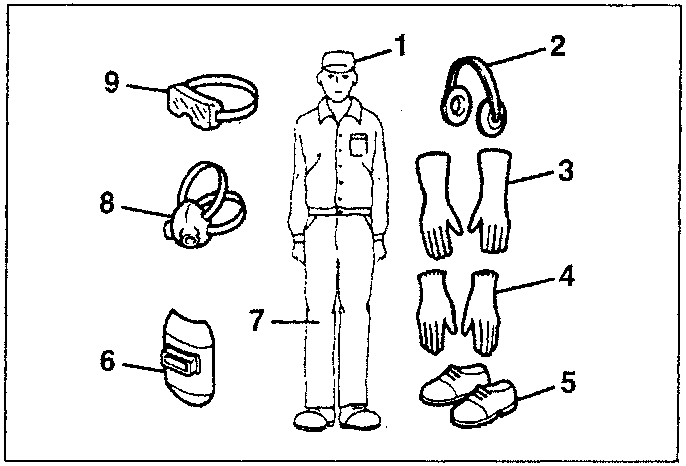

a. Protective clothing.

– Depending on the nature of the work to be carried out, make sure that protective goggles, ear muffs and dust masks are worn. As a general rule, work clothes, gloves, safety shoes and cap should be worn.

1. Cap
2. Ear muffs
3. Welding gloves
4. Gloves
5. Safety shoes
6. Protective shield
7. Overall
8. Dust mask
9. Goggles

b. Safety supports.

– After raising the vehicle ensure that safety supports are adequately positioned. Refer to "LIFTING AND TOWING POINTS" for the location of bearing points.

c. Inflammable materials.

– Ensure that the earth lead is disconnected from the battery before undertaking repairs.

– In the event of welding near the fuel tank, remove it from its housing and plug the filler neck.

– Plug the open ends of the fuel and brake fluid hoses when they are disconnected.

– Remove the electronic control units before carrying out electric welding on the vehicle.
