Identification labels

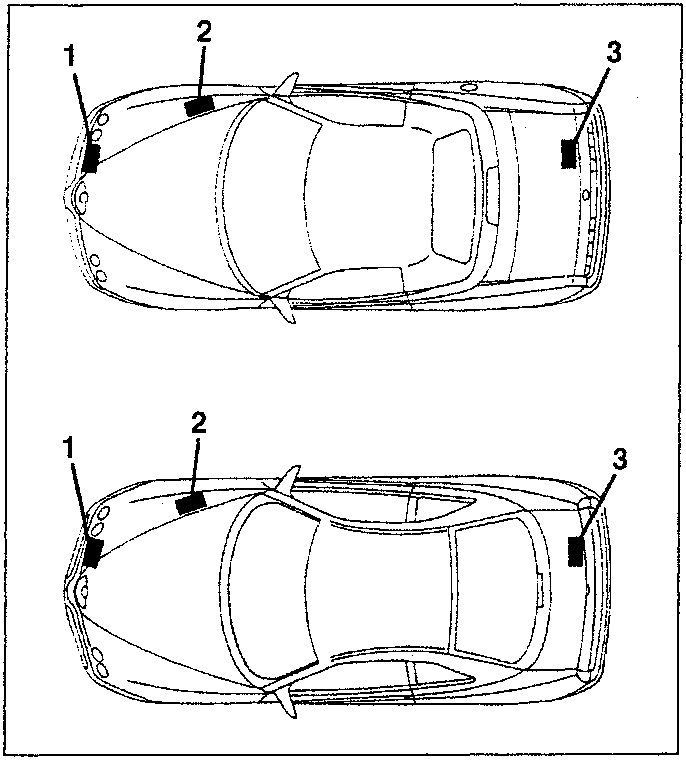

IDENTIFICATION LABELS

1. Identification data
2. Body marking
3. Bodywork paint label

• For the identification codes see: GROUP 00.

Closely adhere to the regulations in force on the subject of towing.

CAUTION: Before towing the ignition key of the towed car should be turned to MAR and then returned to STOP without removing it; this will prevent the steering from locking.

Also bear in mind that when the car is towed, the vacuum is not created in the servobrake, therefore considerably more effort on the pedal is required during braking.

In addition, when the engine is not running, the power steering circuit is not operational, therefore more effort is required to turn the steering wheel.

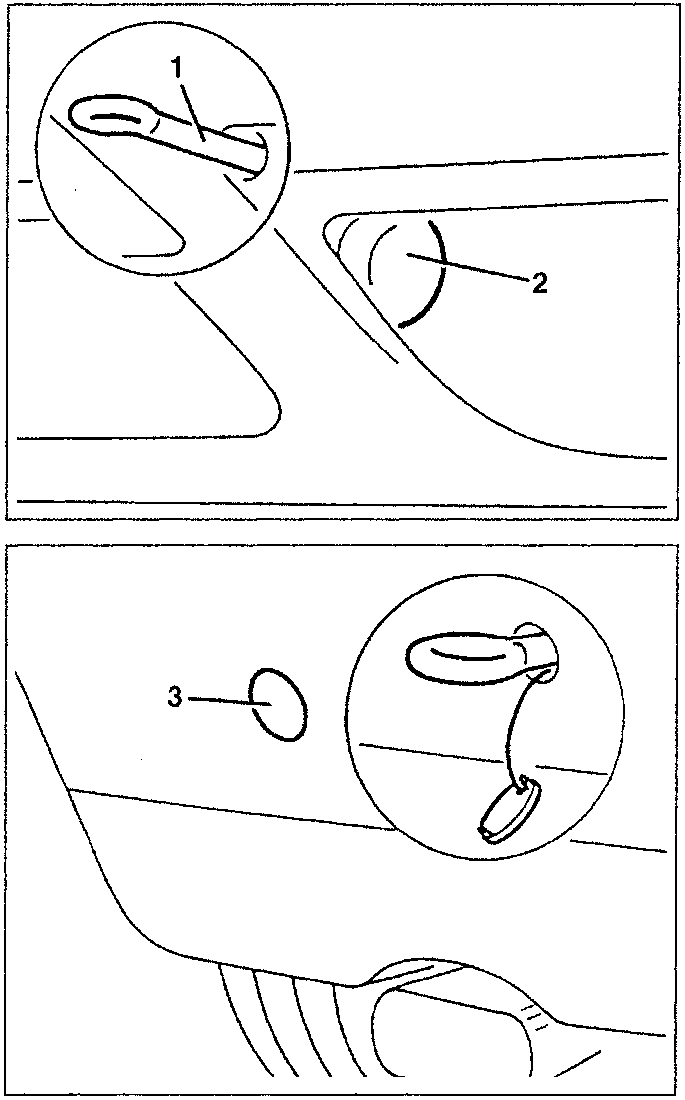

1. Tow hitch
2. Front bumper slot
3. Rear bumper cover

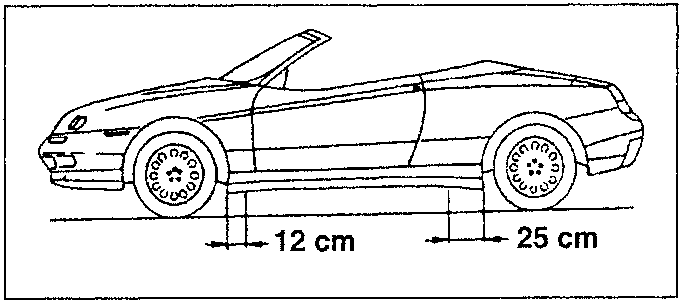

CAR LIFTING POINTS

With arm hoist or workshop jack.

• The car should be lifted setting the ends of the arms or the jack in the areas shown.

CAR TOWING POINTS

The car has two threaded couplings, one at the front and one at the rear, in which to screw the hitch which is to be found in the tool bag, in the luggage compartment.
