Boot lid

BOOT LID

REMOVAL/REFITTING

• Open the boot lid.

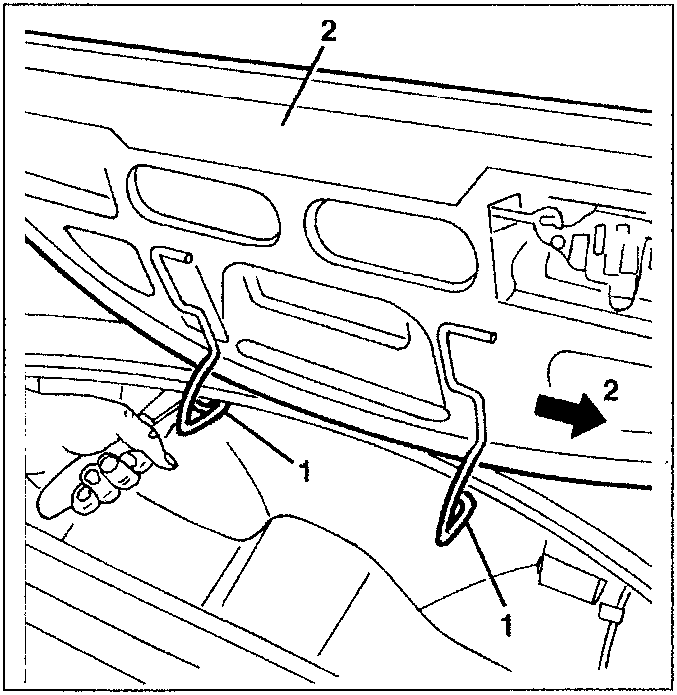

1. Remove the return springs from the arms of the lid.
2. Withdraw the arms from their housings and remove the boot lid.

1. 1 Return spring
2. 2 Arm

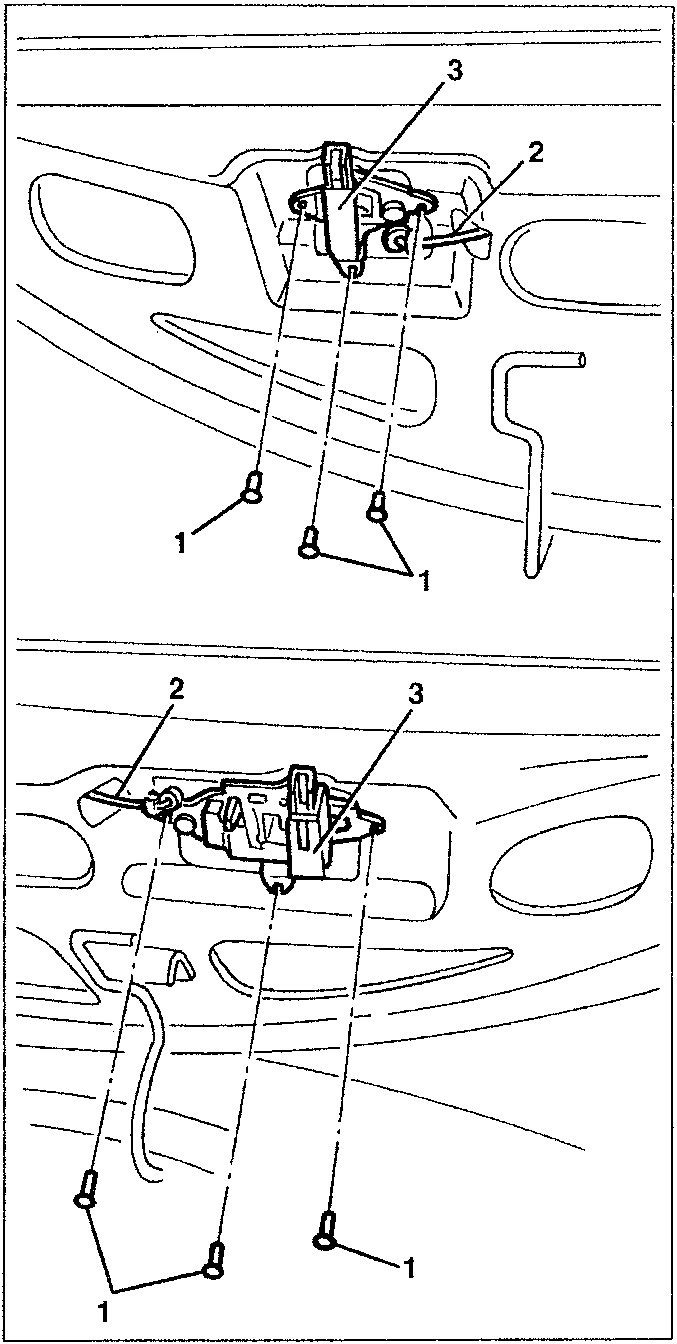

1. If necessary, remove the rivets fastening the closing devices.
2. Disconnect the connection rod from the control pins.
3. Remove the closing devices.

1. 1 Closing device
2. 2 Connection rod
3. 3 Control pin

• If necessary, act on the torsion spring which makes it possible to open the boot lid, remove the hood cover inner partition (see specific paragraph).
