Windscreen frame seal

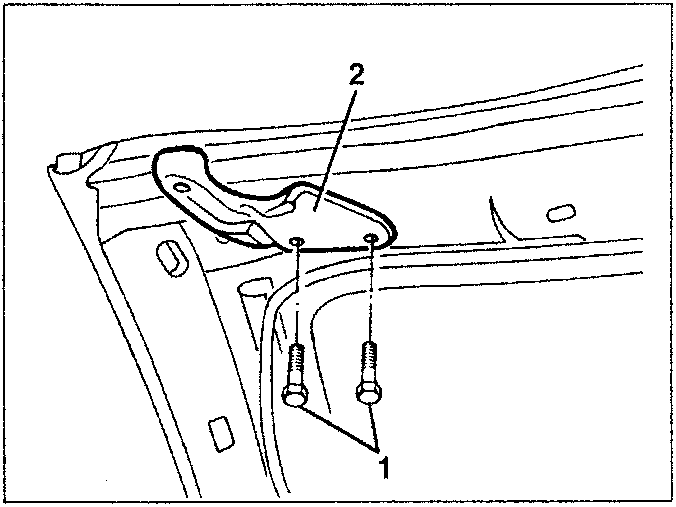

1. If necessary slacken the two screws fastening each hood connection bracket to the windscreen crossmember.
2. Remove the two hood connection brackets.

When refitting the brackets, adjust hood closing (see specific paragraph).

Refit the upper windscreen trim reversing the sequence followed for removal.

WINDSCREEN FRAME SEAL

REMOVAL / REFITTING

• Remove the upper windscreen trim (see specific paragraph).

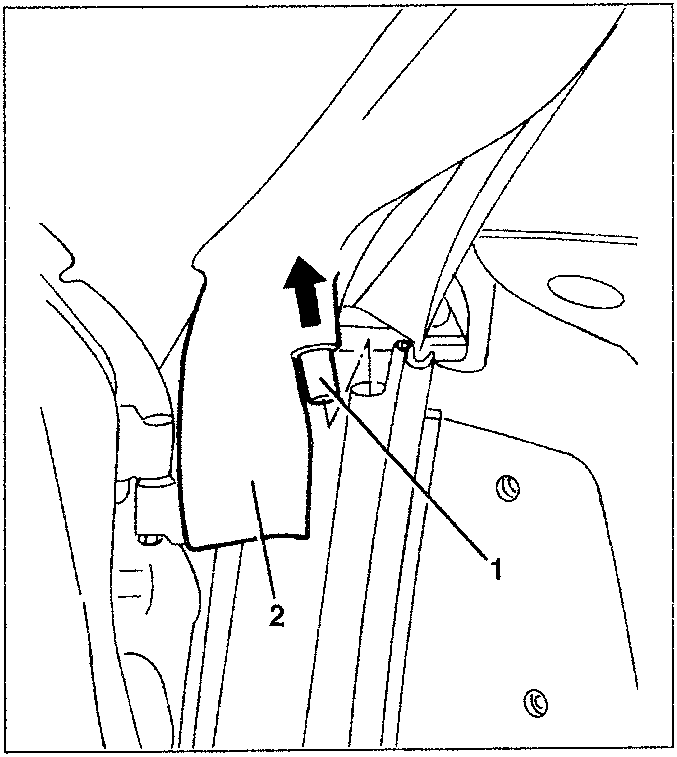

1. Remove the jointing pin from the door moulding.
2. Detach the bi-adhesive lower edge.

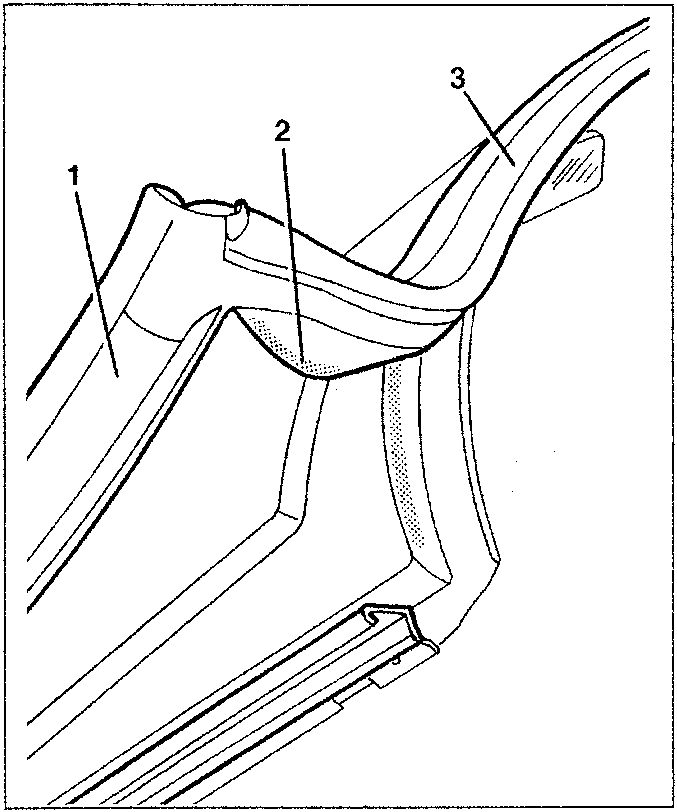

1. Prise the seal off the profile on the pillars.
2. Detach the bi-adhesive front edge from the upper windscreen crossmember.
3. Remove the seal releasing it from the profile of the upper crossmember.

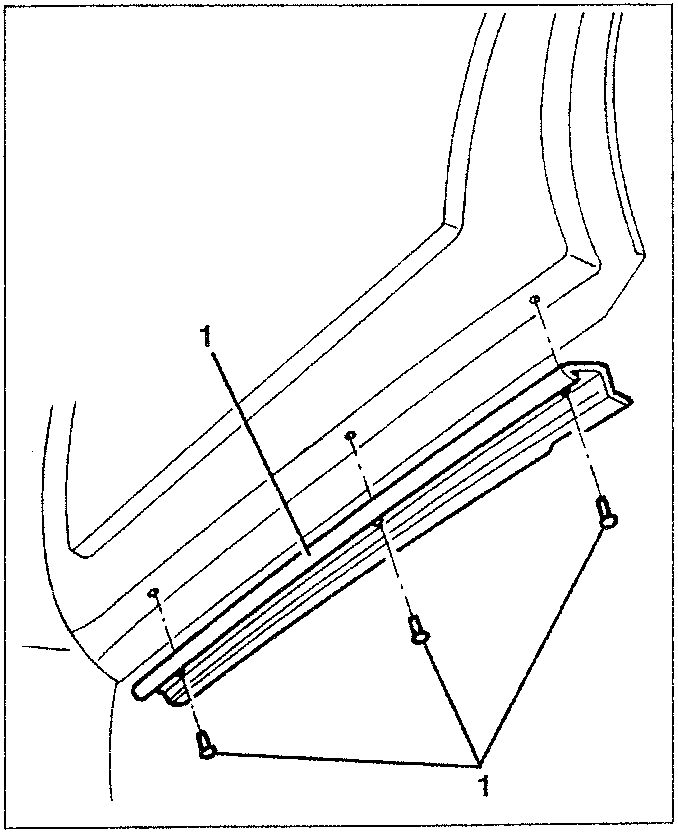

1. If necessary, remove the three rivets and remove the seal retainer profile from the pillar.
