70 BodyworkLUGGAGE NET ('98 versions)

LUGGAGE NET ('98 versions)

REMOVAL/REFITTING

  1. Loosen the screws.
  2. Remove the retainers.
  3. Remove the net.

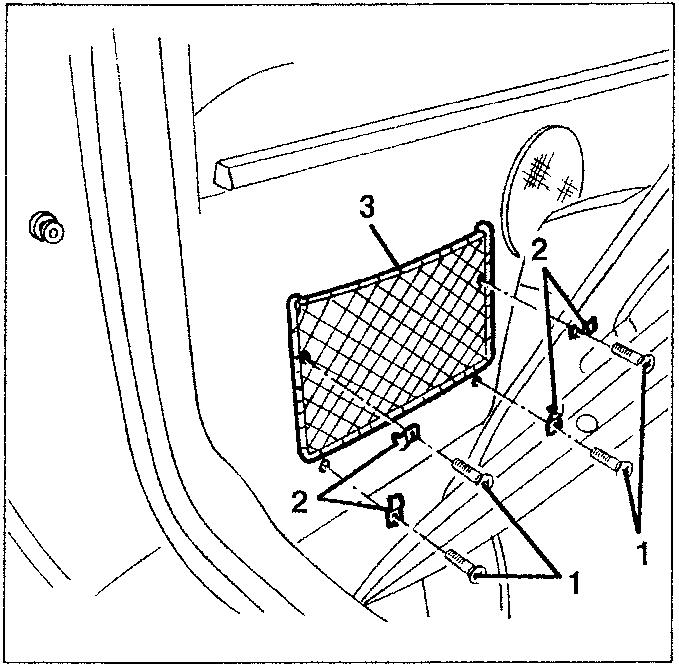

Luggage net removal diagram showing numbered parts 1, 2, 3. Part 1 is a metal bar, part 2 are brackets, part 3 is the net.

Refit the net by reversing the removal sequence.

REAR SHELF TRIM

REMOVAL / REFITTING

  • Remove the hood compartment partition (see specific paragraph).
  1. Using tool 1.823.015.000 prise the six plastic pins and remove the profile.

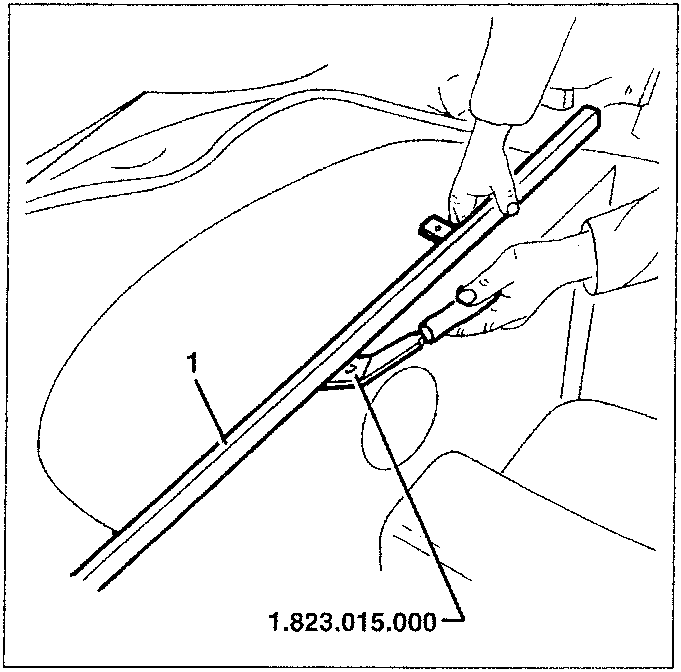

Rear shelf trim removal diagram showing a hand using tool 1.823.015.000 to prise out a long profile (part 1).

Interior trim - SPIDER

  1. Remove the hood switch panel and disconnect the connections.
  2. Using tool 1.823.015.000 prise the ten plastic buttons.
  3. Open the lower edge in velcro.
  4. Open the boot lid and prise the seal.
  5. Remove the shelf trim withdrawing the seat belt loops.

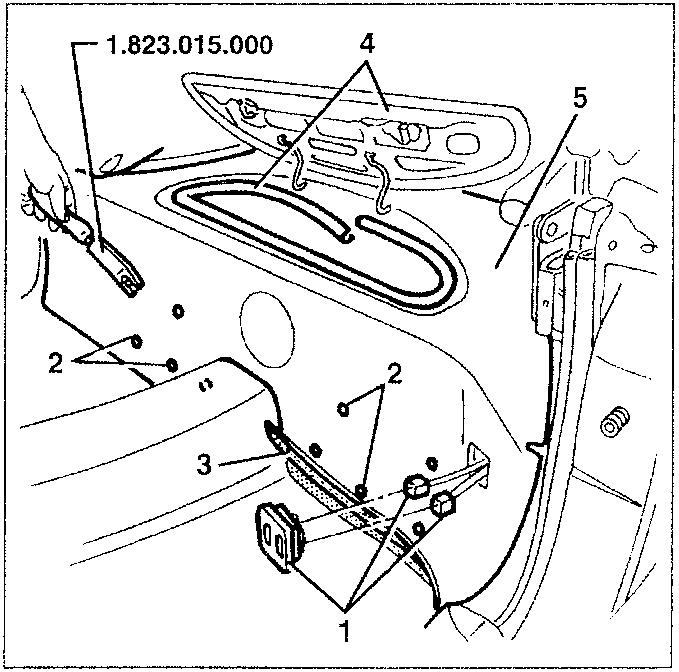

Interior trim removal diagram showing numbered parts 1, 2, 3, 4, 5. Part 1 is a plastic pin, part 2 are brackets, part 3 is a seal, part 4 is a switch panel, part 5 is a boot lid latch. Tool 1.823.015.000 is shown being used to prise the pins.
