Lock (page 2 of 2)

– Move the seat forwards.

1. Release the seat belt from the loop.
2. Remove the plastic cap.
3. Slacken the seat belt lower connection screw.

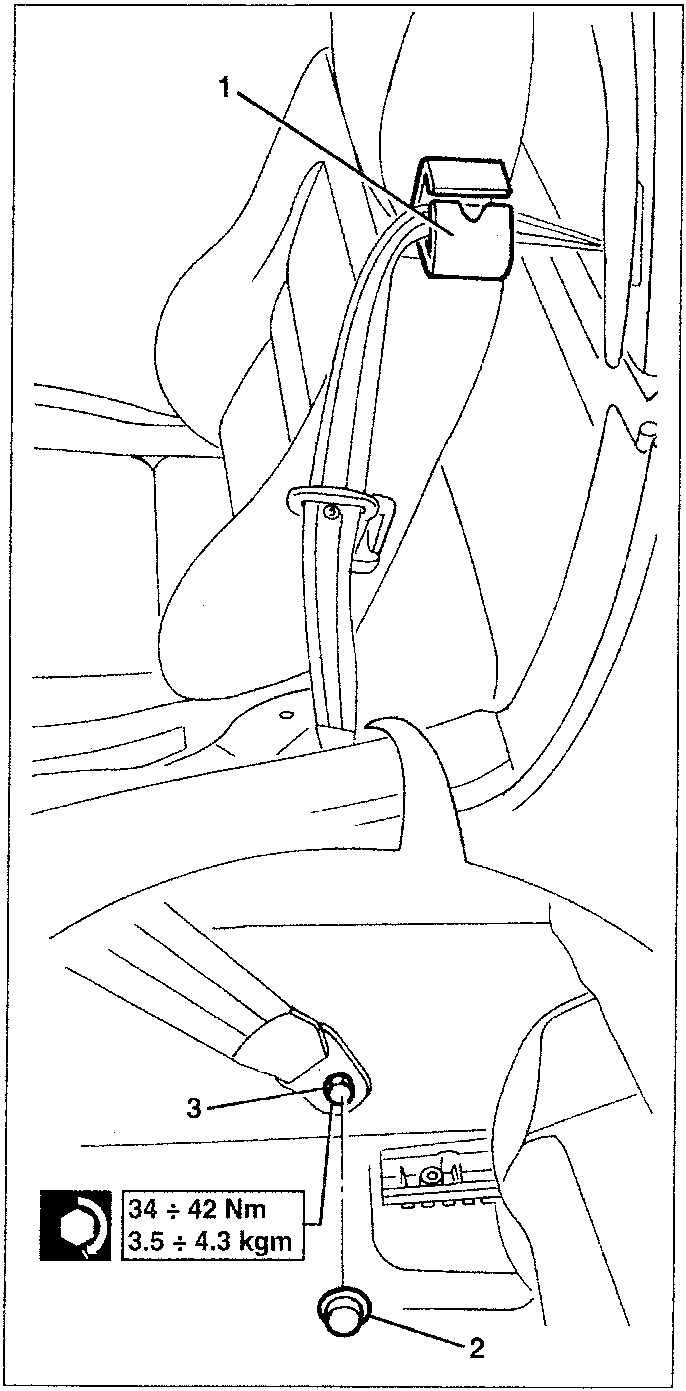

• Pass the seat belt end through the slot in the hood compartment partition.

1. Seat belt lower connection screw
2. Seat belt end
3. Connection screw

34 ÷ 42 Nm
3.5 ÷ 4.3 kgm

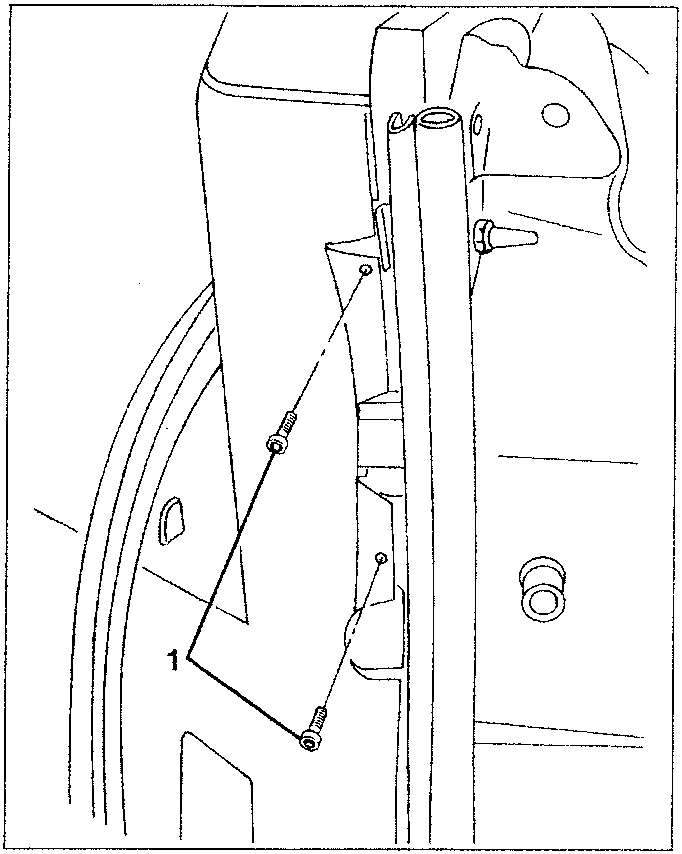

1. Disconnect the two screws fastening the hood compartment partition at each side.

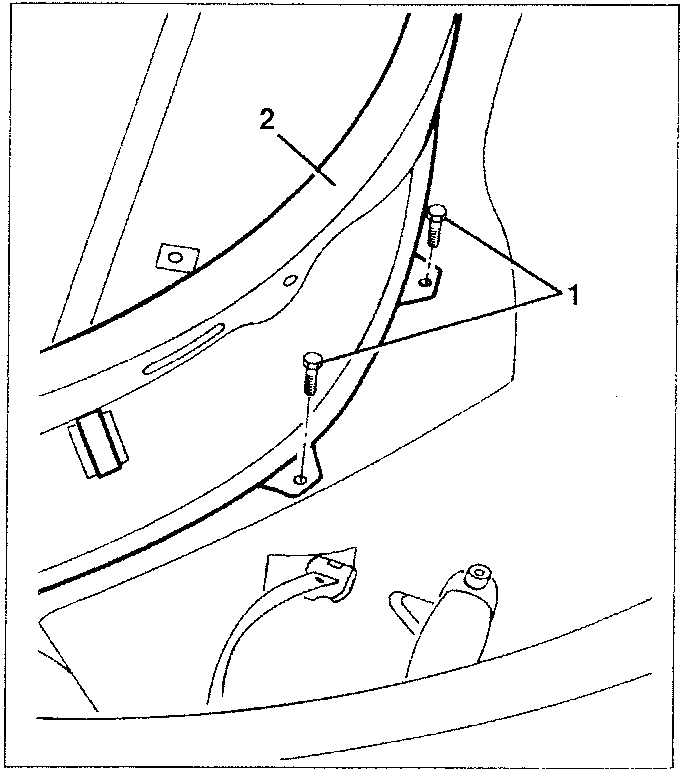

1. Slacken the screws fastening the hood compartment partition brackets to the rear shelf.
2. Remove the hood compartment partition.

Refit the partition reversing the sequence followed for removal.
