Passenger’s grab handle

PASSENGER’S GRAB HANDLE

REMOVAL / REFITTING

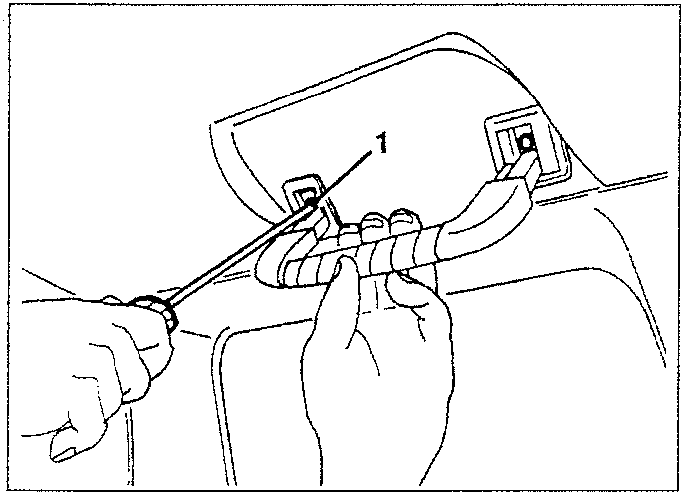

1. Lower the grab handle, slacken the two fastening screws and remove the handle,

1. part name

ROOF LINING

REMOVAL / REFITTING

Take care not to dirty or damage the roof lining.

• Remove the grab handle (see specific paragraph).
• Remove the sun visors (see specific paragraph).

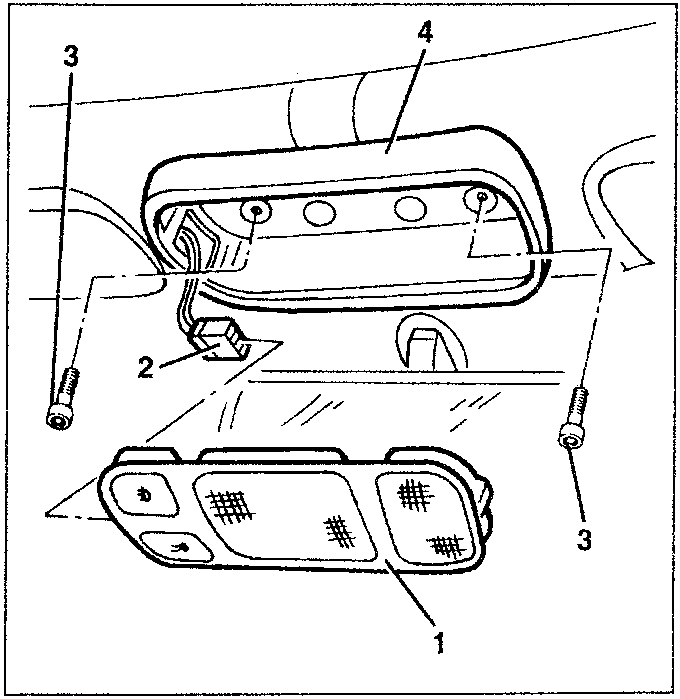

1. Remove the centre roof lamp.
2. Disconnect the electrical connection.
3. Slacken the two fastening screws.
4. Remove the frame.

1. part name
2. part name
3. part name
4. part name

INTERIOR TRIM - GTV

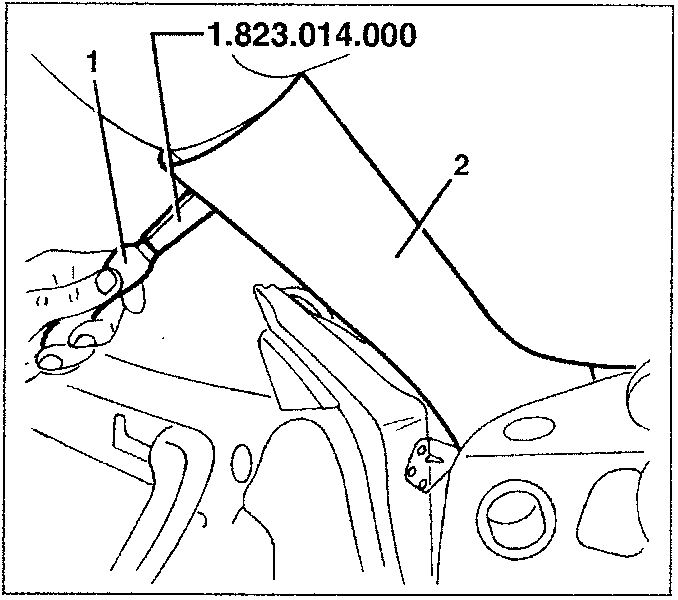

1. Using tool 1.823.014.000 remove the profiles fastening the windscreen pillar trim.
2. Remove the windscreen pillar trims.

1. part name
2. part name

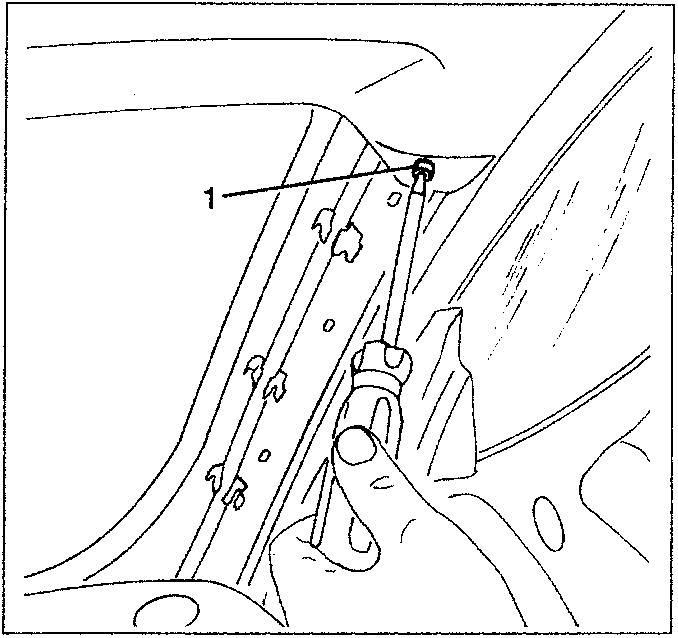

1. On each windscreen pillar slacken the screw fastening the end of the roof lining.

1. part name
