Refitting

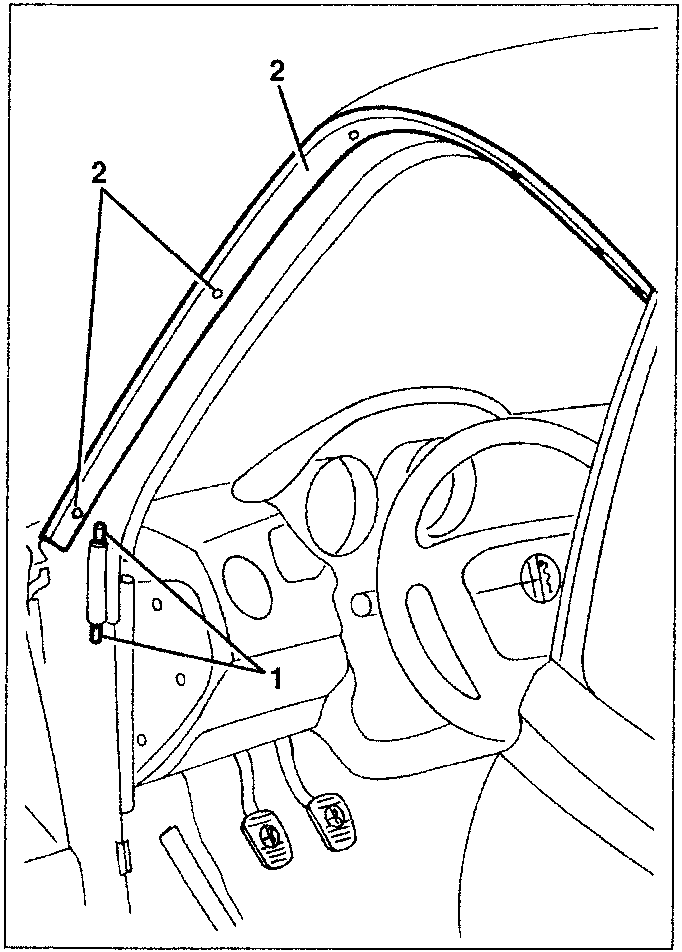

1. If necessary, retrieve the jointing pins.
2. If necessary, eliminate the rivets and remove the upper containment channel.

REFITTING

Refit proceeding as follows:

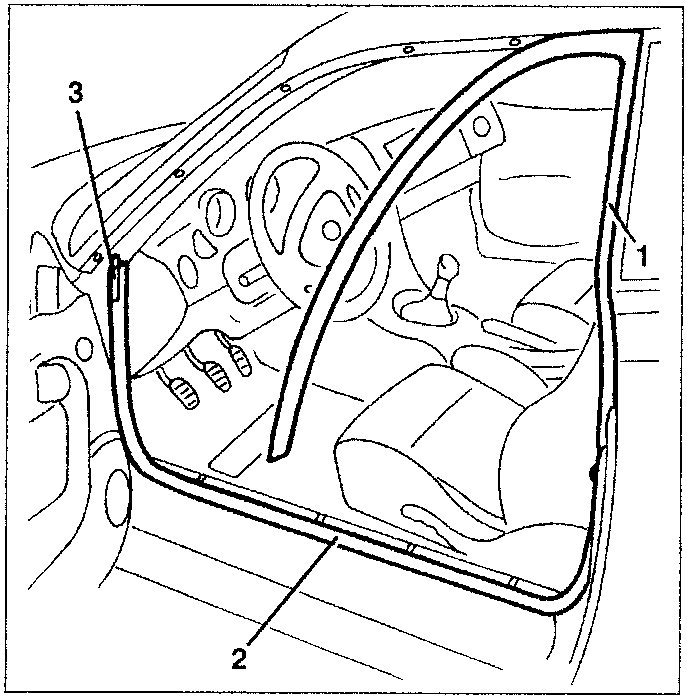

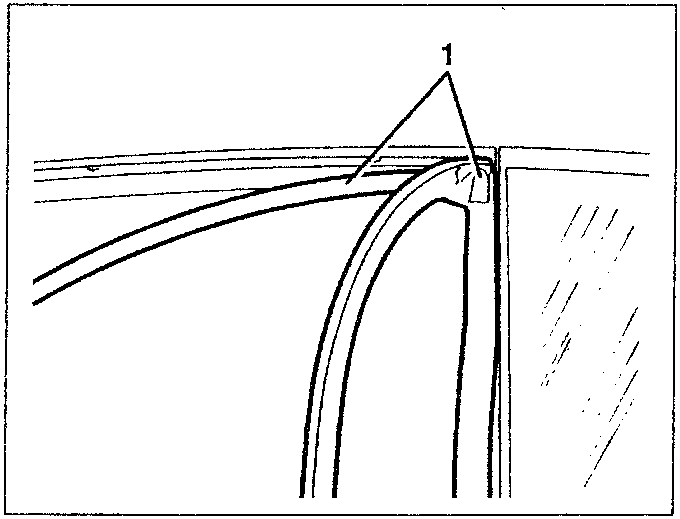

1. Starting from the rear - upper corner of the door surround, position the seal and fit the upper - inner edge.

1. Position the vertical rear side of the seal.
2. Proceed with the lower side.
3. Insert the front edge in the jointing pin.

• Smear the upper outer section and its containment groove with vaseline.

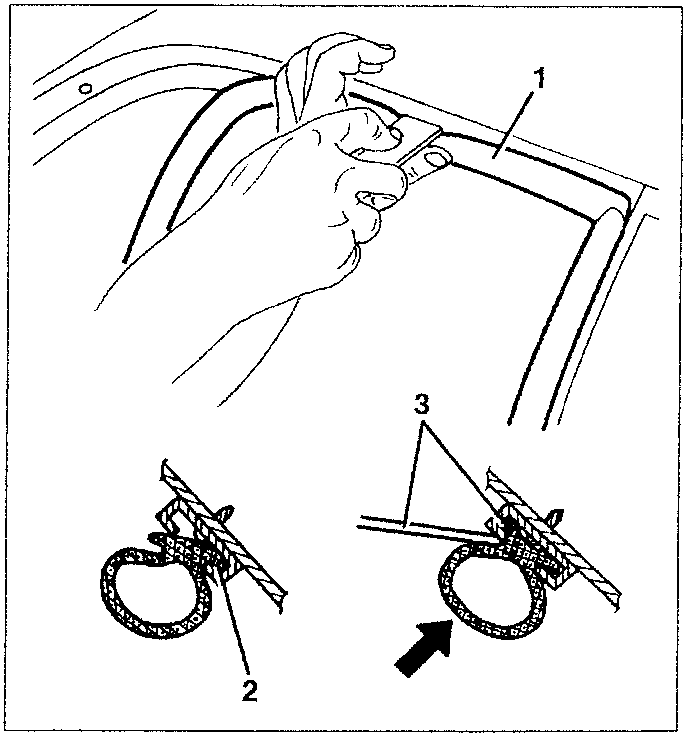

1. Gradually insert the upper outer section in the groove proceeding as described below.
2. Firstly insert the inner profile.
3. Press the seal from below and using a plastic spatula, with profile as illustrated, insert the outer edge in the groove.

• Check the correct positioning of the whole seal and perfect mating with the door.
