PARCEL SHELF

REMOVAL / REFITTING

– Remove the boot inner trim (see specific paragraph).

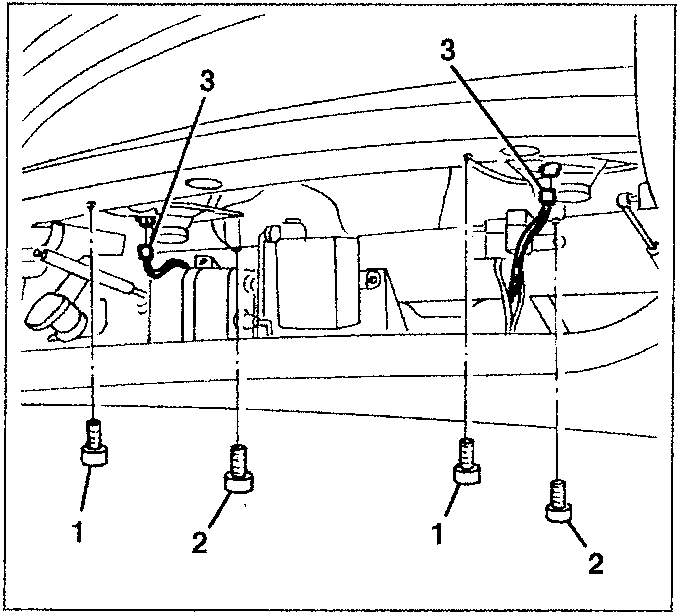

  1. Slacken the two screws fastening the rear of the speaker brackets to the body.
  2. Slacken the two screws fastening the front of the speaker brackets to the body.
  3. Disconnect the speaker connectors.
Diagram showing speaker bracket screws and connectors

– Remove the rear seats (excluding the headrests) (see specific paragraph).

– Remove the side panels (see specific paragraph).

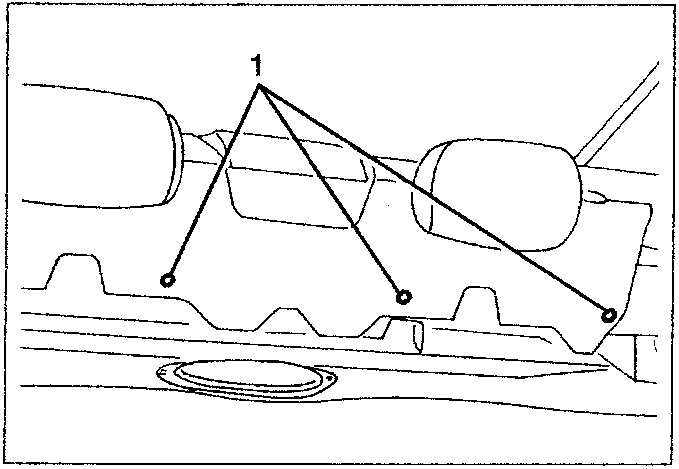

  1. Remove the four plastic nails fastening the parcel shelf from the passenger compartment side.
Diagram showing plastic nails on parcel shelf

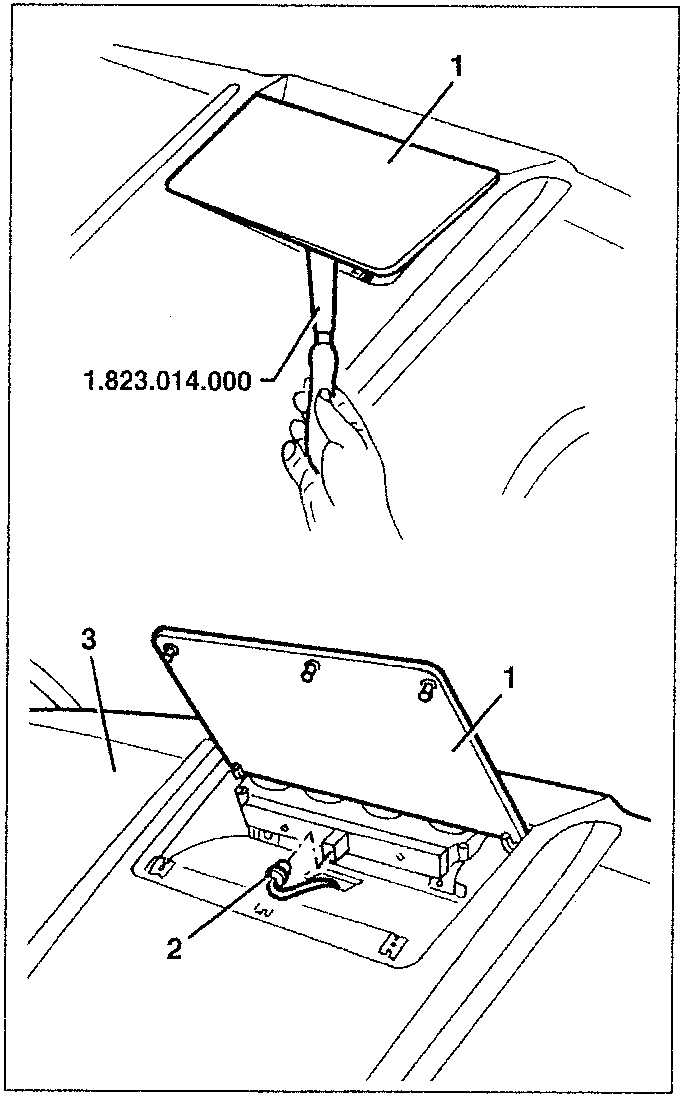

  1. Working from the passenger compartment raise the third stop light cover, using tool 1.823.014.000.
  2. Disconnect the third stop light connection and release it.
  3. Remove the parcel shelf.
Diagram showing removal of third stop light cover and parcel shelf

Refit the parcel shelf reversing the sequence followed for removal.
